Chipset - Intel B760
Sockets Supported - LGA1700
Supported CPU - Intel 12th, 13th, and 14th Gen Core i9, i7, i5, i3, Pentium Gold, and Celeron processors
Memory Slots - 4 × DDR4 DIMM (up to 128 GB, EXPO/OC up to 5333–6000 MHz depending on model)
Graphics Output - 1 × DisplayPort, 2 × HDMI
Networking - Realtek 2.5Gb Ethernet
Wireless Communication module - Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
| Supported CPU | LGA1700 socket, 12th, 13th, and 14th Gen Intel Core processors, Pentium Gold, and Celeron processors |
| Chipset | Intel B760 |
| Form Factor | mATX |
| BIOS | 256 MB Flash ROM, UEFI AMI BIOS with FlashBack support |
| PCI | 1 u00d7 PCIe 4.0 u00d716 slot (CPU lanes, up to x16), 1 u00d7 PCIe 4.0 u00d716 slot (wired as x4 by chipset), 1 u00d7 PCIe 4.0 u00d716 slot (wired as x1 by chipset) |
| Type | DDR4, dual-channel |
| Slots | 4 DIMM |
| Supported Memory | Up to DDR4-5333+/5200/4800/4600/4400/4200/4000/3800/3600/3400/3200/3000/2933/2800/2666/2400/2133, ECC & non-ECC, EXPO supported |
| Maximum Memory | 128 GB |
| Graphics | 1 u00d7 DisplayPort 1.4 (up to 4K@60 Hz), 2 u00d7 HDMI 2.1 (up to 4K@60 Hz) |
| HDMI | 2 |

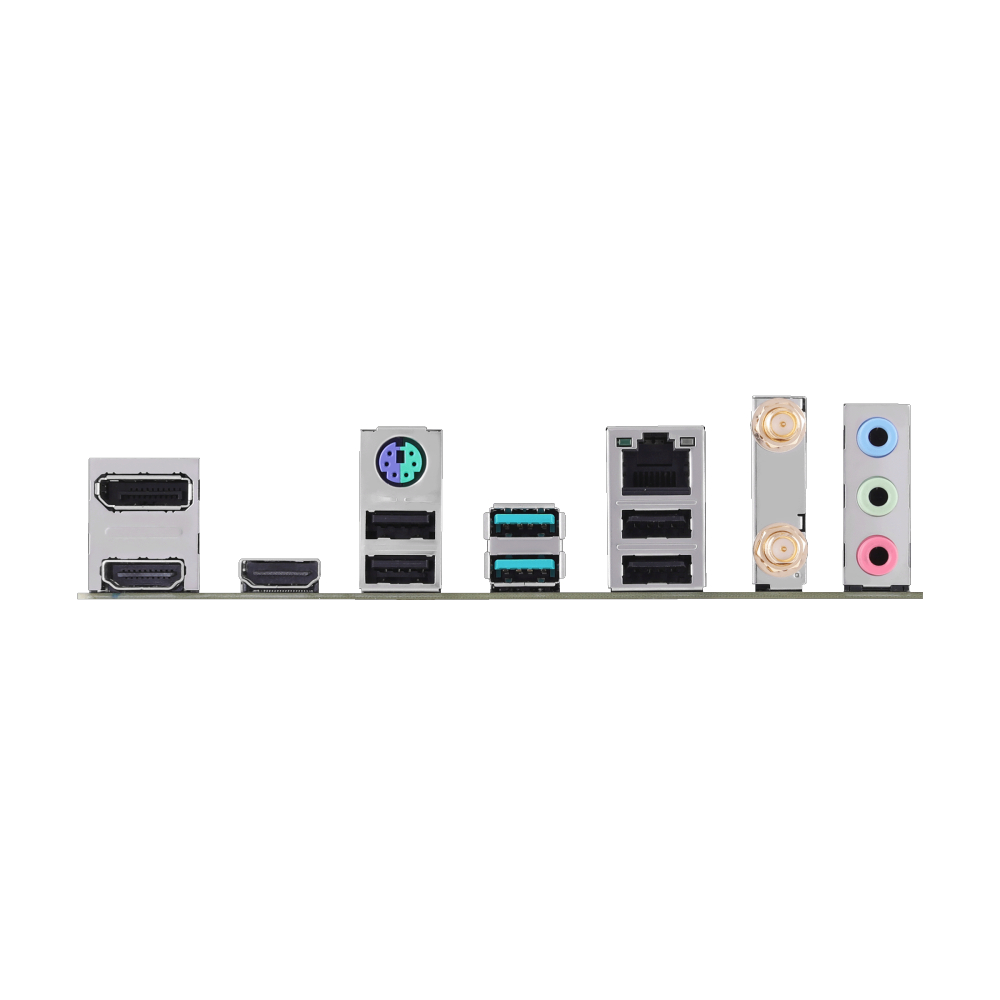

| USB | USB (rear) - 2 u00d7 USB 3.2 Gen 2 Type-A; 4 u00d7 USB 2.0 Type-A, USB (internal headers) - 1 u00d7 USB 3.2 Gen 1 header (Type-C capable), 1 u00d7 USB 3.2 Gen 1 front header, 2 u00d7 USB 2.0 headers |
| LAN Port | 1 u00d7 Realtek 2.5Gb Ethernet |
| DVI-D | N/A |
| Internal I/O Ports | 1 u00d7 24-pin ATX main power; 1 u00d7 8-pin CPU power; 1 u00d7 CPU fan header; 1 u00d7 CPU_OPT; 3 u00d7 chassis fan headers; 3 u00d7 ARGB Gen 2; 1 u00d7 Aura RGB; 1 u00d7 Clear CMOS; COM header; Front panel audio + S/PDIF; SPI TPM; System panel header |
| Supported Storage | 2 u00d7 M.2 Key-M slots (M.2_1: PCIe 4.0 x4 for 12th/13th Gen, PCIe 4.0 x4 for 14th Gen; M.2_2: PCIe 4.0 x4 via chipset) + 4 u00d7 SATA 6 Gb/s ports (RAID 0/1/10 support) |
| Audio | Realtek 7.1 HD Audio CODEC with shielding, premium capacitors; rear jacks + front panel support |
| Wireless Communication module | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2 |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), robust VRM heatsink, BIOS FlashBack button & LED, Aura Sync RGB, OptiMem II for improved memory OC, Armory Crate, AI Suite 3, Fan Xpert 2+, BIOS CrashFree, UEFI EZ Flash |
| Warranty | 3 years |

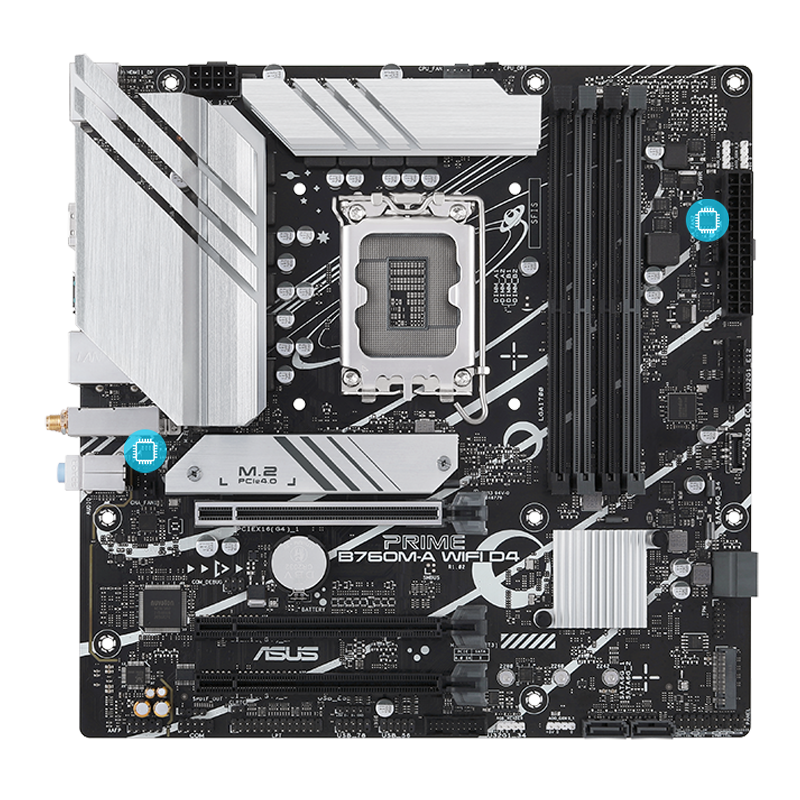

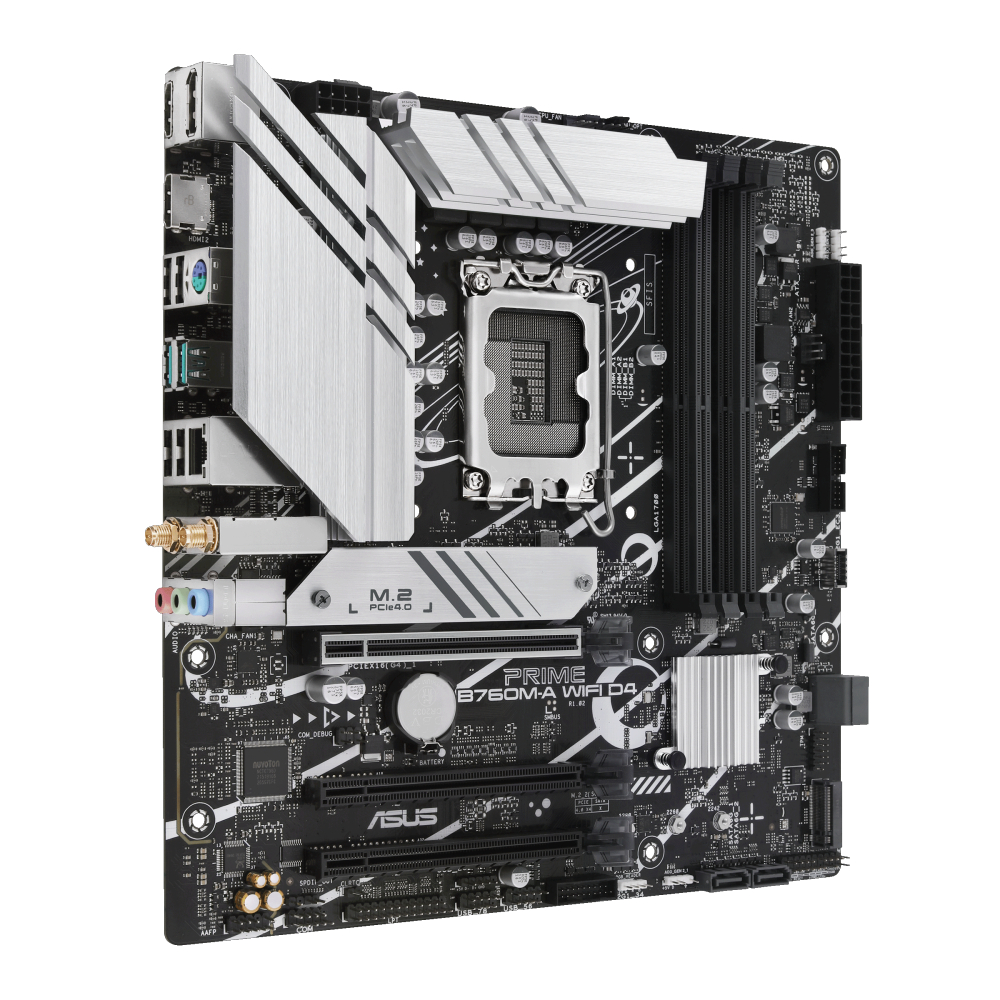

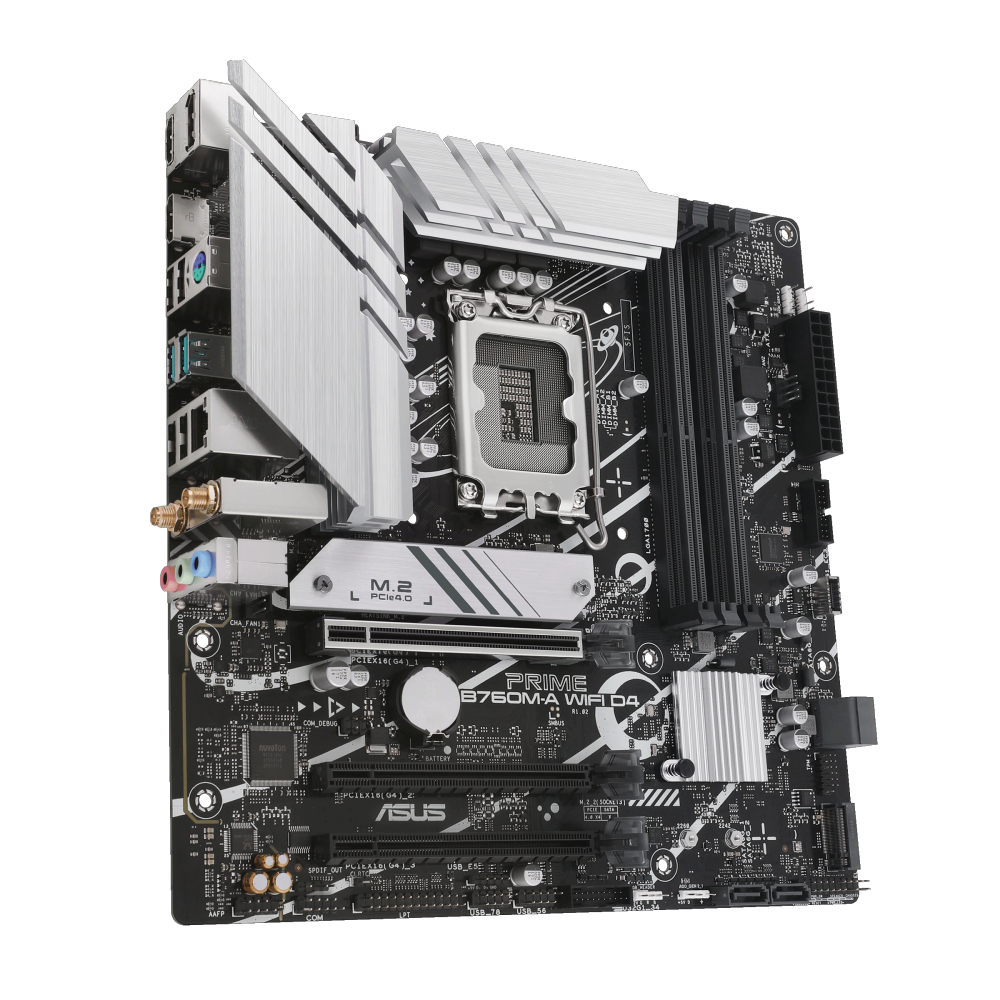

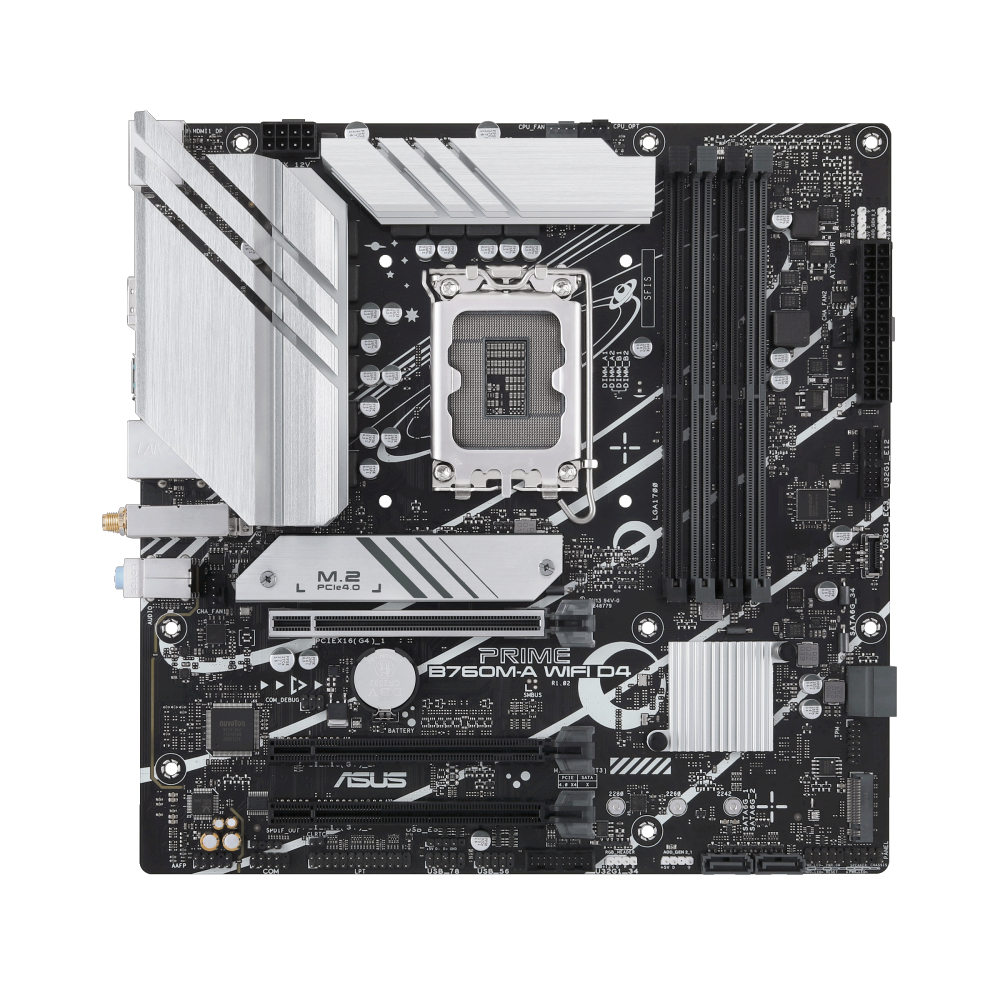

ASUS Prime B760M-A D4 – Reliable Performance for Modern Intel Systems
The ASUS Prime B760M-A D4 is a micro-ATX motherboard engineered for everyday computing, gaming, and office productivity. Compatible with 12th, 13th, and 14th Gen Intel Core processors, it brings next-generation performance to compact builds without compromise. With support for DDR4 memory, PCIe 4.0 graphics, dual M.2 storage slots, and 2.5 Gb Ethernet, this board delivers a stable, fast, and efficient foundation for your desktop PC.
Backed by ASUS quality and enhanced with smart DIY features, the Prime B760M-A D4 is a smart choice for home users, system integrators, and entry-level gamers looking for dependable performance and connectivity.
Key Features
Intel 12th, 13th & 14th Gen CPU Support
Supports Intel LGA1700 socket processors, including Core i3, i5, i7, and i9 series, ensuring compatibility with current and upcoming Intel chips. Perfect for productivity, multitasking, and light gaming workloads.
4× DDR4 DIMM Slots (Up to 128GB RAM)
Provides support for high-speed memory up to 5333 MHz (OC). Ideal for multitasking, light creative workloads, and office environments where stability is key.
Dual PCIe 4.0 M.2 Slots + 4× SATA Ports
Install fast NVMe SSDs for quicker system responsiveness and shorter load times. RAID support and additional SATA ports ensure compatibility with HDDs and 2.5” SSDs.
1× PCIe 4.0 x16 Slot + 2× Additional PCIe Slots
Offers a solid platform for graphics card installation along with extra slots for expansion cards, networking, or capture devices—great for system flexibility.
Realtek 2.5 Gb Ethernet
Ensures fast and stable internet connectivity—ideal for video conferencing, remote work, and online gaming without bottlenecks.
Integrated Display Outputs
Features 2× HDMI and 1× DisplayPort, allowing multi-monitor setups for office work, content viewing, or digital signage with compatible Intel processors.
Comprehensive Cooling Design
VRM, chipset, and M.2 heatsinks maintain system thermals during extended workloads. Hybrid fan headers and Fan Xpert 2+ provide intelligent fan control.
7.1 Surround Audio with Premium Capacitors
Realtek audio codec provides high-fidelity sound for streaming, video editing, or immersive playback through headphones or speakers.
ASUS Q-Design for DIY-Friendly Assembly
Includes Q-DIMM, Q-Slot, and Q-LED diagnostic indicators, making hardware installation and troubleshooting much easier for beginners and advanced users alike.
RGB Lighting with Aura Sync Support
Multiple addressable Gen 2 headers allow RGB customization synced across components, giving your build a vibrant personal touch.
ASUS Prime B760M-A D4 Price in Bangladesh
This ASUS Prime B760M-A D4 motherboard offers excellent value for Intel 12th–14th Gen systems, featuring a strong mix of performance, expandability, and user-friendly features.
