| Chipset | AMD B650 |
| Slots | 4 DIMM |
| Supported Memory | Up to DDR5-6400+/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, EXPO supported |
| Maximum Memory | 128 GB |
| RAM Type | DDR5 |
| Graphics | 1 DisplayPort 1.4 (up to 8K at 60 Hz) 1 x HDMI 2.1 (up to 4K at 60 Hz) 1 VGA |
| Supported CPU | AM5 socket, Ryzen 7000/8000/9000 Series |
| PCI | PCIe 4.0 x 16 slot (CPU lanes, up to x 16), 2 PCIe 4.0 x 16 physical slots (wired as x 1 by chipset) |
| USB | USB (rear) - 2 USB 3.2 Gen 2 Type-A; 2 USB 3.2 Gen 1 Type-A; 4 USB 2.0 Type-A USB (internal headers) - 1 USB 3.2 Gen 1 header (Type-C capable), 1 USB 3.2 Gen 1 front header, 2 USB 2.0 headers |
| Internal I/O Ports | 1 x 24-pin ATX main power; 1 x 8-pin CPU power; 1 x CPU fan header; 1 x CPU_OPT; 3 x chassis fan headers; 3 x ARGB Gen 2; 1 x Aura RGB; 1 x Clear CMOS; COM header; Front panel audio + S/PDIF; SPI TPM; System panel header |
| Supported Storage | 2 x M.2 Key-M slots (M.2_1: PCIe 5.0 x4 for Ryzen 7000/9000, PCIe 4.0 for 8000; M.2_2: PCIe 4.0 x4 via chipset) + 4 x SATA 6 Gb/s ports (RAID 0/1/10 support) |
| Wireless Communication module | N/A |
| DVI-D | N/A |
| Special Features | ASUS 5x PROTECTION III (DIGI + VRM, LANGuard, OV Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), robust VRM heatsink, BIOS FlashBack button & LED, Aura Sync RGB, OptiMem II for improved memory OC, Armory Crat |
| Processor Type | AMD |
| Brand | Asus |
| CPU Sockets | LGA1700 |
| CPU Sockets | AM5 |

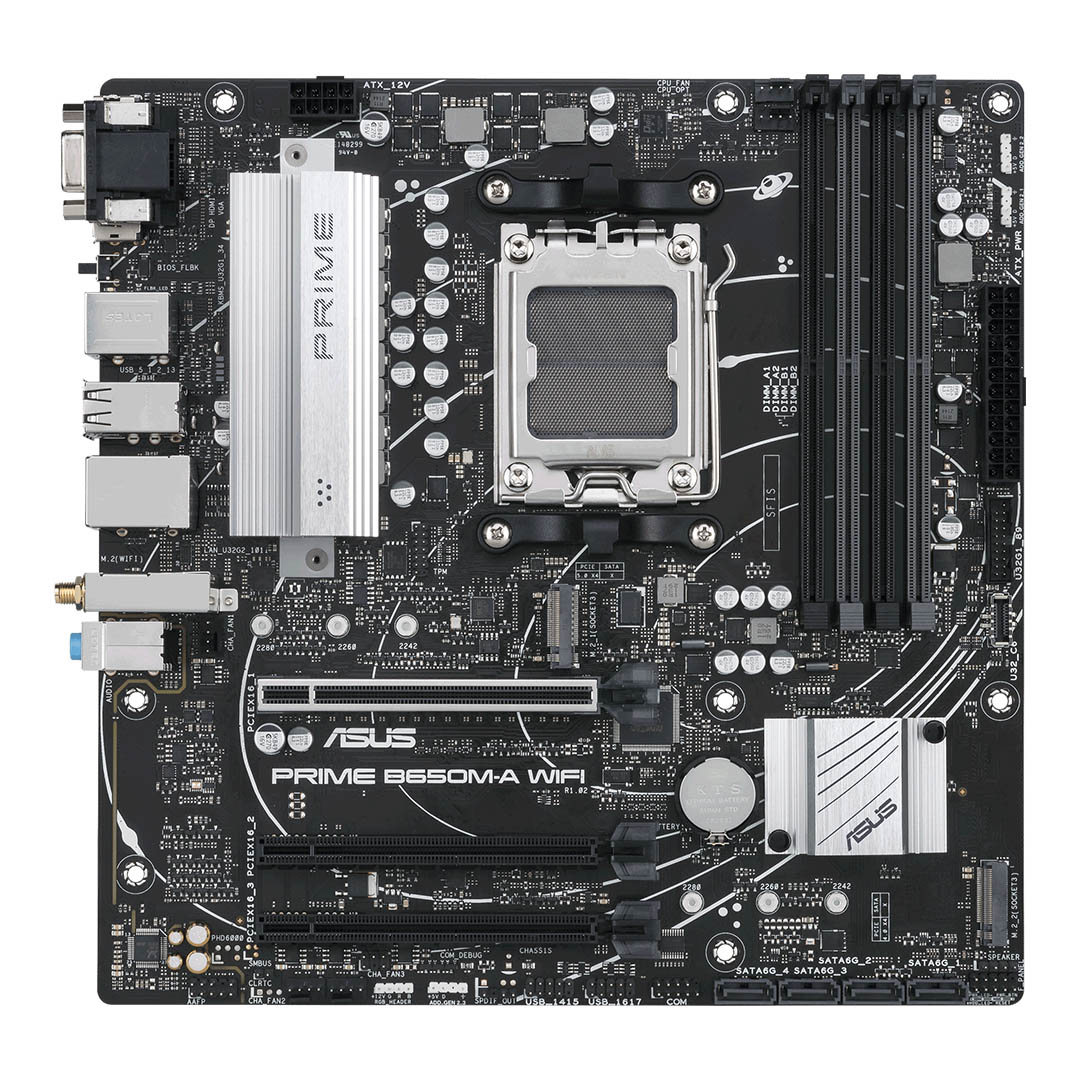

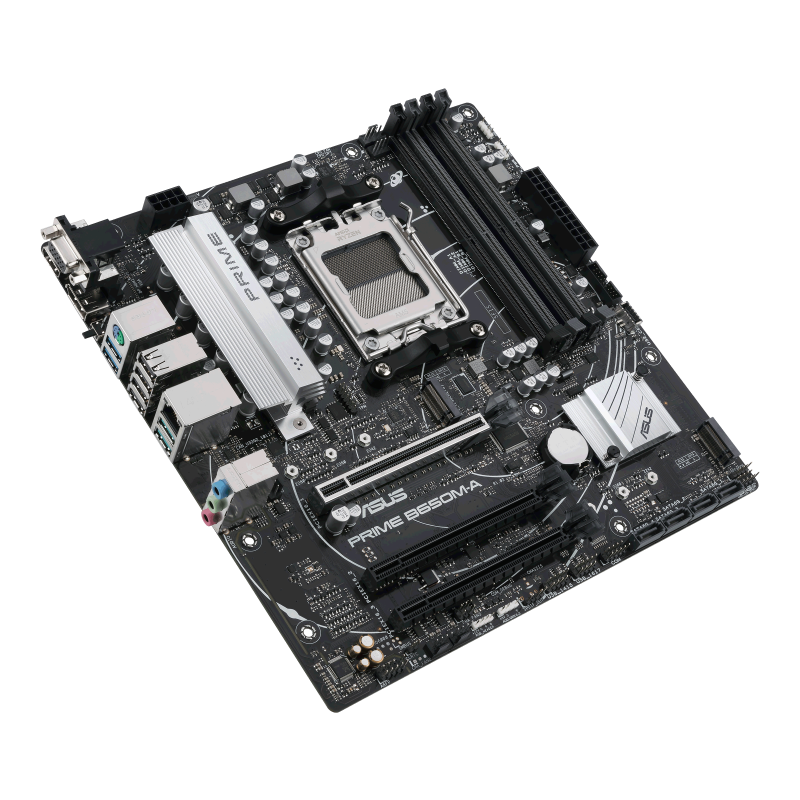

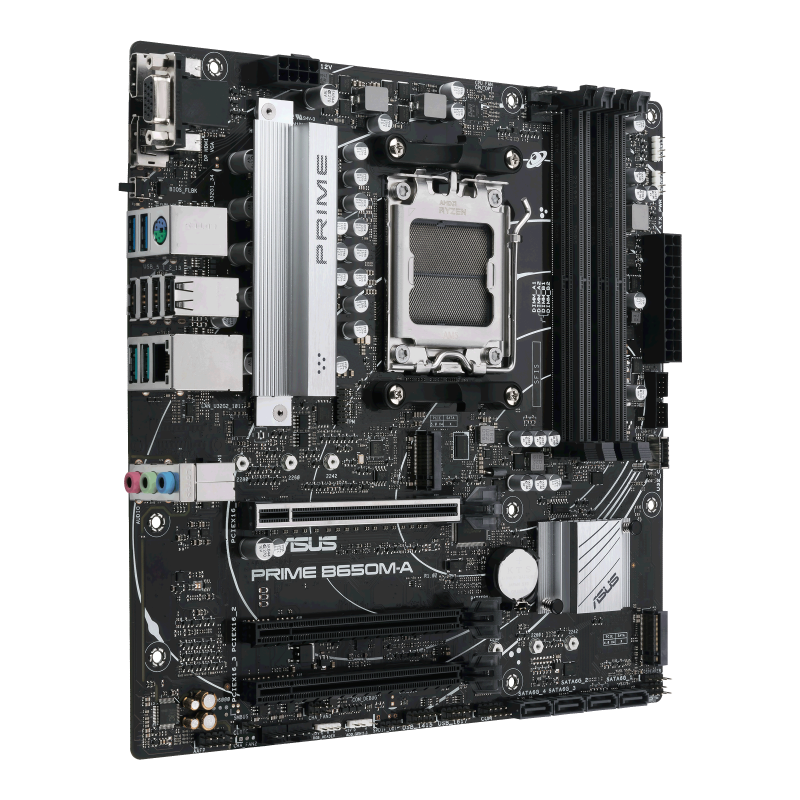

The ASUS PRIME B650M-A DDR5 is a reliable micro-ATX motherboard designed for AMD Ryzen™ 7000 Series processors (AM5 socket) with the B650 chipset. It delivers solid performance, modern connectivity, and excellent expandability, making it ideal for productivity, gaming, and compact workstation builds.
Socket & Chipset: AM5, AMD B650
Memory Support: Up to 128GB DDR5, 4800–6400+ MHz (OC)
Expansion Slots:
1 x PCIe® 5.0 x16 (SafeSlot Core+)
1 x PCIe® 4.0 x16 (x4 mode)
2 x PCIe® 4.0 x1
Storage: 2 x M.2 slots (PCIe® 5.0 x4), 4 x SATA 6Gb/s ports
Networking: Realtek 2.5Gb Ethernet; Wi-Fi 6E (Wi-Fi variant)
USB Ports:
Rear I/O: USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 2/1 Type-A, USB 2.0, HDMI®, DisplayPort, PS/2, Audio jacks
Internal Headers: USB 3.2 Gen 1 Type-C®, USB 3.2 Gen 1, USB 2.0
Audio: Realtek® 7.1 Surround Sound High Definition Audio CODEC
Cooling: VRM, M.2, PCH heatsinks, hybrid fan headers, Fan Xpert 2+
Form Factor: Micro-ATX (24.4 cm x 24.4 cm)
The ASUS PRIME B650M-A DDR5 provides a balanced combination of performance, connectivity, and expandability, making it an excellent choice for building a high-performance AMD Ryzen™ 7000 Series system.
