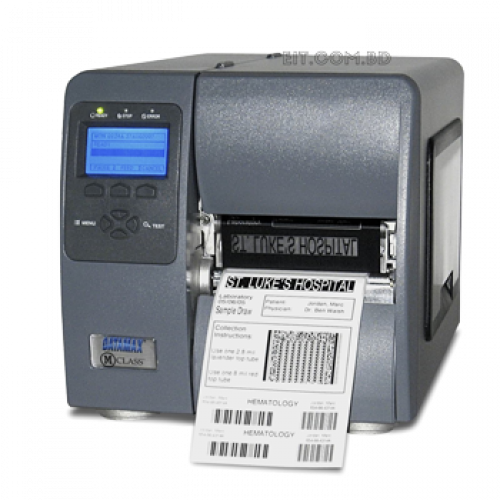

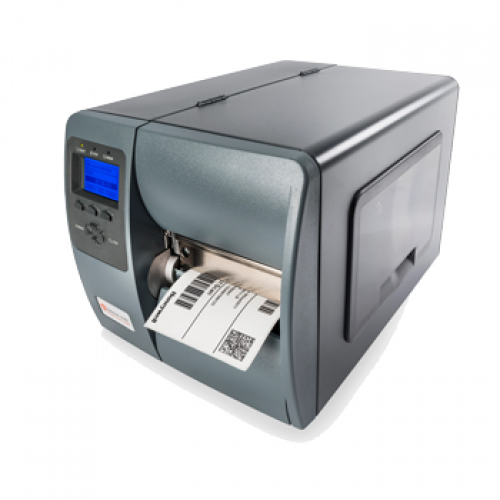

Datamax M-4206 Barcode Printer

0 reviews


Key Features
  • PRINT SPEED : 6 IPS
  • RESOLUTION : 203 DPI
  • PRINT WIDTH : 4.25"
  • MEMORY 4MB DRAM; 2MB Flash

Call For Price

01936007508


Specification

Datamax M-4206 Barcode Label Industrial Printer 203 DPI Specification :
Print Speed

  6 IPS

Print resolution

203 DPI

Maximum Print Width

4.25" , (108mm)

Media Width

1” - 4.65"  (25.4mm - 118 mm)

Memory

4MB DRAM; 2MB Flash

Label roll capacity

8" (203 mm) O.D. on 1.5 - 3.0" (38 - 76.2 mm) cores. Fanfold stock accepted from rear and bottom of printer

PRINTER TYPE

Direct Thermal, Optional Thermal Transfer

BARCODE MODULUS

5 mil to 55 mil (203dpi); 3.3 mil to 40 mil (300dpi); "X" dimension in picket fence or ladder orientations

Media Type

Roll-fed or fan-fold materials, die-cut or continuous labels; perforated or continuous tag/ticket stock

Print length

25" – 99" (6mm – 2475mm)

Media thickness

0025" – .0100" (.0635mm – .254mm)

MEDIA SENSING

"See through" for liner backed die cut labels and tags. Reflective sensor for black mark label media

LABEL BACKFEED

For use with optional cutter or Present Sensor

RIBBONS

Industry standard ribbon widths; 1” (25mm) ribbon core, 1476’ (450M) in length

Dimensions (W X D X H)

10.3” H x 9.8” W x 18.06” D (262mm H x 249mm W x 459mm D)

Weight

M-4206: 21.0 lbs. (9.5kg);

Description

Datamax is poised to revolutionize the thermal printing industry again with the M-Class printer line. The M-Class offers users a durable, technologically advanced thermal printer with the design principles that have proven successful in other Datamax printers, in a smaller footprint for use in emerging market applications. The M-Class consists of the M-4206, an entry-level industrial printer for value-conscious customers, and the M-4208 and M-4306, high performance models with LCD display and expanded option sets. Thermal printing is expanding to more vertical market and industry applications, and Datamax is maintaining a leadership position in printer design and performance with the M-Class. The M-Class is built on a uni-frame, die-cast aluminum chassis, increasing the printer's durability throughout a lifetime of high performance output. The truly modular design of the M-4206, unique to Datamax printers, allows options to be installed and removed in the field. Datamax printers offer versatility that is unparalleled in the thermal printing industry. Datamax builds products that provide value and cost savings to users, and the M-Class continues this legacy. While a printer's design and construction is key to its durability, the ability to interface with an existing or new system is what enables truly seamless integration into any application. Standard connectivity interfaces for the M-Class include an RS-232 serial port, an IEEE 1284 compliant, bi-directional parallel port, and a USB port. Network users have many options, including a fully integrated, highly functional internal Ethernet card, or a more economical external Ethernet port. Datamax also offers DMXConfig, a desktop configuration tool that allows users to retrieve, modify, and update the printer's configuration without entering the printer's menu. Printer settings can be saved and sent to multiple printers if the application requires. The M-Class is designed to address emerging markets for thermal printers, including healthcare, light industrial, retail and shipping applications. The printer's advanced menu system and durable features are the finishing touches in creating the most value-oriented printer for these emerging market users. The M-Class is the most feature-rich printer available to address the desktop/light industrial marketplace with the performance and value required in these applications.
