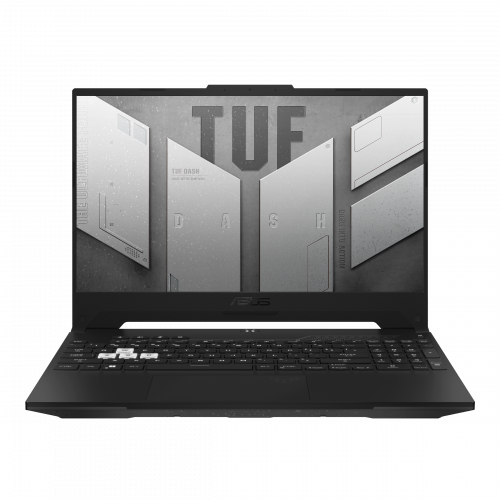

ASUS TUF Dash F15 (2022)

Operating System

Windows 11 Home
Windows 11 Pro
No preinstalled OS

Processor

12th Gen Intel® Core™ i7-12650H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 10 cores: 6 P-cores and 4 E-cores)


Graphics

NVIDIA® GeForce RTX™ 3050 Ti Laptop GPU
1535MHz* at 75W (1485MHz Boost Clock+50MHz OC, 60W+15W Dynamic Boost)

Display

15.6-inch, FHD (1920 x 1080) 16:9, anti-glare display, sRGB:62.5%, Adobe:47.34%, Refresh Rate:144Hz, IPS-level, Adaptive-Sync, MUX Switch + Optimus


Memory

8GB DDR5-4800, SO-DIMM x 2 slot, Max Capacity: 32GB
Support dual channel memory

Storage

512GB M.2 NVMe™ PCIe® 3.0 SSD

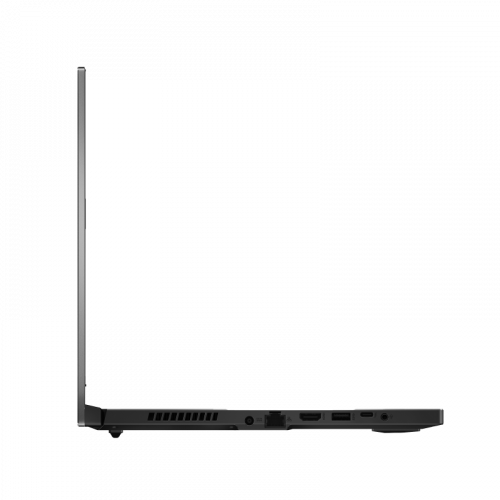

I/O Ports

1x 3.5mm Combo Audio Jack
1x HDMI 2.0b
1x Thunderbolt™ 4 support DisplayPort™
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC
2x USB 3.2 Gen 1 Type-A
1x RJ45 LAN port

Keyboard and Touchpad

Backlit Chiclet Keyboard
Touchpad

Camera

720P HD camera

Audio

Dolby Atmos
AI noise-canceling technology
Hi-Res certification
Built-in array microphone
2-speaker system

Network and Communication

Wi-Fi 6(802.11ax)+Bluetooth 5.2 (Dual band) 2*2;(*BT version may change with OS upgrades.)

Battery

76WHrs, 4S1P, 4-cell Li-ion

Power Supply

ø6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal
TYPE-C, 100W AC Adapter, Output: 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal
ø6.0, 180W AC Adapter, Output: 20V DC, 9A, 180W, Input: 100~240V AC, 50/60Hz universal

Weight

2.00 Kg (4.41 lbs)

Dimensions
(W x D x H)

35.4 x 25.1 x 1.99 ~ 2.07 cm (13.94″ x 9.88″ x 0.78″ ~ 0.81″)

Security

BIOS Administrator Password and User Password Protection
Kensington Security Slot™

Included in the Box

TUF Gaming M5 V2 mouse P304(optional)
TUF backpack(optional)
TYPE-C, 100W AC Adapter, Output: 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal (optional)

Note

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

• Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
• The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

IPS stands for in-plane switching, a type of LED (a form of LCD) display panel technology.

Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.

The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.

Ultrabook, Celeron, Celeron Inside, Core Inside, Intel, Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside, Intel Inside Logo, Intel vPro, Itanium, Itanium Inside, Pentium, Pentium Inside, vPro Inside, Xeon, Xeon Phi, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Product specifications may differ from country to country. We recommend that you check with your local dealers for the specifications of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photography and monitor settings.Due to photographic variables and conditions, actual product appearance may differ from images shown on this site.Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.

• Price may not include extra fee, including tax、shipping、handling、recycling fee.
• For pricing information, ASUS is only entitled to set a recommendation resale price. All resellers are free to set their own price as they wish.

* Result from Mobile Mark 2014 office productivity.

*The standard Asus test environment for battery life is as follows: Windows operating system, display module with 150 nits of brightness, lighting off, and other application settings.

Video Playback: Testing is done with Wi-Fi/Bluetooth off, Windows Power Plan set to Balanced, Taskbar Power Mode set to Battery Saver,  system volume at 67%, and video at full screen, 1080p resolution.

Web Browsing:Testing is done with Wi-Fi/Bluetooth, Windows Power Plan set to Balanced, Taskbar Power Mode set to Better Battery, and using the Weblooper Top50 website in Google Chrome to play the video with a refresh time of 10 seconds.

*Factors that affect battery life include laptop configuration, power settings, and the way it is used. Battery capacity fades with its cycle count and age.

*Quick-charging times apply when using the proper ASUS/ROG adapter included alongside the select model and the system is powered off (via the "shut down" command). In compatible scenarios, batteries can be recharged to 50% within 30 minutes under the optimal temperature range of 20-45 degrees Celsius. Charging times may vary +/- 10% due to system tolerance.

The testing regime includes the requirements of both military-grade standards and ASUS quality tests, and varies depending on device. MIL-STD-810 testing is conducted on selected ASUS products only. Note that the MIL-STD-810 testing helps to ensure the quality of ASUS products but does not indicate a particular fitness for military use. The test is performed under laboratory conditions. Any damage caused by attempts to replicate these test conditions would be considered accidental, and would not be covered by the standard ASUS warranty. Additional coverage is available with ASUS Premium Care.

The actual HDMI version of the products should be checked in the product specifications page respectively.

Unit with RJ45 port does not support “Power over Ethernet” (PoE), only support data transmission.
