Specification
General Information
Display options
LCD colour Display
power options
90-132VAC and 190-264VAC RMS
Dimensions (W X D X H)
10.2 in. H x 6.2 in. W x 18.4 in. D 258 mm H x 157 mm W x 468 mm D
Weight
4.4 kg
Output Options
Print Speed
900 cards/hour single-sided monochrome 200 cards/hour single-sided YMCKO 140 cards/hour dual-sided YMCKOK 450 cards/hour dual-sided monochrome
Resolution
300 dpi (11.8 dots/mm) print resolution Image size: 1006 x 640 pixels
Input Media
Media Size
CR80 ISO 7810 ID-1 format, CR79
Media Type
PVC and PVC composite
Media weight
10-40 mil
Media Input Capacity
100 card capacity auto-adjusting input hopper (30 mil)
Media Output Capacity
100 card capacity output hopper (30 mil)
STANDARD FEATURES
Details
• 300 dpi (11.8 dots/mm) print resolution • 2 GB flash memory • Image size: 1006 x 640 pixels • Auto calibration of ribbon • USB 2.0 and Ethernet 10/100 connectivity • 100 card capacity auto-adjusting input hopper (30 mil) • 100 card capacity output hopper (30 mil) • Manual card feeding capability with LED bezel • Graphical color LCD • 3 Tricolor printer status indicator lights • Kensington® secure lock slot • Print Touch NFC tag for online printer help and documentation access • Printer host authentication • Data encryption • Two-year unlimited warranty on printer and printhead
PRINTING SPECIFICATIONS
Details
• Dye-sublimation thermal transfer direct to card print method • Full-color or monochrome printing • Single and dual-sided printing • Edge-to-edge printing on standard CR-80 media Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration. • 900 cards/hour single sided monochrome • 200 cards/hour single-sided YMCKO • 140 cards/hour dual-sided YMCKOK • 450 cards/hour dual sided monochrome
MEDIA SPECIFICATIONS
Supplies Specifications
NOTE: The ZC300 printer is designed to work only with Zebra genuine ribbons. Ribbons are included in a simple-to-load recyclable cartridge.
Ribbon Description
Cartridge Image Count
-
YMCKO* 200
-
YMCKO* 300
-
YMCKOK* 200
-
½ YMCKO* 400
-
½ YMCKOKO* 250
-
YMCKLL* 200
-
YMCPKO* 200
-
SrDYMCKO* 200
-
KrO* 700
-
KdO* 700
-
Black Monochrome* 2000
-
Black Monochrome 1500
-
White Monochrome* 1500
-
Red Monochrome 1500
-
Blue Monochrome 1500
-
Gold Monochrome 1500
-
Silver Monochrome 1500
Details
Ribbon availability may vary by region. *Zebra intelligent technology automatically detects and authenticates ribbon • Cleaning roller is included with each ribbon • Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)
Card Compatibility
Details
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended. • Card Thickness: 10-40 mil* • Card Size: CR80 ISO 7810 ID-1 format, CR79* • Card Material: PVC and PVC composite • Adhesive back and writable back cards • Transparent cards* *Note: Spot color or monochrome printing recommended only on >20 mil thick cards, CR79 cards, and transparent cards.
OPERATING CHARACTERISTICS
Operating Temp
59º F to 95º F/15º C to 35º C
Storage Temp.
23º F to 158º F/-5º C to 70º C
Operating Humidity
20% to 80% non-condensing
Media Storage
— Temperature: 41º F to 77º F/5º C to 25º C — Humidity: 35% to 65% non-condensing
Electrical
• Auto-switching single-phase AC power • Operating range: 90-132VAC and 190-264VAC RMS • Frequency range: 47-63 Hz • FCC Class A
Communications and Interface Capabilities
USB 2.0
Standard
Built-in 10/100 Ethernet
Optional
802.11ac
Optional
Printer Drivers
Microsoft Windows Certified
Windows Server 2008 (32 and 64 bit), Windows 7 (32 bit and 64 bit) Windows 8 and Windows 8.1 (32 bit and 64 bit compatible) Windows Server 2012 (64 bit) Windows 10 (32 bit and 64 bit) Windows Server 2016,Windows drivers include: • Color coded printer status indicators for the operator • Black panel extraction and controls for specialty ribbon panels with image preview • Configuration utility to limit access by operators to change image quality and printer settings • Advanced printer configuration, security settings and diagnostics capabilities
Linux
Ubuntu 16..X (64 Bit)
Apple
MAC OS X 10.13.X (64 bit)
Description

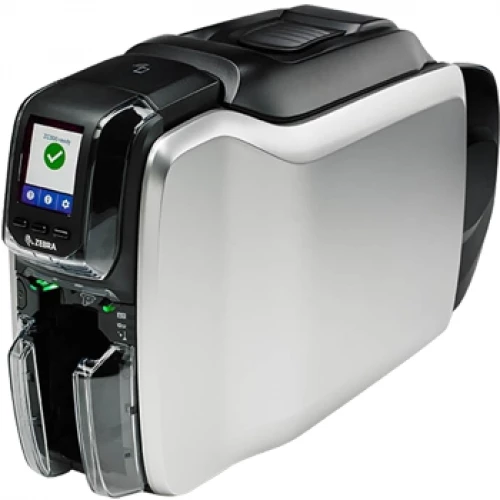

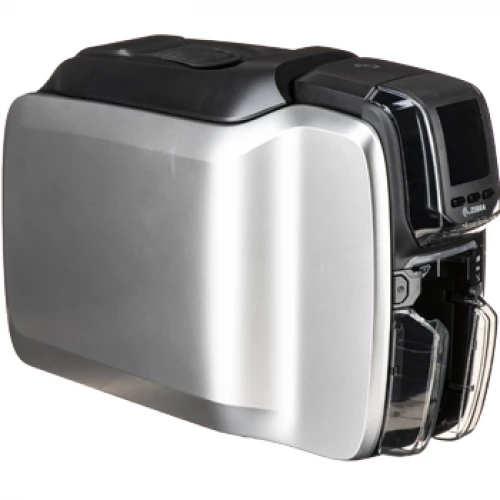

Zebra ZC300 Dual Sided ID Card Or Card Printer
The ZC300 Dual sided ID card or card printer delivers groundbreaking simplicity, security and connectivity options in the slimmest fit-everywhere design in this printer class. Its elegant engineering eliminates virtually all pain points typically associated with card printing, making it easier than ever to print identity, access or membership cards, or credit and debit cards. The result is push-button simplicity, regardless of whether you are printing dual-sided cards in color or in black and white.
The simplest card printer on the planet Highly graphical LED/LCD interface
The ZC300 offers highly-intuitive well-tested icons, animations and text-based messages in your own language, allowing any user to easily understand what the printer needs and how to perform virtually any function — including how to clear a printer jam, fix a ribbon, load a ribbon or cards and more.
Protect your investment with Zebra’s superior support services
No matter what level of support you need, there is a Zebra support service that is just right for your business. With Zebra OneCare, no matter what happens to your printer, it’s covered. If you just need access to technical support, choose Zebra’s Technical Software and Support (TSS). And if you want help setting up and configuring the hundreds of settings on local and remote ZC300 printers, our Install & Configuration Assistance (ICA) Select program provides the support you need.
Advanced security
Printer and host authentication
Advanced security features enable printer-to-host authentication to prevent printing from unauthorized applications or devices.
AES data encryption
Government-grade encryption protects the most sensitive data during printing, such as account numbers.
