Chipset – AMD B650
Sockets Supported – AM5
Supported CPU – AMD Ryzen 7000/8000/9000 Series Desktop Processors
Memory Slots – 4 × DDR5 DIMM (up to 192GB)
Graphics Output – (Depends on CPU integrated graphics; not specified)
| Model | ASUS ROG STRIX B650 A GAMING WIFI |
| Part Number | 90MB1C00-M0EAY0 |
| Supported CPU | AMD Ryzen 9000, 8000, and 7000 Desktop Processors |
| Chipset | B650 |
| Form Factor | ATX |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| PCI | 1 x PCIe 4.0 x16 slot (Processor), 2 x PCIe 4.0 x16 slots (Chipset) |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 MHz, ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXPO, OptiMem |
| Maximum Memory | 192GB |
| Graphics | 1 x DisplayPort (max 8K@60Hz, DisplayPort 1.4), 1 x HDMI port (max 4K@60Hz, HDMI 2.1) |
| HDMI | 1 x HDMI port |
| USB | Rear USB: 1 x USB 3.2 Gen 2x2 Type-C, 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C), 4 x USB 2.0 Type-A |
| LAN Port | Intel 2.5Gb Ethernet |
| Internal I/O Ports | Fan & Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fans; Power: 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V; Storage: 3 x M.2 (Key M), 4 x SATA 6Gb/s |
| Supported Storage | 1 x M.2 PCIe 5.0 x4 (Processor), 1 x M.2 PCIe 4.0 x4 (Processor), 1 x PCIe 4.0 x4 (Chipset), 4 x SATA 6Gb/s |
| Audio | SupremeFX 7.1 audio |
| Wireless Communication Module | Wi-Fi 6E, Bluetooth v5.2 |
| Special Features | Extreme Engine Digi+ with 5K Black Metallic Capacitors, ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot), ASUS Thermal Solution (M.2 heatsink, VRM heatsink design), ASUS EZ DIY (BIOS FlashBack button, BIOS FlashBack LED, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM), Aura Sync (AURA RGB header, 3 x Addressable Gen 2 headers) |
| Warranty | 3 Years |

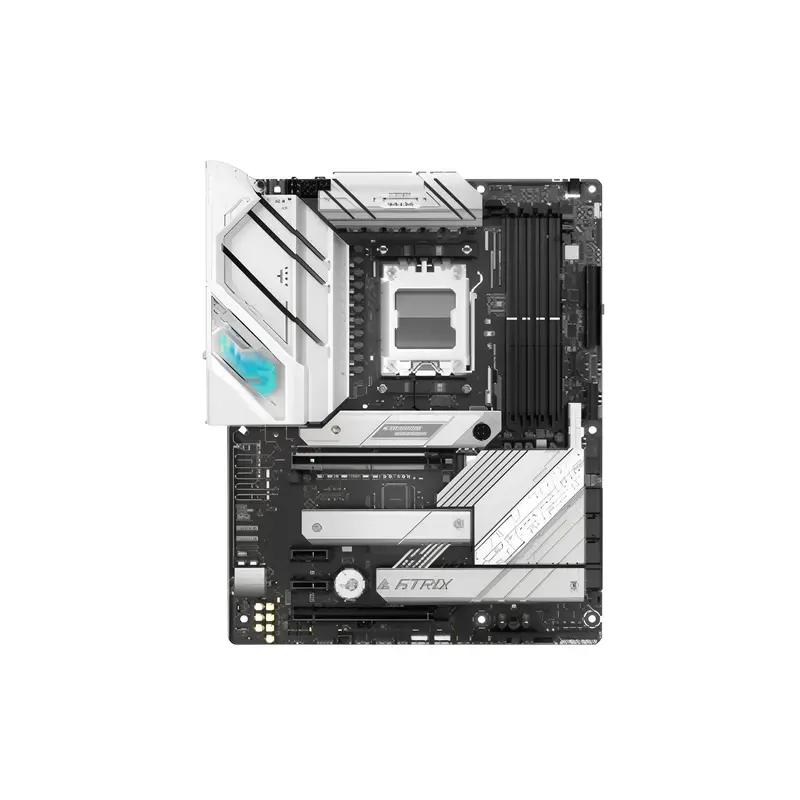

The ASUS ROG Strix B650-A Gaming WiFi is a high-performance ATX motherboard designed for gamers, creators, and PC enthusiasts who demand speed, stability, and advanced connectivity. Built for AMD Ryzen 9000, 8000, and 7000 series desktop processors, it supports DDR5 memory, PCIe 5.0 storage, and next-gen networking. Its stylish design, premium build quality, and user-friendly features make it ideal for a powerful and future-ready AM5 build.
AM5 Socket with B650 Chipset
Optimized for AMD Ryzen 9000, 8000, and 7000 series processors, delivering outstanding performance with the latest architecture and technology support.
DDR5 Memory Support up to 192GB
Supports up to 192GB of high-speed DDR5 memory with AMD EXPO profiles for extreme overclocking potential and smoother multitasking.
PCIe 5.0 and PCIe 4.0 Expansion
Equipped with 1 x PCIe 4.0 x16 slot for graphics cards and multiple PCIe slots for expansion, enabling high-speed connectivity for GPUs and add-on cards.
Next-Gen Storage Options
Features 1x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4 (Processor), and 1x PCIe 4.0 x4 (Chipset) slots, along with 4 x SATA 6Gb/s ports for fast and versatile storage configurations.
Advanced Cooling Design
Integrated M.2 heatsinks, VRM heatsinks, and multiple fan headers ensure efficient cooling under heavy workloads and gaming sessions.
Ultra-Fast Networking
Enjoy low-latency online performance with Intel 2.5Gb Ethernet and Wi-Fi 6E plus Bluetooth v5.2 for seamless connectivity.
Premium Audio Experience
SupremeFX 7.1-channel audio with high-quality components delivers clear and immersive sound for gaming and entertainment.
DIY-Friendly Features
Includes Q-LED, M.2 Q-Latch, PCIe Slot Q-Release, BIOS FlashBack, pre-mounted I/O shield, SafeSlot, and SafeDIMM for easier and safer system building.
Customizable RGB Lighting
AURA Sync support with multiple RGB headers and addressable Gen 2 headers lets you personalize your build’s look and style.
