| Model | ASUS ROG STRIX B650E-F GAMING WIFI |
| Part Number | |
| Supported CPU | AMD Ryzen 9000, 8000, and 7000 Desktop Processors |
| Chipset | B650 |
| Form Factor | ATX |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| PCI | 1 x PCIe 5.0 x16 slot (Processor), 1 x PCIe 4.0 x16 slot (Chipset), 2 x PCIe 4.0/3.0 x1 slots (Chipset) |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 MHz, ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXPO, OptiMem II |
| Maximum Memory | 192GB |
| Graphics | 1 x DisplayPort (max 8K@60Hz, DisplayPort 1.4), 1 x HDMI port (max 4K@60Hz, HDMI 2.1) |
| HDMI | 1x HDMI port |

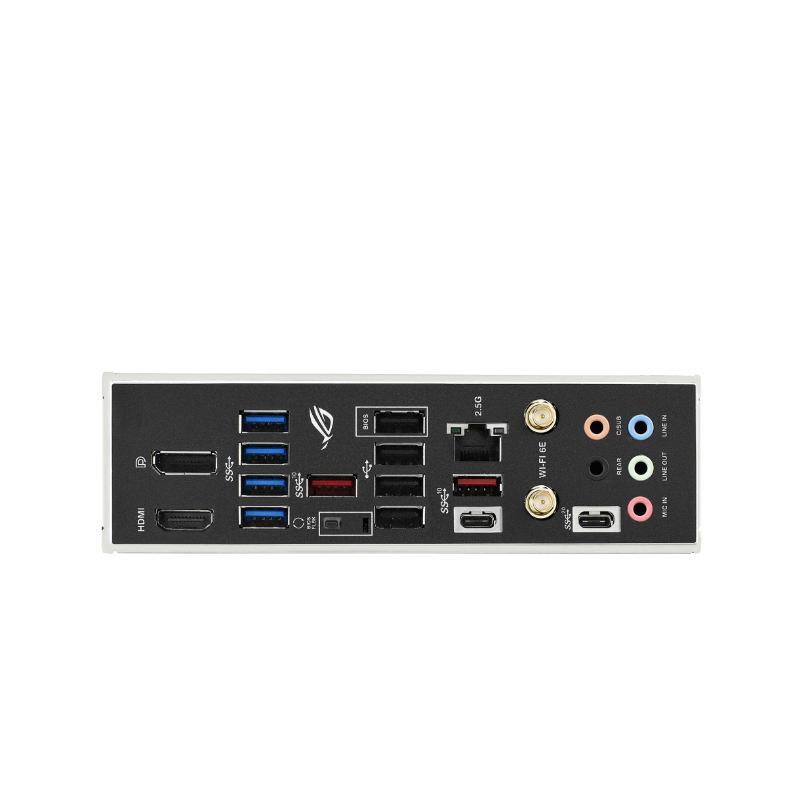

| USB | Rear USB: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C), 4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
| LAN Port | 1x Intel 2.5Gb Ethernet |
| Internal I/O Ports | Fan & Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fans; Power: 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V; Storage: 3 x M.2 (Key M), 4 x SATA 6Gb/s |
| Supported Storage | 1x PCIe 5.0 x4 (Processor), 1 x PCIe 4.0 x4 (Processor), 1 x PCIe 4.0 x4 (Chipset), 4 x SATA 6Gb/s |
| Audio | SupremeFX audio |
| Wireless Communication Module | Wi-Fi 6, Bluetooth v5.2 |
| Special Features | Extreme Engine Digi+ with 5K Black Metallic Capacitors, ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot), ASUS Thermal Solution (M.2 heatsink, VRM heatsink design), ASUS EZ DIY (BIOS FlashBack button, BIOS FlashBack LED, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM), Aura Sync (AURA RGB header, 3 x Addressable Gen 2 headers) |
| Warranty | 3 years |

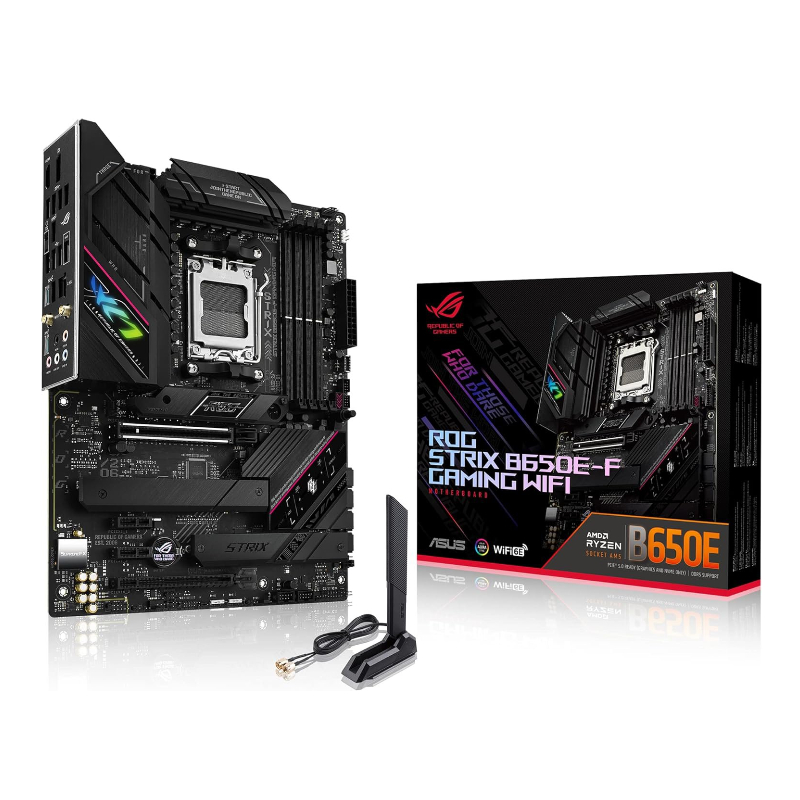

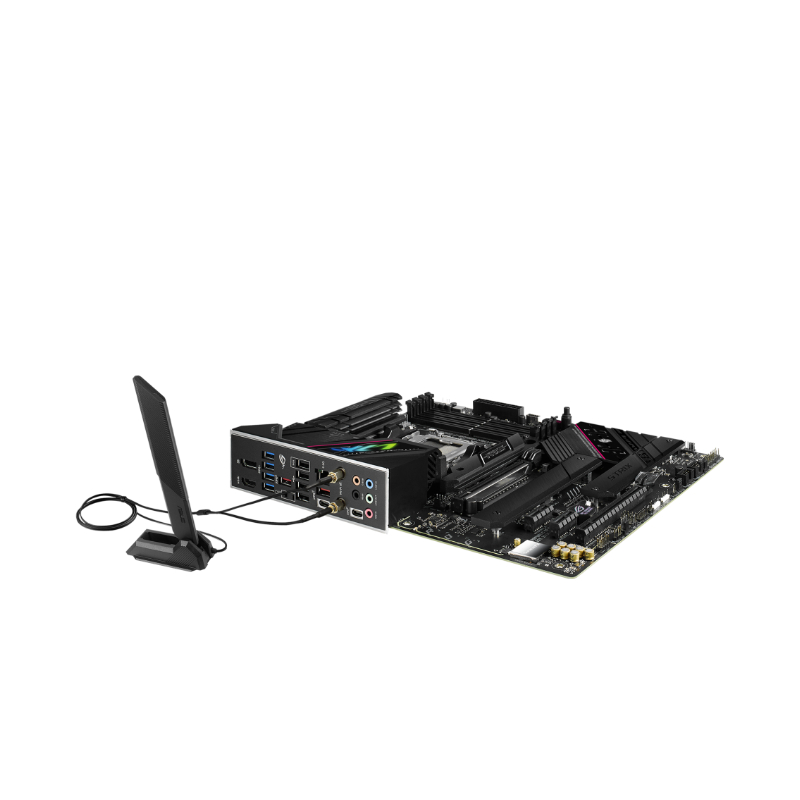

The ASUS ROG Strix B650E-F Gaming WiFi is engineered for high-end gaming and performance builds, offering cutting-edge connectivity, powerful expansion, and robust durability. Designed for AMD Ryzen 9000, 8000, and 7000 series desktop processors, it supports ultra-fast DDR5 memory, PCIe 5.0 graphics, and next-gen storage solutions. With a stylish design, advanced cooling features, and gamer-focused enhancements, this motherboard delivers the performance and reliability needed for serious PC enthusiasts.
AM5 Socket with B650E Chipset
Optimized for the latest AMD Ryzen processors, providing stable performance, wide compatibility, and future-proof support for next-gen hardware.
High-Speed DDR5 Memory Support
Supports up to 192GB DDR5 memory with speeds beyond 6400MHz (OC) for smooth multitasking, faster data processing, and overclocking flexibility with AMD EXPO profiles.
Advanced PCIe Expansion
Equipped with 1 x PCIe 5.0 x16 slot for GPUs, 1 x PCIe 4.0 x16 slot, and 2 x PCIe 4.0/3.0 x1 slots for additional expansion cards, ensuring ample upgrade potential.
Next-Gen Storage Solutions
Includes 1x PCIe 5.0 x4 M.2 slot, 1x PCIe 4.0 x4 M.2 slot (Processor), 1x PCIe 4.0 x4 M.2 slot (Chipset), and 4 x SATA 6Gb/s ports for flexible and fast storage options.
Comprehensive Cooling Design
Multiple heatsinks, 4-pin fan headers, AIO pump header, and VRM thermal solutions ensure stable operation even under heavy gaming loads.
Ultra-Fast Networking
Enjoy high-speed and low-latency connections with Intel 2.5Gb Ethernet and Wi-Fi 6 plus Bluetooth v5.2 for smooth online gaming and streaming.
Premium SupremeFX Audio
Delivers crystal-clear, immersive sound for gaming and entertainment with premium-grade audio components.
DIY-Friendly Features
Includes Q-LED diagnostics, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, SafeSlot, and BIOS FlashBack for hassle-free building and maintenance.
Customizable AURA Sync RGB
Personalize your PC with vibrant lighting effects using multiple AURA RGB and addressable Gen 2 headers.
