| Supported CPU | Intel 14th, 13th & 12th Gen, Pentium Gold and Celeron Processors |
| Chipset | Intel H610 |
| Form Factor | mATX |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| PCI | 1 x PCIe 4.0 x16 (Processor), 1 x PCIe 3.0 x 1 (Chipset) |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 MHz, Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | 64GB |
| Graphics | 1 x D-Sub port (max. 4K@60Hz as per DisplayPort 1.4), 1 x HDMI port (max. 4K@60Hz as per HDMI 2.1) |
| HDMI | 1 x HDMI port |
| USB | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
| LAN Port | Realtek 1Gb Ethernet |
| Internal I/O Ports | Fan and Cooling: 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header; Power: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector; Storage: 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports |
| Supported Storage | 1 x M.2 PCIe 3.0 (Processor), 4 x SATA |
| Audio | Realtek 7.1 Channel Audio |
| Wireless Communication Module | N/A |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-Slot), ASUS Thermal Solution (Aluminum heatsink design), ASUS Lighting Control (RGB header) |
| Warranty | N/A |

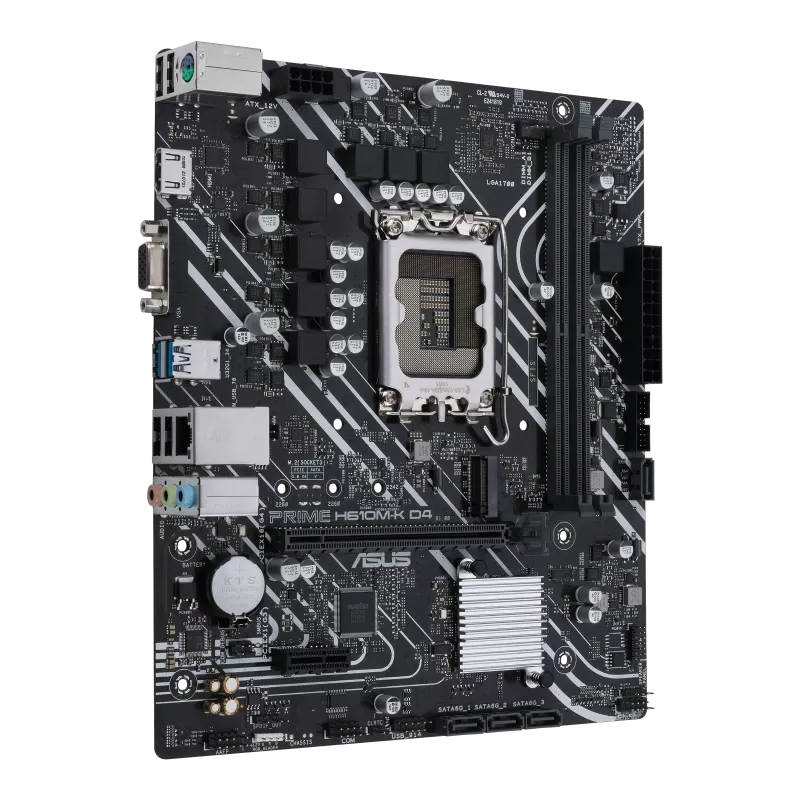

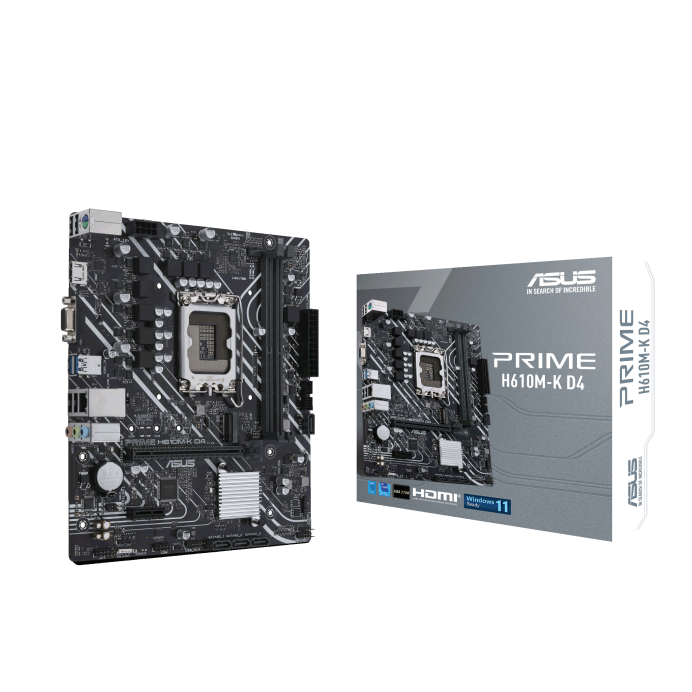

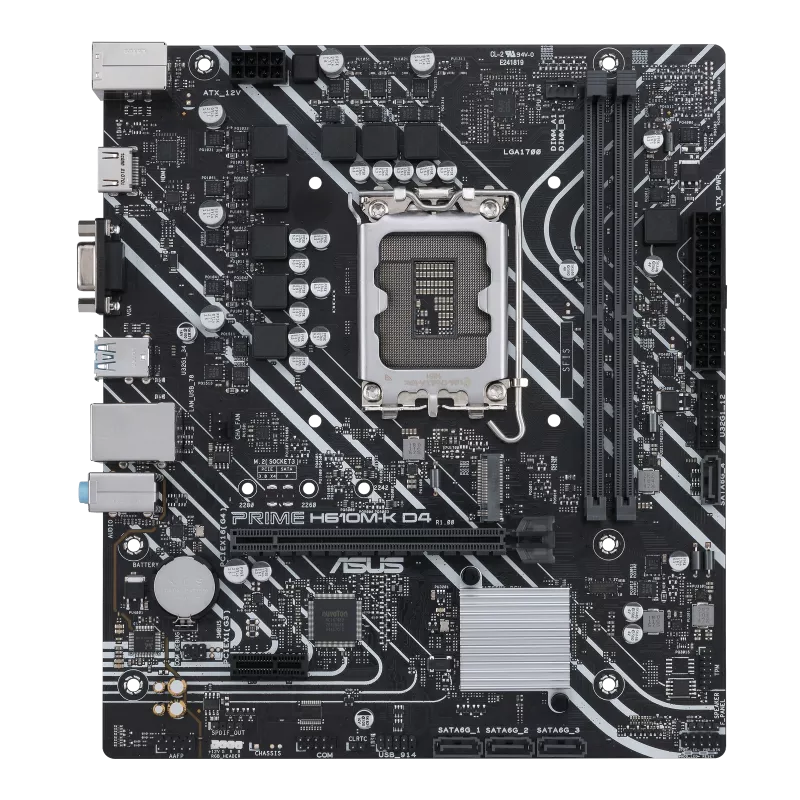

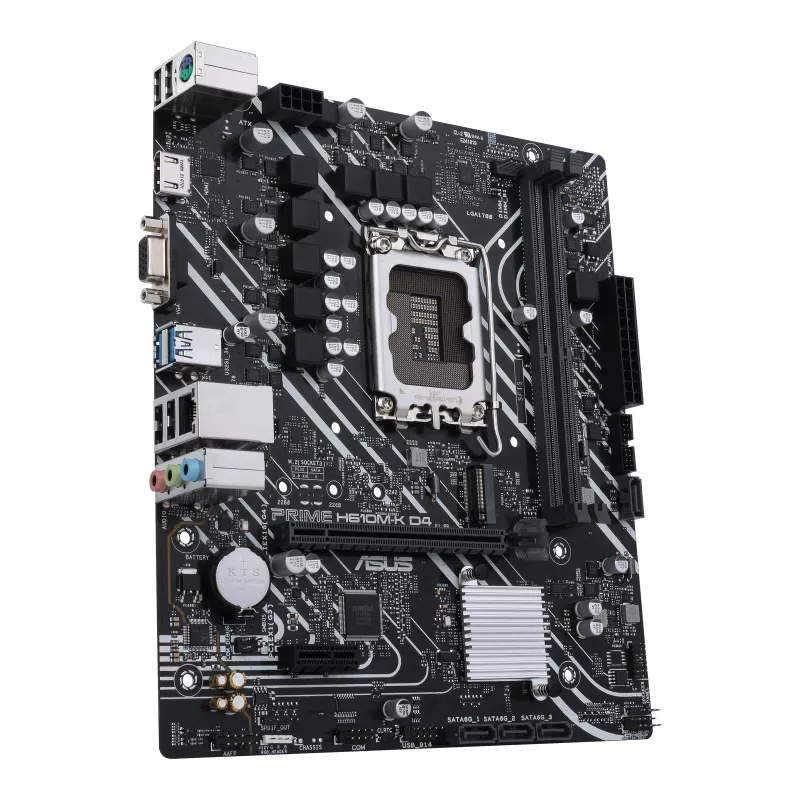

The ASUS PRIME H610M-K D4 is a compact, budget-friendly micro-ATX motherboard built for Intel’s latest CPUs. Designed for stability, ease of use, and essential features, it’s perfect for office systems, home PCs, and entry-level builds that require consistent performance without unnecessary extras.
Intel LGA1700 Socket with H610 Chipset
Supports Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors. The H610 chipset offers the essential features you need for a smooth, reliable computing experience.
DDR4 Memory Support up to 64GB
Two DIMM slots with dual-channel architecture supporting speeds up to 3200 MHz (via Intel XMP). Ideal for office productivity, light gaming, and multitasking.
PCIe 4.0 Graphics Support + PCIe 3.0 Expansion
Equipped with one PCIe 4.0 x16 slot for modern GPUs and one PCIe 3.0 x1 slot for additional expansion cards.
Fast Storage with M.2 PCIe 3.0 + 4x SATA Ports
Features one M.2 PCIe 3.0 slot for NVMe SSDs and four SATA 6Gb/s ports for traditional HDDs or SATA SSDs, offering flexibility for both speed and storage capacity.
Multiple Display Options
Onboard HDMI 2.1 and D-Sub outputs support resolutions up to 4K@60Hz, making it easy to connect modern or legacy monitors.
Reliable Networking
Built-in Realtek 1Gb Ethernet ensures stable and fast wired connections for work, streaming, and browsing.
High-Quality Audio
Realtek 7.1-channel HD Audio delivers clear sound for calls, music, and media playback.
ASUS 5X Protection III Durability
Enhanced safety with DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and stainless-steel back I/O—designed for long-lasting performance.
Easy DIY-Friendly Design
ASUS Q-DIMM single-sided memory latches and Q-Slot GPU release make upgrades and maintenance simple.
Efficient Cooling Support
Aluminum heatsink design plus dedicated 4-pin fan headers for CPU and chassis cooling.
At Eastern IT, we offer more than just components—we deliver confidence:
Build your next affordable, reliable Intel system with the ASUS PRIME H610M-K D4 from Eastern IT—simple, stable, and ready for everyday performance.
