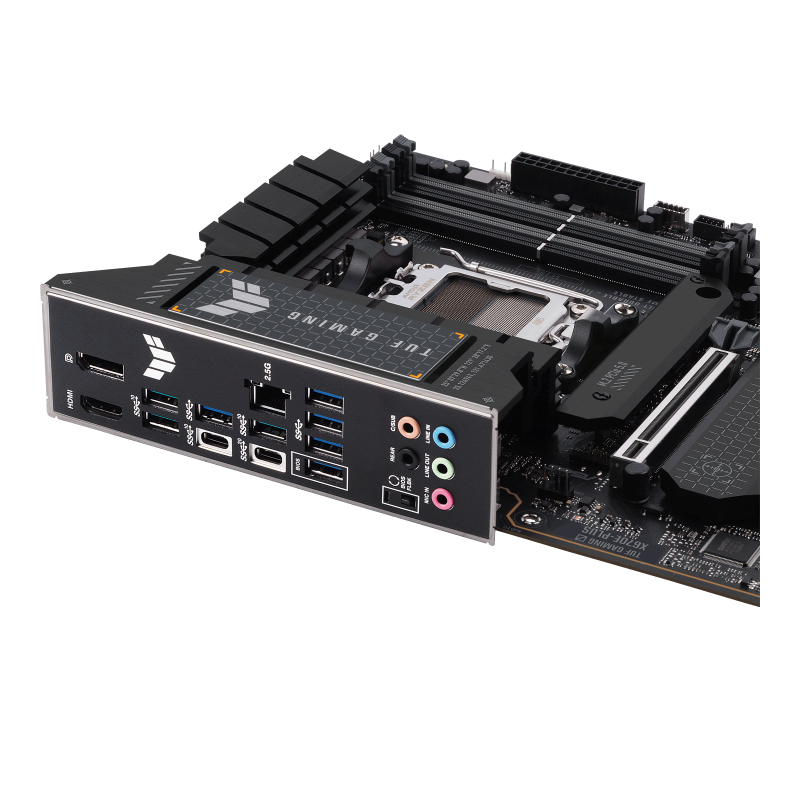

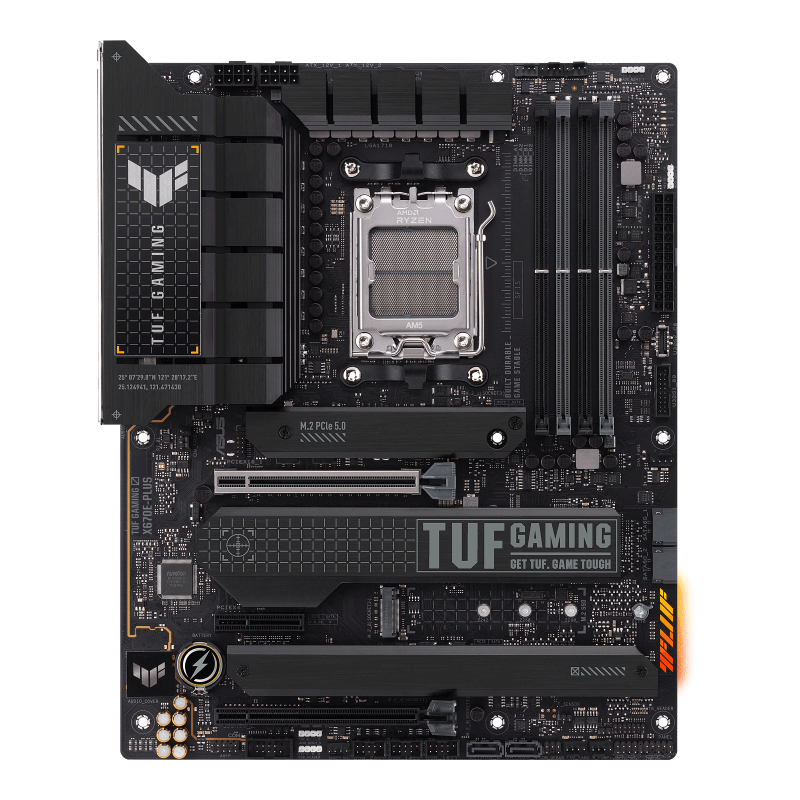

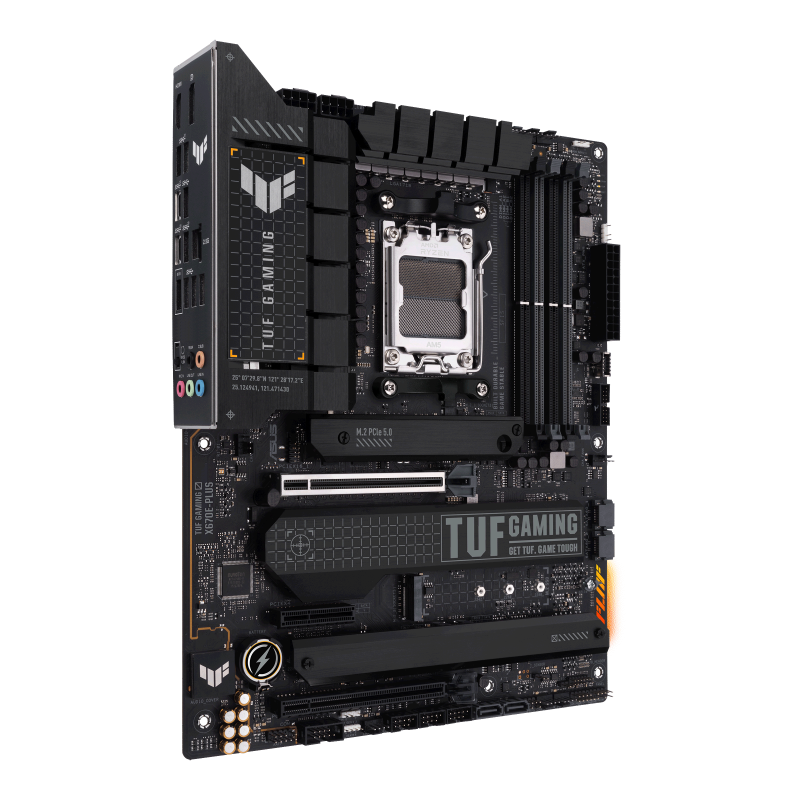

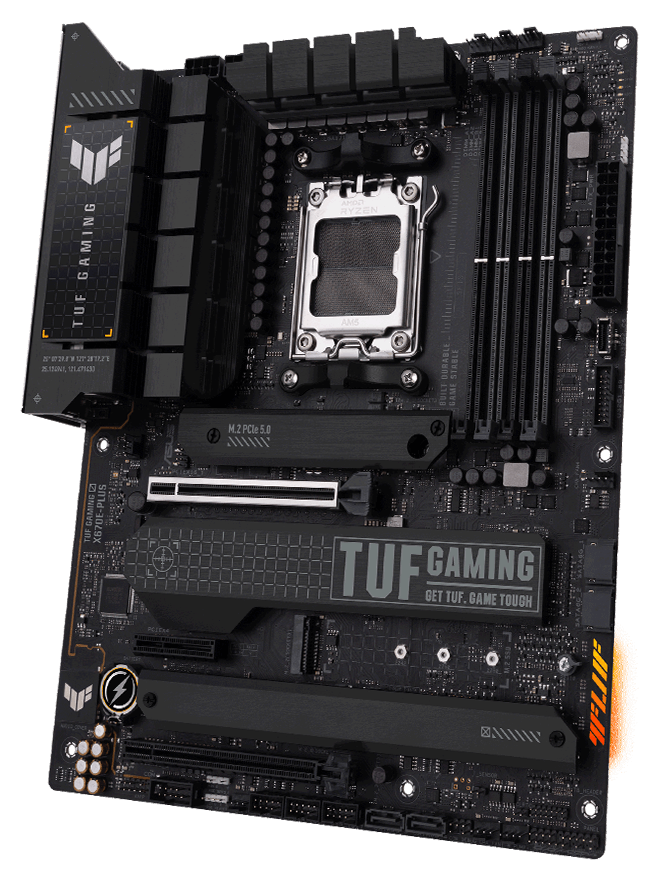

ASUS TUF GAMING X670E-PLUS DDR5 ATX Motherboard

Price: ৳42500

Regular Price: ৳46900

In Stock

Brand: Asus

MPN: 90MB1BJ0-M0EAY0

Key Features

Chipset – AMD X670E
Sockets Supported – AM5 (LGA1718)
Supported CPU – AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors
Memory Slots – 4 × DDR5 DIMM (up to 128 GB, overclocking support up to 6400 MHz)
Graphics Output – 1 × HDMI, 1 × DisplayPort

Special Price

৳42500

Regular Price

৳46900

Specification

Basic Information

Supported CPU	AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors
Chipset	AMD X670E
Form Factor	ATX (12 Inch x 9.6 Inch / 30.5 x 24.4 cm)
BIOS	UEFI AMI BIOS with FlashBack support

Expansion Slots

PCI	1 x PCIe 5.0 x16 slot (CPU lanes, up to x16), 1 x PCIe 4.0 x16 slot (wired as x4 by chipset), 1 x PCIe 3.0 x1 slot (by chipset)

Memory

Type	DDR5, dual-channel
Slots	4 x DIMM
Supported Memory	Up to DDR5-6400+(OC)/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, Un-buffered Memory
Maximum Memory	128 GB

Graphics

Graphics Output

1 x HDMI 2.1, 1 x DisplayPort 1.4

Connector & Ports

HDMI/DisplayPort	1 x HDMI 2.1, 1 x DisplayPort 1.4
USB	Rear: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A; Internal: 1 x USB 3.2 Gen 2x2 header (Type-C capable), 1 x USB 3.2 Gen 1 front header, 2 x USB 2.0 headers
LAN Port	1 x Realtek 2.5Gb Ethernet
Internal I/O Ports	1 x 24-pin ATX main power, 1 x 8-pin CPU power, 1 x CPU fan header, 1 x CPU_OPT, 3 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 1 header (Type-C capable), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 20-3 pin System Panel header
Supported Storage	1 x M.2 Key-M slot (PCIe 5.0 x4 for Ryzen 7000 Series), 1 x M.2 Key-M slot (PCIe 4.0 x4 via chipset), 4 x SATA 6 Gb/s ports (RAID 0/1/10 support)
Audio	Realtek S1220A 7.1-channel High Definition Audio CODEC with DTS Audio Processing
Wireless Communication Module	N/A

Others

Special Features

ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O); Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core); Robust VRM heatsink; BIOS FlashBack button & LED; Aura Sync RGB; OptiMem II for improved memory OC; Armory Crate; AI Suite 3; Fan Xpert 2+; BIOS CrashFree; UEFI EZ Flash

Warranty Information

Warranty

3 Years

Basic Information

Supported CPU AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors

Chipset AMD X670E

Form Factor ATX (12 Inch x 9.6 Inch / 30.5 x 24.4 cm)

BIOS UEFI AMI BIOS with FlashBack support

Expansion Slots

PCI 1 x PCIe 5.0 x16 slot (CPU lanes, up to x16), 1 x PCIe 4.0 x16 slot (wired as x4 by chipset), 1 x PCIe 3.0 x1 slot (by chipset)

Memory

Type DDR5, dual-channel

Slots 4 x DIMM

Supported Memory Up to DDR5-6400+(OC)/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, Un-buffered Memory

Maximum Memory 128 GB

Graphics

Graphics Output 1 x HDMI 2.1, 1 x DisplayPort 1.4

Connector & Ports

HDMI/DisplayPort 1 x HDMI 2.1, 1 x DisplayPort 1.4

USB Rear: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A; Internal: 1 x USB 3.2 Gen 2x2 header (Type-C capable), 1 x USB 3.2 Gen 1 front header, 2 x USB 2.0 headers

LAN Port 1 x Realtek 2.5Gb Ethernet

Internal I/O Ports 1 x 24-pin ATX main power, 1 x 8-pin CPU power, 1 x CPU fan header, 1 x CPU_OPT, 3 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 1 header (Type-C capable), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 20-3 pin System Panel header

Supported Storage 1 x M.2 Key-M slot (PCIe 5.0 x4 for Ryzen 7000 Series), 1 x M.2 Key-M slot (PCIe 4.0 x4 via chipset), 4 x SATA 6 Gb/s ports (RAID 0/1/10 support)

Audio Realtek S1220A 7.1-channel High Definition Audio CODEC with DTS Audio Processing

Wireless Communication Module N/A

Others

Special Features ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O); Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core); Robust VRM heatsink; BIOS FlashBack button & LED; Aura Sync RGB; OptiMem II for improved memory OC; Armory Crate; AI Suite 3; Fan Xpert 2+; BIOS CrashFree; UEFI EZ Flash

Warranty Information

Warranty 3 Years

Description

ASUS TUF GAMING X670E-PLUS DDR5 – Rugged Reliability for High-End AM5 Builds

The ASUS TUF GAMING X670E-PLUS DDR5 is engineered for long-term durability, performance, and future-ready support with AMD Ryzen 7000, 8000, and 9000 Series processors. Featuring DDR5 memory, PCIe 5.0 readiness, and military-grade components, this ATX motherboard is perfect for gamers and professionals building powerful AMD systems without wireless connectivity requirements.

Key Features

AM5 Socket with AMD X670E Chipset
Supports the latest AMD Ryzen 7000, 8000, and 9000 Series desktop CPUs, delivering advanced performance and compatibility through the future-proof AM5 platform.

DDR5 Memory Support up to 6400 MHz (OC)
Equipped with 4 DIMM slots, the board supports up to 128GB of high-speed DDR5 RAM—perfect for multitasking, gaming, and memory-intensive workloads.

PCIe 5.0 x16 Slot & M.2 Expansion
Offers full PCIe 5.0 support for next-gen GPUs and SSDs, ensuring top-tier bandwidth and faster data access for demanding applications.

14+2 DrMOS Power Stages & Thermal Armor
Delivers stable power with military-grade components and extensive cooling, including large VRM heatsinks and thermal pads for consistent thermal performance.

Realtek 2.5Gb Ethernet
Fast, reliable wired networking with low latency—ideal for competitive gaming, content sharing, and stable file transfers.

HDMI & DisplayPort Outputs
Provides flexible video output options for builds using integrated graphics or for initial diagnostics during setup.

TUF Gaming Audio with Shielding Technology
Enjoy clean and immersive audio backed by shielding and premium components for entertainment, streaming, and voice clarity.

DIY-Ready Features: BIOS FlashBack & Q-LED
Simplify your build with easy BIOS updates and LED indicators for hardware diagnostics—perfect for efficient and reliable system assembly.

ASUS Armoury Crate with Aura Sync
Take full control of your system lighting, fan profiles, and hardware monitoring through a unified, intuitive interface with Aura Sync RGB compatibility.
