| Chipset | X670 |
| Slots | 4 x DIMM |
| Supported Memory | 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 MHz, ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXPO, OptiMem |
| Maximum Memory | 192GB |
| RAM Type | DDR5 |
| Graphics | 1 x DisplayPort (max 8K@60Hz, DisplayPort 1.4), 1 x HDMI port (max 4K@60Hz, HDMI 2.1) |
| Supported CPU | AMD Ryzen 9000, 8000, and 7000 Desktop Processors |
| PCI | 1 x PCIe 5.0 x16 (Processor), 1 x PCIe 4.0 x16 (Chipset), 1 x PCIe 3.0 x4 (Chipset) |
| USB | Rear USB: 1 x USB 3.2 Gen 2x2 Type-C, 9 x USB 3.2 Gen 2 (7 x Type-A, 2 x Type-C), 2 x USB 2.0; Internal USB: 1 x USB 3.2 Gen 2x2 header (Type-C), 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) |
| Internal I/O Ports | Fan & Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 5 x 4-pin Chassis Fans; Power: 1 x 24-pin Main Power, 2 x 8-pin +12V; Storage: 4 x M.2 (Key M), 4 x SATA 6Gb/s |
| Supported Storage | 1 x PCIe 5.0 x4 (Processor), 1 x PCIe 5.0 x4 (Processor), 1 x PCIe 4.0 x4 (Chipset), 1 x PCIe 4.0 x4 (Chipset), 4 x SATA 6Gb/s |
| Wireless Communication module | Wi-Fi 6E, Bluetooth v5.2 |
| Special Features | Extreme Engine Digi+ with 5K Black Metallic Capacitors, ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED [CPU red, DRAM yellow, VGA white, Boot Device yellow-green], Q-Slot), ASUS Thermal Solution (M.2 heatsinks, M.2 heatsink backplate, VRM |
| Processor Type | AMD |
| Brand | Asus |
| CPU Sockets | AM5 |

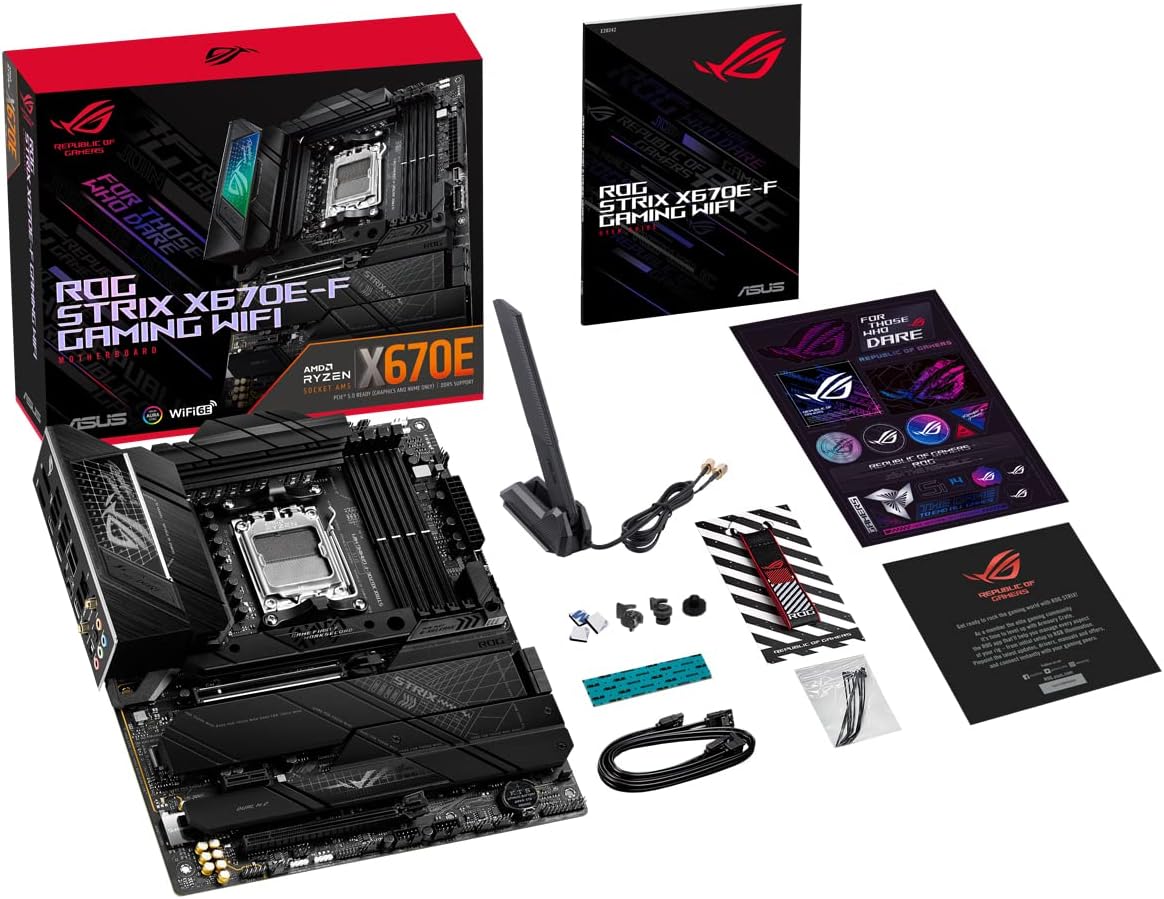

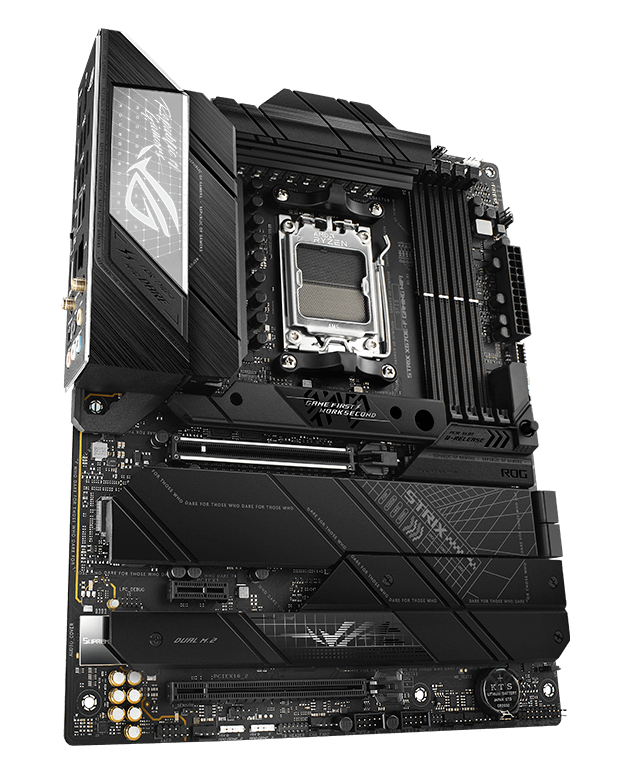

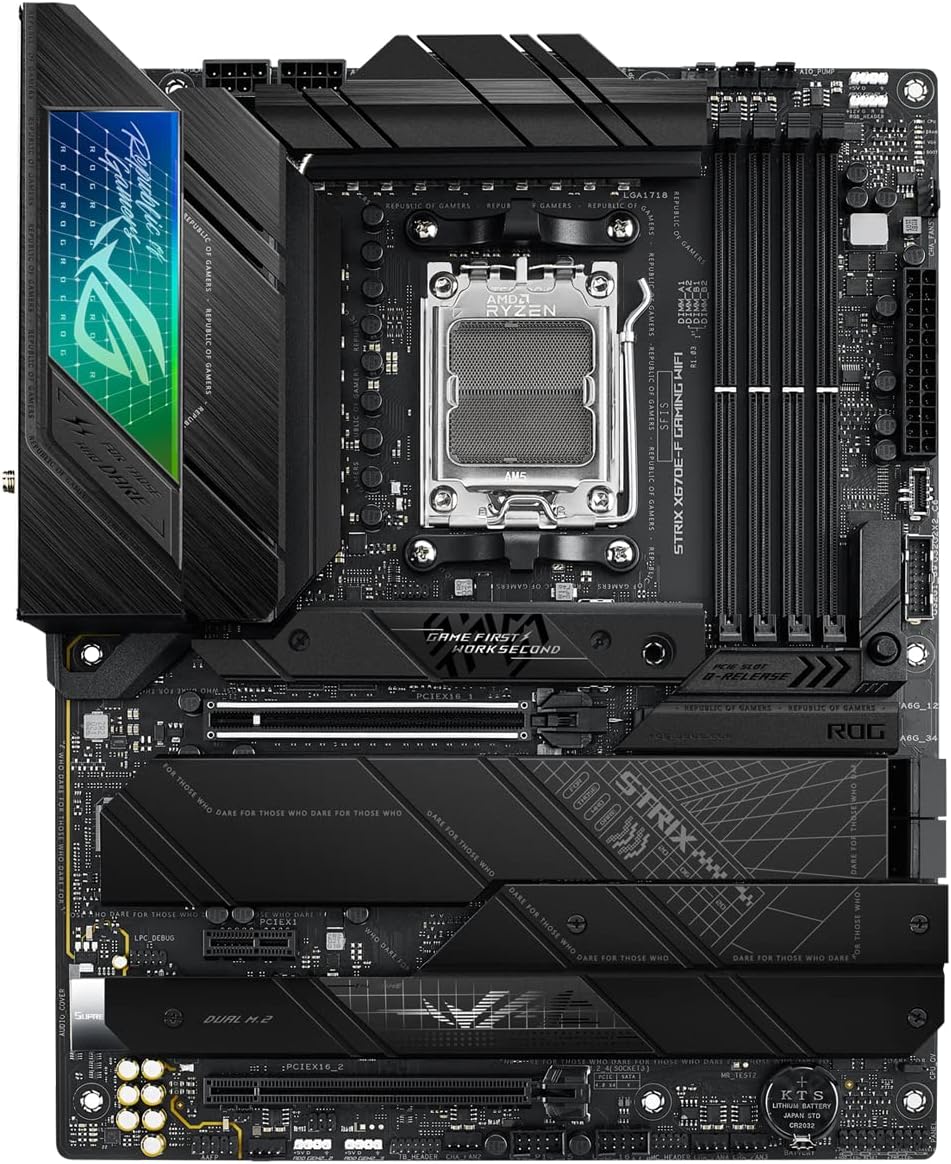

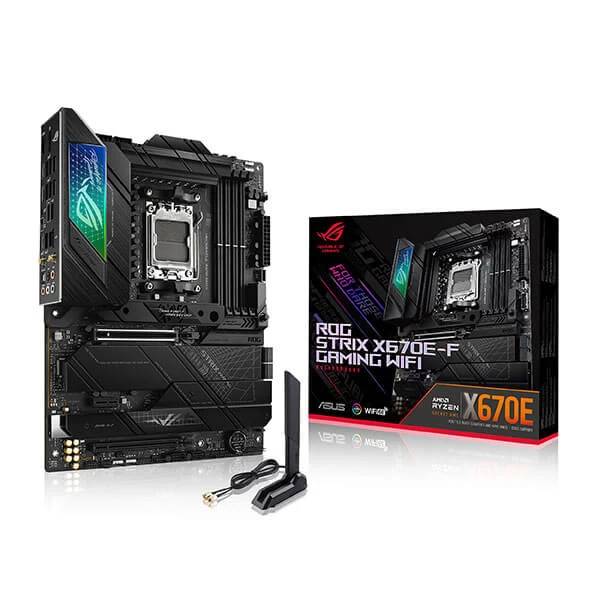

The ASUS ROG STRIX X670E-F GAMING WIFI 6E is a high-performance ATX motherboard designed for AMD’s Ryzen 7000 series processors, featuring the AM5 socket and X670E chipset. It offers advanced connectivity, robust power delivery, and comprehensive cooling solutions, making it ideal for gaming, content creation, and productivity tasks.
Processor Support: Compatible with AMD Ryzen 7000 series processors (AM5 socket).
Memory Support: Supports up to 192GB of DDR5 memory with speeds up to 6400MHz (OC).
Expansion Slots:
1 x PCIe 5.0 x16 SafeSlot (CPU)
1 x PCIe 4.0 x16 slot (PCH, at x4 mode)
1 x PCIe 3.0 x1 slot (PCH)

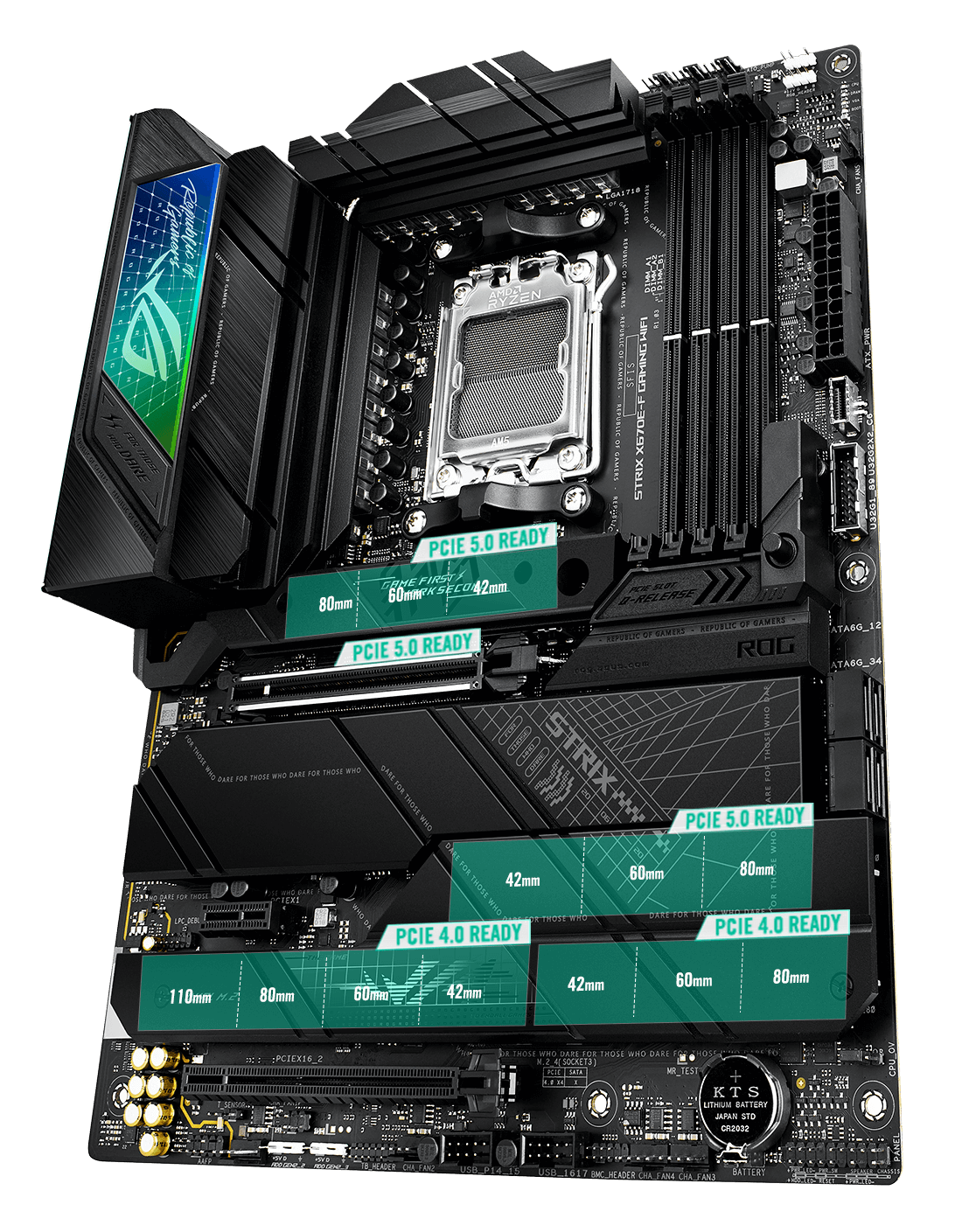

Storage Options:
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Networking:
1 x Realtek 2.5Gb Ethernet
WiFi 6E (802.11ax)
USB Ports:
1 x USB 3.2 Gen 2x2 Type-C®
3 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Video Outputs:
1 x HDMI® port
Cooling Solutions:
VRM heatsink array
3 x M.2 heatsinks
AIO pump header
Chipset heatsink
5 x 4-pin PWM chassis fan headers
Lighting: Aura Sync RGB lighting with addressable Gen 2 headers
Form Factor: ATX (12 x 9.6 inches)
The ASUS ROG STRIX X670E-F GAMING WIFI 6E motherboard is an excellent choice for users seeking a reliable and feature-rich platform for building high-performance systems.
