| Model | ASUS TUF GAMING B650-PLUS WiFi |
| Part Number | |
| Supported CPU | AMD Ryzen 9000, 8000, and 7000 Desktop Processors |
| Chipset | B650 |
| Form Factor | ATX |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| PCI | 1 x PCIe 4.0 x16 (Processor), 1 x PCIe 4.0 x16 (Chipset), 2 x PCIe 4.0 x1 (Chipset) |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 MHz, ECC & Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXPO, OptiMem II |
| Maximum Memory | 128GB |
| Graphics | 1 x DisplayPort (max 8K@60Hz, DisplayPort 1.4), 1 x HDMI port (max 4K@60Hz, HDMI 2.1) |
| HDMI | 1 x HDMI port |

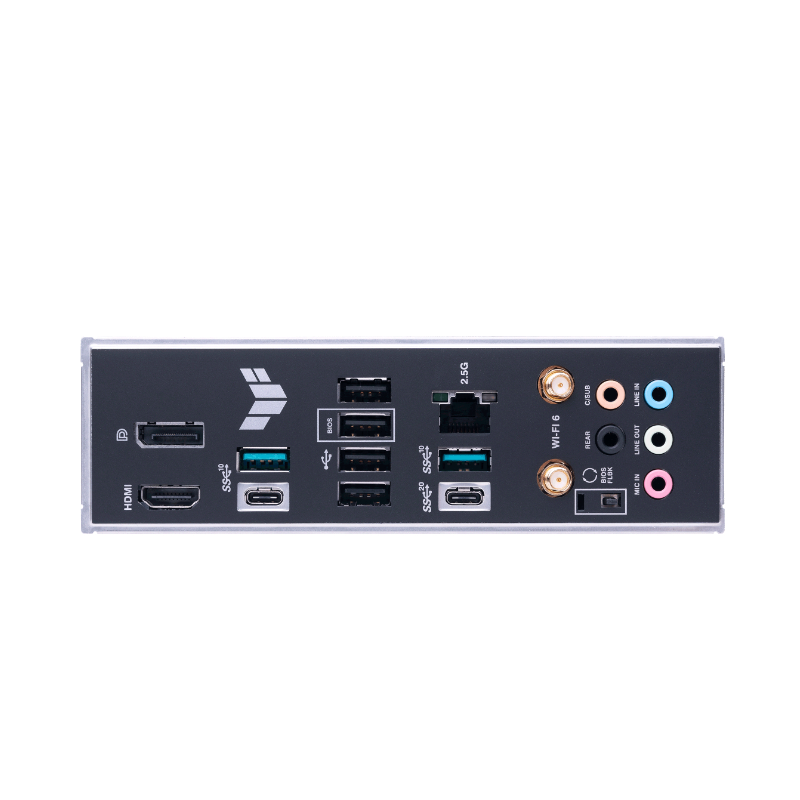

| USB | Rear USB: 1 x USB 3.2 Gen 2x2 (Type-C), 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C), 4 x USB 2.0 (Type-A) |
| LAN Port | 1 x Realtek 2.5Gb Ethernet |
| Internal I/O Ports | Fan & Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fans; Power: 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V; Storage: 3 x M.2 (Key M), 4 x SATA 6Gb/s |
| Supported Storage | 1 x PCIe 5.0 (Processor), 1 x PCIe 4.0 (Processor), 1 x PCIe 4.0 (Chipset), 4 x SATA 6Gb/s |
| Audio | Realtek 7.1 audio |
| Wireless Communication Module | Wi-Fi 6, Bluetooth v5.2 |
| Special Features | ASUS TUF PROTECTION (DIGI+ VRM with DrMOS, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot), ASUS Thermal Solution (M.2 heatsink, VRM heatsink design), ASUS EZ DIY (BIOS FlashBack button, BIOS FlashBack LED, ProCool, Pre-mounted I/O shield, SafeDIMM), Aura Sync (Aura RGB header, Addressable Gen 2 headers) |
| Warranty | 3 Years |

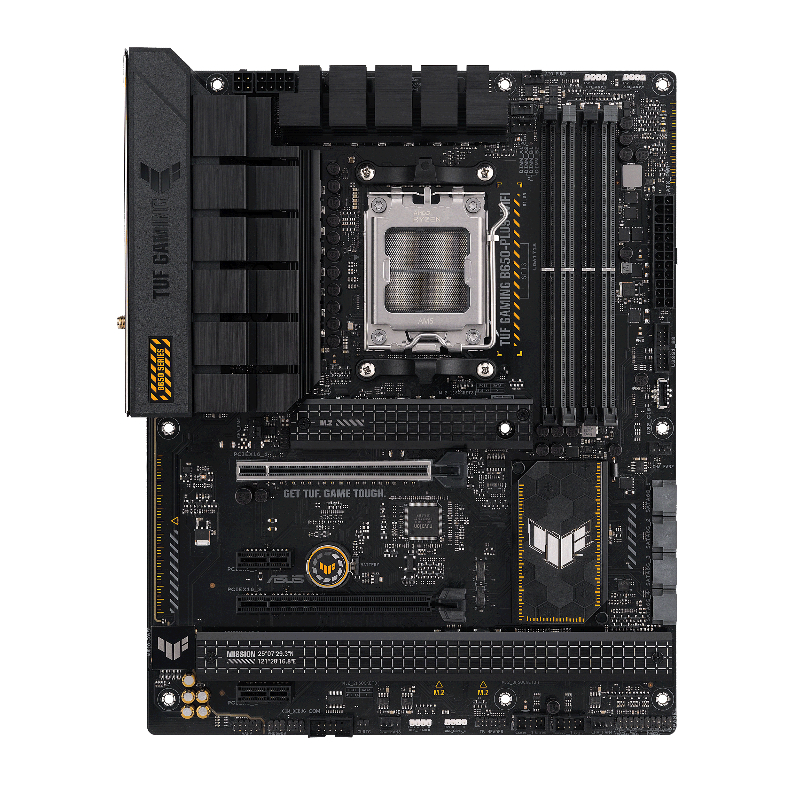

The ASUS TUF Gaming B650-PLUS WiFi blends next-gen performance with the durability and stability that TUF is known for. Powered by the AMD B650 chipset and designed for AM5 socket processors, it supports the latest Ryzen 9000, 8000, and 7000 series CPUs. With high-speed DDR5 memory, PCIe 5.0 readiness, robust cooling, and military-grade components, this motherboard delivers reliability for both gaming and professional use. Built with DIY-friendly features and TUF Protection, it’s a dependable foundation for long-lasting PC builds.
AM5 Socket with B650 Chipset
Compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors, offering the latest platform performance and stability.
High-Performance DDR5 Memory
Supports up to 128GB DDR5 RAM with speeds up to 6400MHz+ (OC) and AMD EXPO profiles for effortless overclocking.
PCIe Expansion Ready
Includes 1x PCIe 4.0 x16 (Processor), 1x PCIe 4.0 x16 (Chipset), and 2x PCIe 4.0 x1 slots for flexible hardware upgrades.
Fast Storage Options
Equipped with 1x PCIe 5.0 M.2 slot, 2x PCIe 4.0 M.2 slots, and 4x SATA 6Gb/s ports to support high-speed drives and large storage arrays.
Robust Cooling & Thermal Design
Features VRM and M.2 heatsinks, along with multiple fan headers, ensuring stable performance even under heavy workloads.
Reliable Networking & Wireless
Comes with Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth v5.2 for smooth online gaming, streaming, and device connectivity.
Immersive Audio
Powered by Realtek 7.1-channel high-definition audio for clear and dynamic sound quality.
Built-In TUF Protection
Includes enhanced ESD guards, stainless-steel back I/O, SafeSlot Core+, and reinforced power delivery for long-term durability.
DIY-Friendly ASUS Q-Design
Incorporates M.2 Q-Latch, Q-DIMM, Q-LED diagnostics, pre-mounted I/O shield, BIOS FlashBack, and SafeDIMM for easy building and maintenance.
Aura Sync RGB Lighting
Supports customizable RGB and Addressable Gen 2 headers for synchronized lighting effects across your system.
