Chipset – Intel H470
Sockets Supported – LGA1200
Supported CPU – Intel 11th & 10th Gen Core, Pentium, and Celeron Processors
Memory Slots – 2 × DDR4 DIMM, up to 64GB, Dual-Channel
Graphics Output – 1 × D-Sub port (Max 1920×1200 @ 60Hz)
| Model | GIGABYTE H510M S2 |
| Supported CPU | Intel 11th & 10th Gen Core, Pentium, and Celeron Processors |
| Chipset | H470 |
| Form Factor | ATX |
| BIOS | 256 Mbit flash, UEFI AMI BIOS |
| PCI | 1 x PCIe 3.0 x16 (Processor), 1 x PCIe 3.0 x1 (Chipset) |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | 11th Gen Intel Core i9/i7/i5: DDR4 3200/3000/2933/2666/2400/2133 MHz; 10th Gen Intel Core i9/i7: DDR4 2933/2666/2400/2133 MHz; 10th Gen Intel Core i5/i3/Pentium/Celeron: DDR4 2666/2400/2133 MHz; Supports ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, XMP modules; Dual-channel architecture |
| Maximum Memory | 64 GB |
| Graphics | Integrated Intel HD Graphics: 1 x D-Sub port (max 1920x1200@60 Hz) |
| HDMI | N/A |

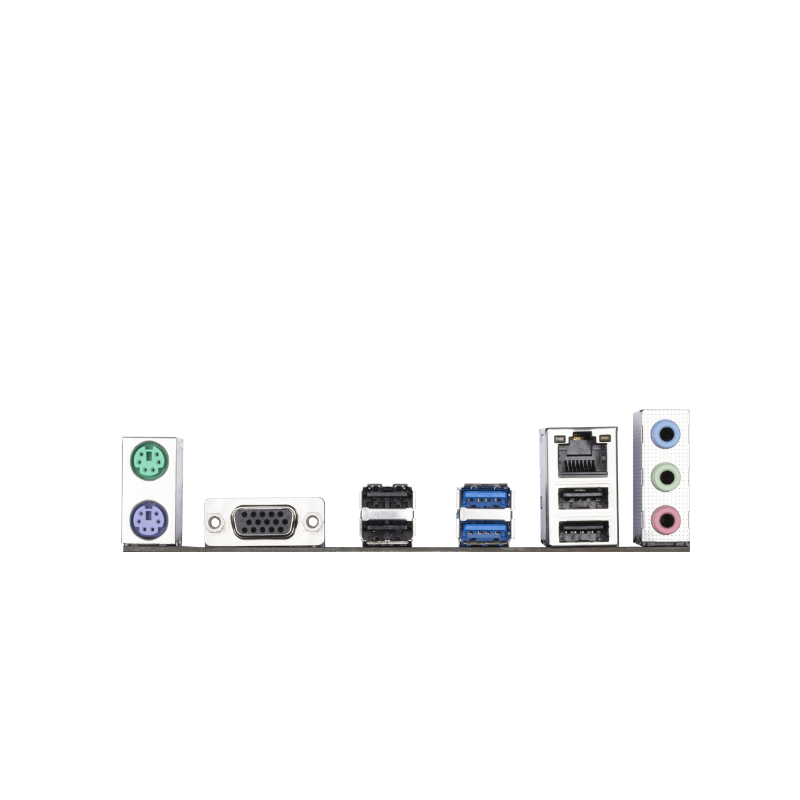

| USB | 4 x USB 3.2 Gen 1 (2 rear, 2 internal), 6 x USB 2.0/1.1 (4 rear, 2 internal) |
| LAN Port | Realtek GbE |
| Internal I/O Ports | 1 x 24-pin ATX power, 1 x 8-pin ATX 12V power, 1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x serial port header, 1 x parallel port header, 1 x Clear CMOS jumper |
| Supported Storage | 1 x PCIe 3.0 (Processor), 4 x SATA 6Gb/s |
| Audio | Realtek audio |
| Wireless Communication Module | N/A |
| Special Features | GIGABYTE APP Center, @BIOS, Ambient LED, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer, Q-Flash, Xpress Install |
| Warranty | 3 Years |

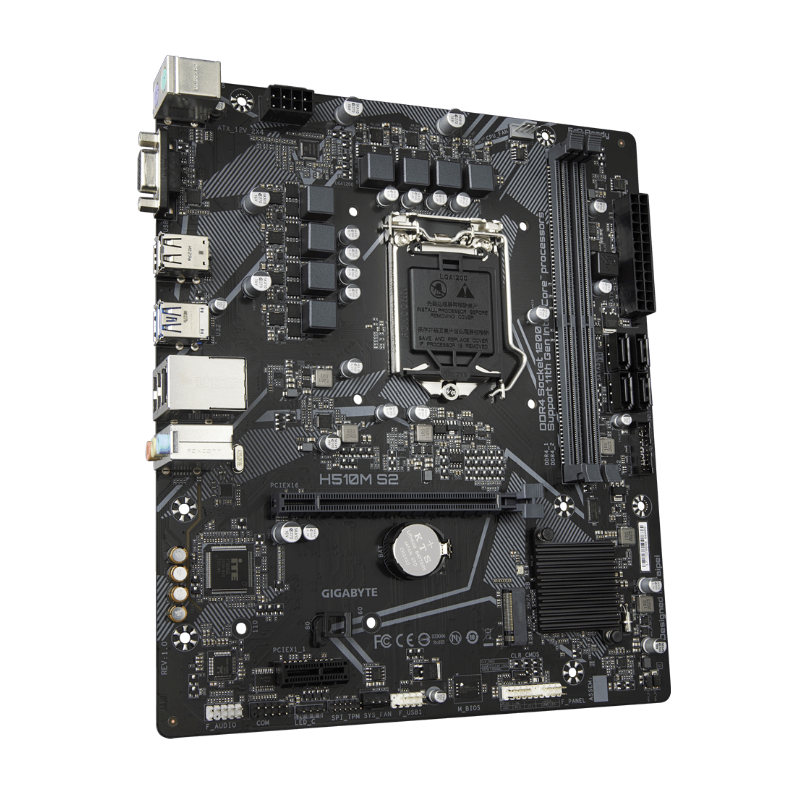

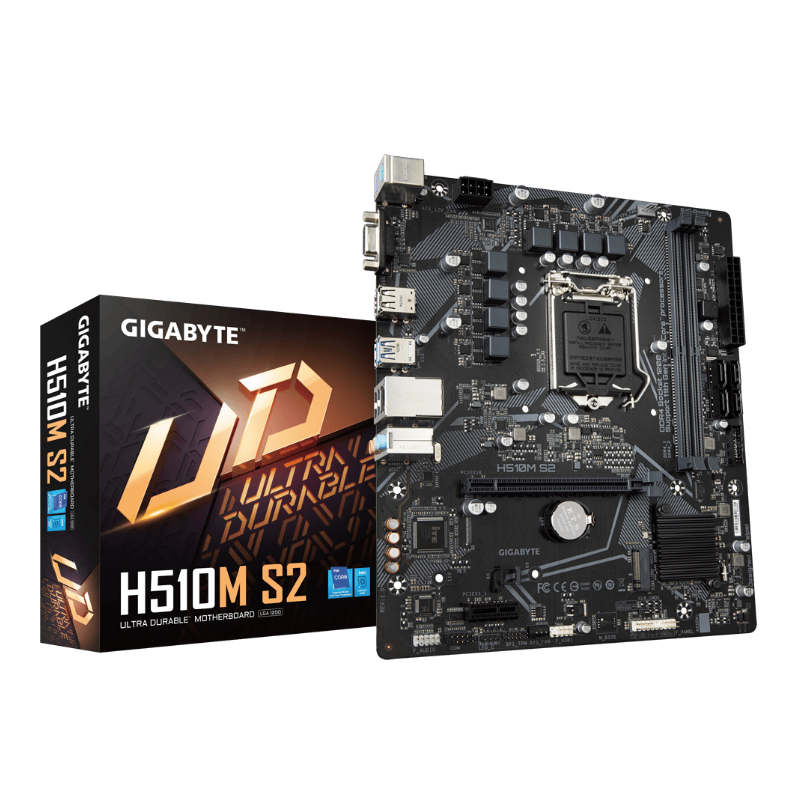

The GIGABYTE H510M S2 is a cost-effective and dependable micro-ATX motherboard built for Intel’s 10th and 11th Gen Core processors. Designed with DDR4 memory support, high-quality components, and essential connectivity, it delivers stable performance for everyday computing, office systems, and entry-level gaming builds. With a compact design and GIGABYTE’s Ultra Durable engineering, this board ensures long-term reliability.
LGA1200 Socket with Intel 10th & 11th Gen Support
The H510M S2 is compatible with Intel Core i9, i7, i5, i3, Pentium Gold, and Celeron processors from the 10th and 11th Gen series. Its optimized power delivery ensures stability for both work and light gaming.
DDR4 Memory Support
It supports up to 64GB of DDR4 memory across dual DIMM slots, with speeds up to 3200MHz (11th Gen CPUs) and 2933MHz (10th Gen CPUs). This makes it ideal for multitasking and budget-friendly performance upgrades.
PCIe and Expansion Options
The motherboard includes a PCIe x16 slot for discrete GPUs and a PCIe x1 slot for expansion cards. This allows users to enhance graphics or add additional functionality based on their system needs.
Storage & Connectivity
Equipped with 4 SATA III ports for HDDs and SSDs, the H510M S2 offers ample storage expandability. It also supports M.2 NVMe storage (depending on variant), giving users fast boot times and improved data speeds.
High-Quality Audio & LAN
Built-in Realtek Audio chipset delivers clear sound for media and everyday use, while a Gigabit LAN port ensures stable and reliable internet connectivity.
Ultra Durable Design
With GIGABYTE’s solid capacitors, humidity protection, and surge-resistance features, the H510M S2 is designed for long-lasting performance and durability.
Compact Micro-ATX Form Factor
The micro-ATX design makes it compatible with a wide range of PC cases, offering flexibility for compact builds without compromising essential features.
