| Supported CPU | AMD Ryzen 7000 Series Desktop Processors for Socket AM5 (LGA 1718) |
| Chipset | AMD X670 |
| Form Factor | ATX (30.5 x 24.4 cm / 12 x 9.6 inches) |
| BIOS | 256 MB Flash ROM, UEFI AMI BIOS with FlashBack support |
| PCI | 1 x PCIe 4.0 x16 slot (CPU lanes, up to x16), 2 x PCIe 4.0 x16 slots (wired as x4 by chipset) |
| Type | DDR5, dual channel |
| Slots | 4 DIMM |
| Supported Memory | Up to DDR5-6400+/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, EXPO supported (OC up to 6400u20137600 MHz depending on CPU model) |
| Maximum Memory | 128 GB |
| Graphics | 1 x DisplayPort 1.4 (up to 8K at 60 Hz), 1 x HDMI 2.1 (up to 4K at 60 Hz) |
| HDMI | 1 x HDMI 2.1 |

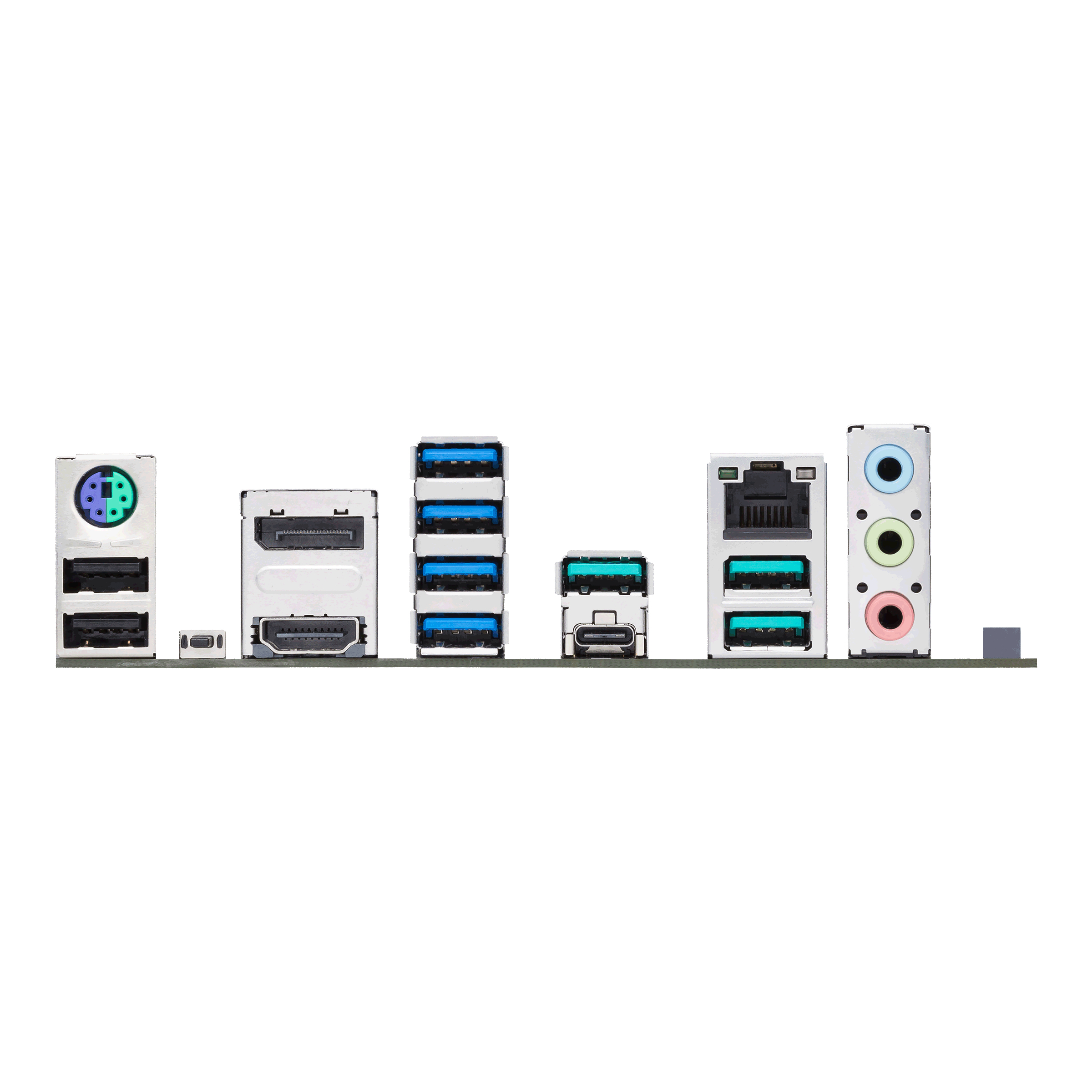

| USB | Rear: 1 x USB 3.2 Gen 2x2 Type C, 3 x USB 3.2 Gen 2 Type A, 4 x USB 3.2 Gen 1 Type A, 2 x USB 2.0 Type-A; Internal headers: 1 x USB 3.2 Gen 1 header (Type-C capable), 2 x USB 3.2 Gen 1 front headers, 2 x USB 2.0 headers |
| LAN Port | 1 x Realtek 2.5Gb Ethernet |
| Internal I/O Ports | 1 x 24-pin ATX main power, 1 x 8-pin CPU power, 1 x CPU fan header, 1 x CPU OPT, 3 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 1 header (Type C capable), 2 x USB 3.2 Gen 1 front headers, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 20-5 pin System Panel header |
| Supported Storage | 1 x M.2 Key-M slot (PCIe 5.0 x4 for Ryzen 7000 Series), 2 x M.2 Key-M slots (PCIe 4.0 x4 via chipset), 6 x SATA 6 Gb/s ports |
| Audio | Realtek 7.1 HD Audio CODEC with shielding, premium capacitors, rear jacks + front panel support |
| Wireless Communication Module | V-M.2 slot only (Key E, PCIe) |
| Special Features | ASUS 5X PROTECTION III |
| Warranty | 3 Years |

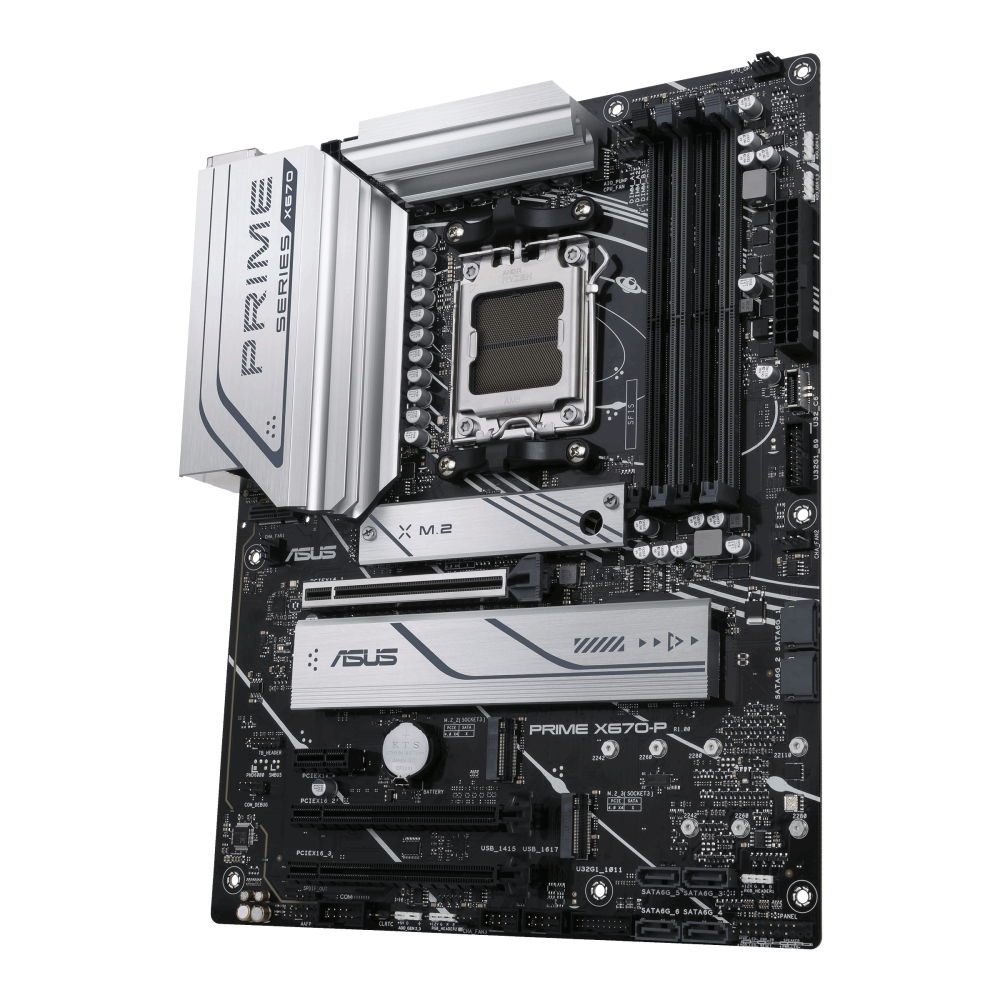

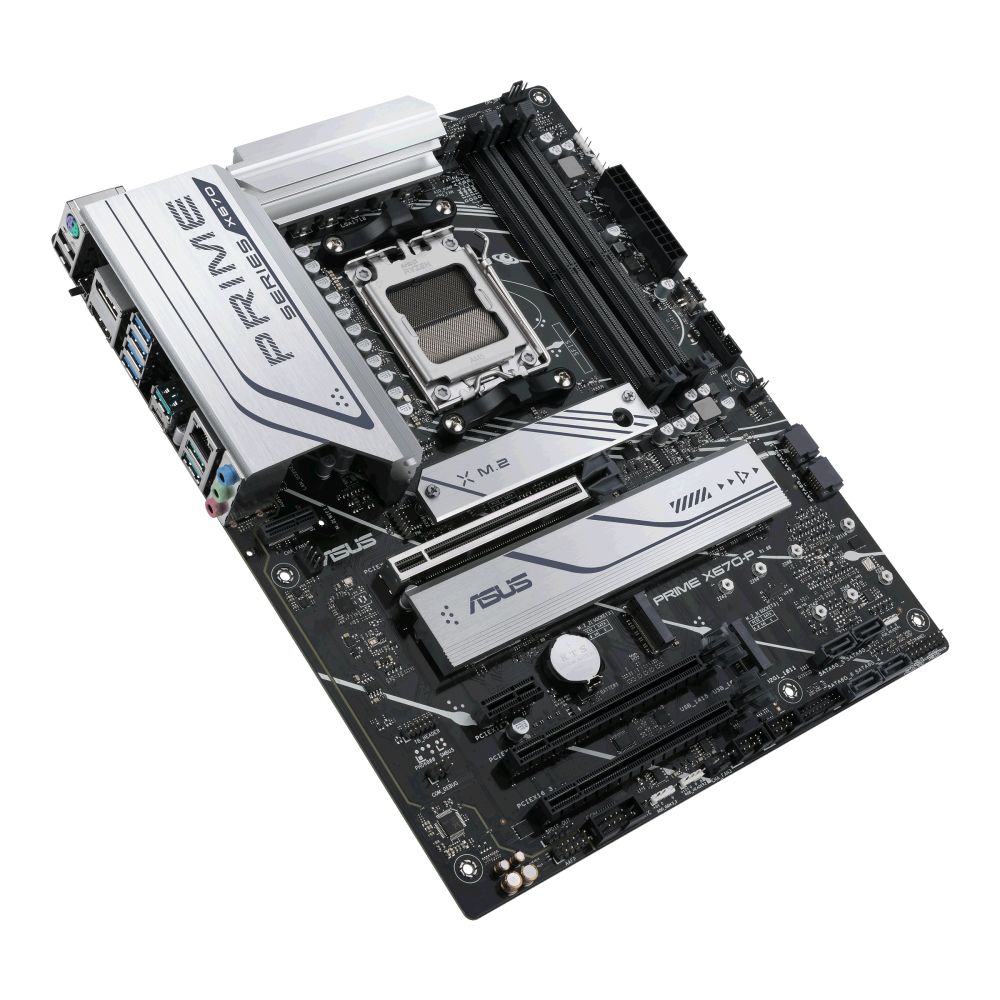

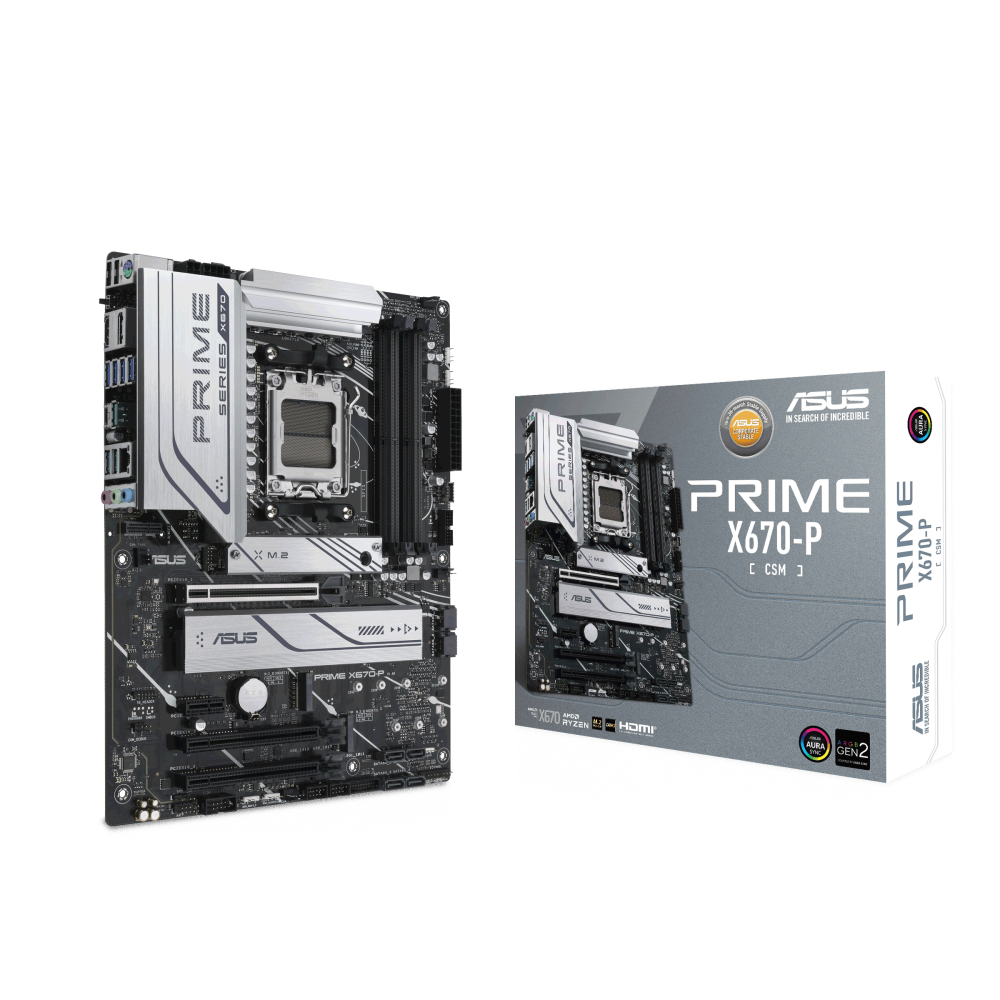

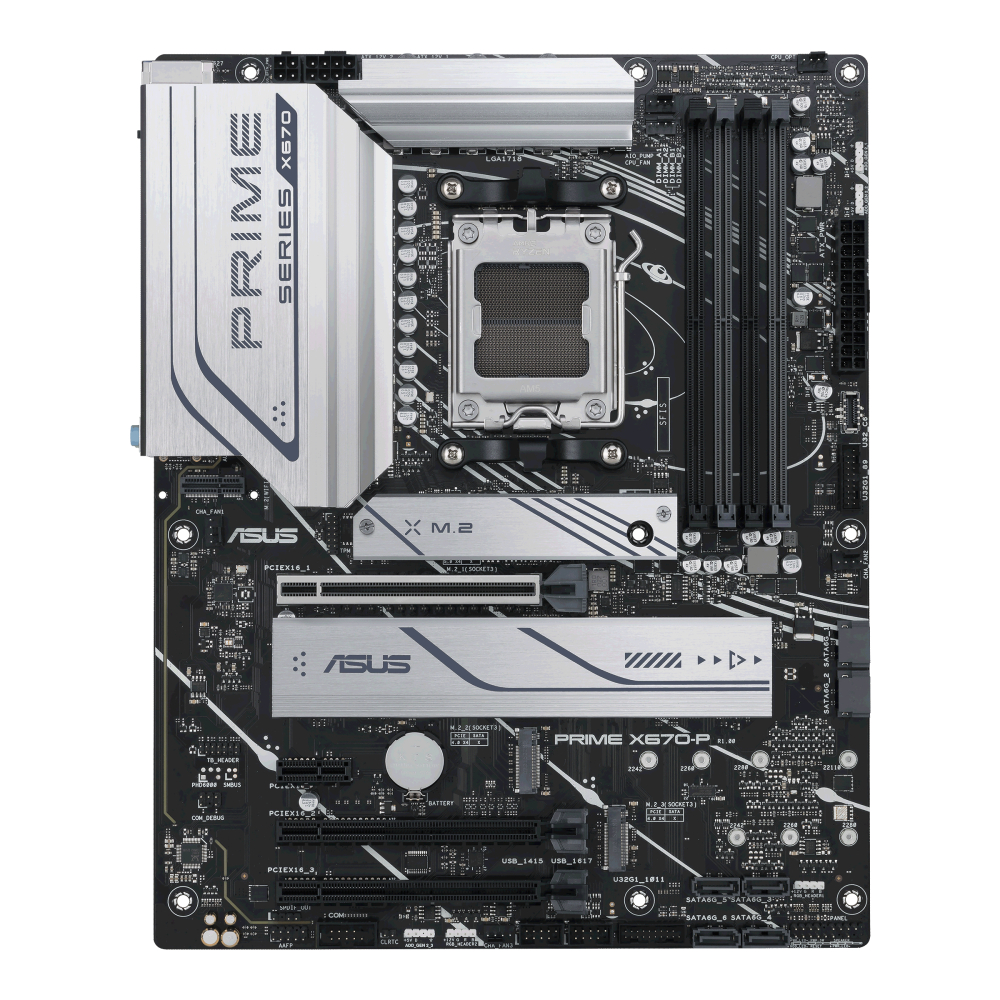

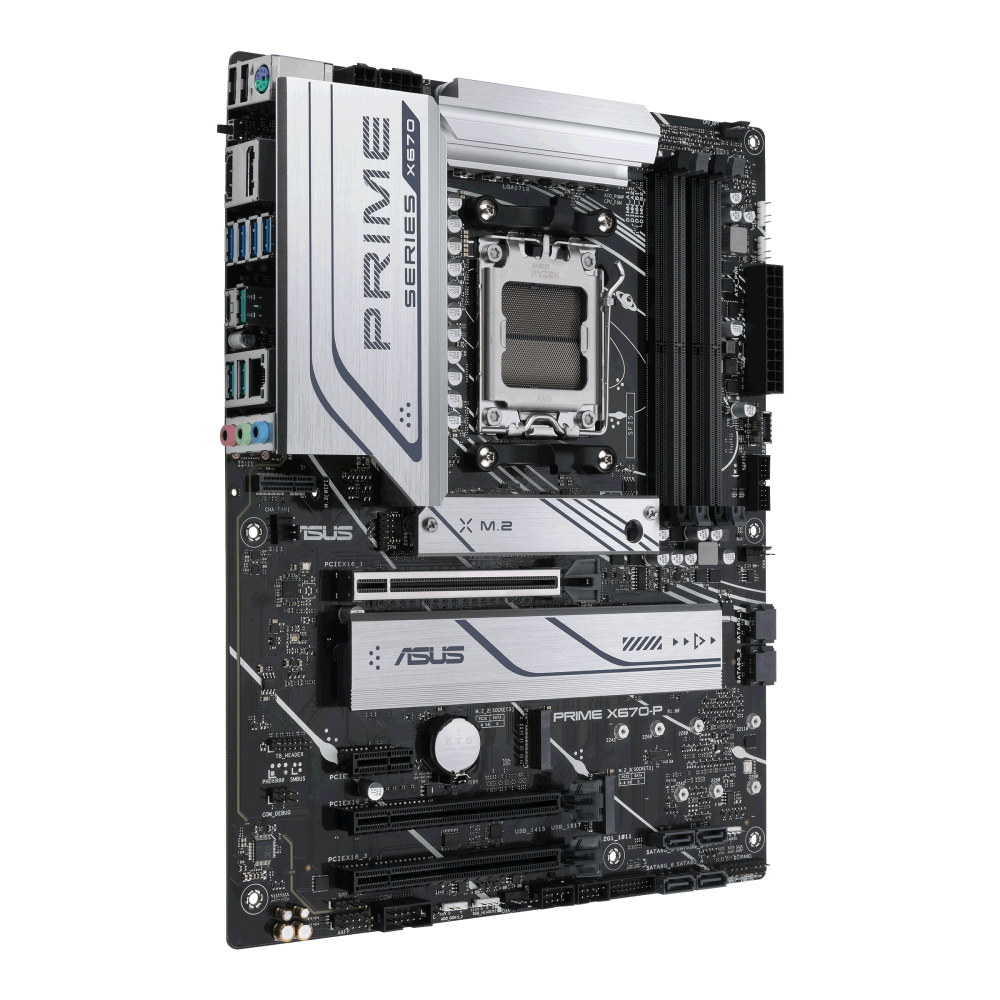

The ASUS PRIME X670-P WIFI is engineered to unleash the full potential of AMD Ryzen 7000 Series processors. Built on the advanced X670 chipset and supporting the latest DDR5 memory and PCIe 5.0 standards, this ATX motherboard is ideal for users looking to build high-performance systems for productivity, gaming, or content creation with future-ready technology.
AMD AM5 Socket with X670 Chipset
Optimized for Ryzen 7000 Series CPUs, this motherboard delivers top-tier efficiency and performance, supporting advanced features like PCIe 5.0 and DDR5 RAM.
DDR5 Memory Support
Supports up to 128GB of dual-channel DDR5 memory with enhanced bandwidth and lower power consumption—ideal for intensive multitasking and modern software applications.
PCIe 5.0 Ready & Multiple M.2 Slots
Offers PCIe 5.0 x16 slot for next-gen GPUs and four M.2 slots (including PCIe 5.0 x4 support) for ultra-fast NVMe SSDs, ensuring high-speed storage and smooth graphics performance.
Wi-Fi 6 & Bluetooth 5.2 Built-In
Integrated Intel Wi-Fi 6 and Bluetooth 5.2 provide faster, more reliable wireless connectivity, low latency, and wide coverage—great for remote work, streaming, or online gaming.
14+2 DrMOS Power Stages
Robust power delivery ensures stable performance under heavy CPU loads, with alloy chokes and durable capacitors that help maintain system reliability over time.
Advanced Cooling Solutions
Features large VRM heatsinks, M.2 heatsinks, hybrid fan headers, and Fan Xpert 4 support to maintain thermal performance even during high-intensity tasks.
USB 3.2 Gen 2x2 Type-C Connectivity
Front and rear USB-C ports deliver ultra-fast data transfer rates for compatible devices, ideal for external SSDs, smartphones, and peripherals.
Realtek 2.5Gb Ethernet
Upgraded wired networking enhances file transfers, streaming, and multiplayer gaming with reduced lag and increased throughput.
Customizable Aura Sync RGB Header
Personalize your build with addressable Gen 2 RGB headers and synchronize lighting effects across compatible components.
A complete eCommerce solution for IT products in Bangladesh.
Build your next-gen powerhouse with the ASUS PRIME X670-P WIFI, now available at Eastern IT.
