| Supported CPU | Intel 12th, 13th, and 14th Gen Core processors |
| Chipset | Intel Z790 |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| BIOS | 192 Mb Flash ROM, UEFI AMI BIOS with EZ Flash 3 and CrashFree BIOS 3 |
| PCI | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x 16 slot (wired as x 4), 2 x PCIe 4.0 x 1 slots |
| Type | DDR4, dual-channel |
| Slots | 4 DIMM |
| Supported Memory | Up to DDR4-5333 (OC), DDR4-3200, DDR4-2133 |
| Maximum Memory | 128 GB |
| Graphics | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 2.1 |
| USB | Rear: 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A; Internal headers: 1 x USB 3.2 Gen 1 header (supports USB Type-C), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| LAN Port | 1 x Realtek 2.5Gb Ethernet |
| Internal I/O Ports | 1 x 24-pin ATX main power, 1 x 8-pin CPU power, 1 x CPU fan header, 1 x CPU_OPT, 3 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 1 header (supports USB Type-C), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderboltu2122 (USB4) header |
| Supported Storage | 3 x M.2 slots (Key M), 4 x SATA 6 Gb/s ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Wireless Communication Module | N/A |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), robust VRM heatsink, BIOS FlashBacku2122 button & LED, Aura Sync RGB, OptiMem II for improved memory OC, Armory Crate, AI Suite 3, Fan Xpert 4, BIOS CrashFree, UEFI EZ Flash |
| Warranty | 3 Years |

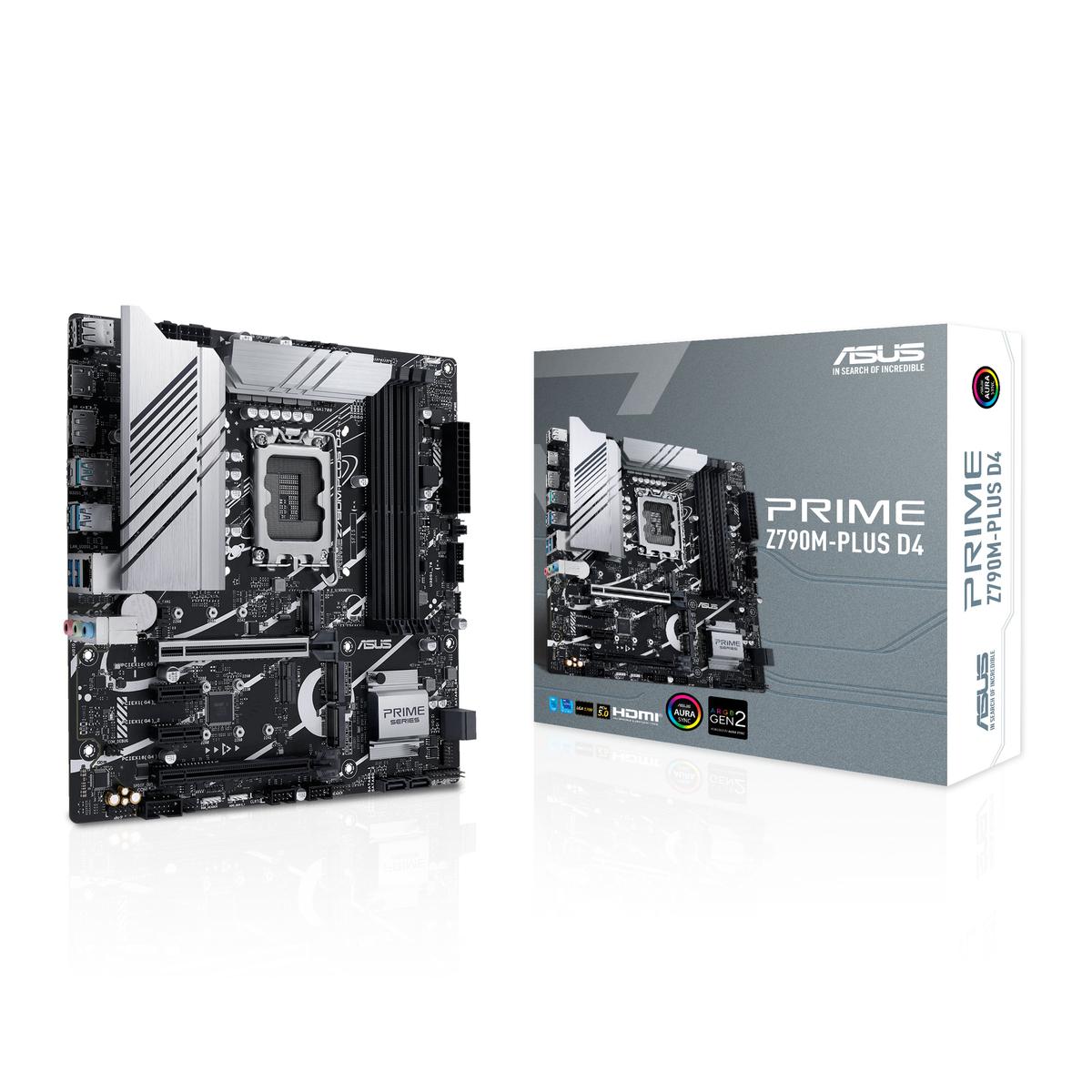

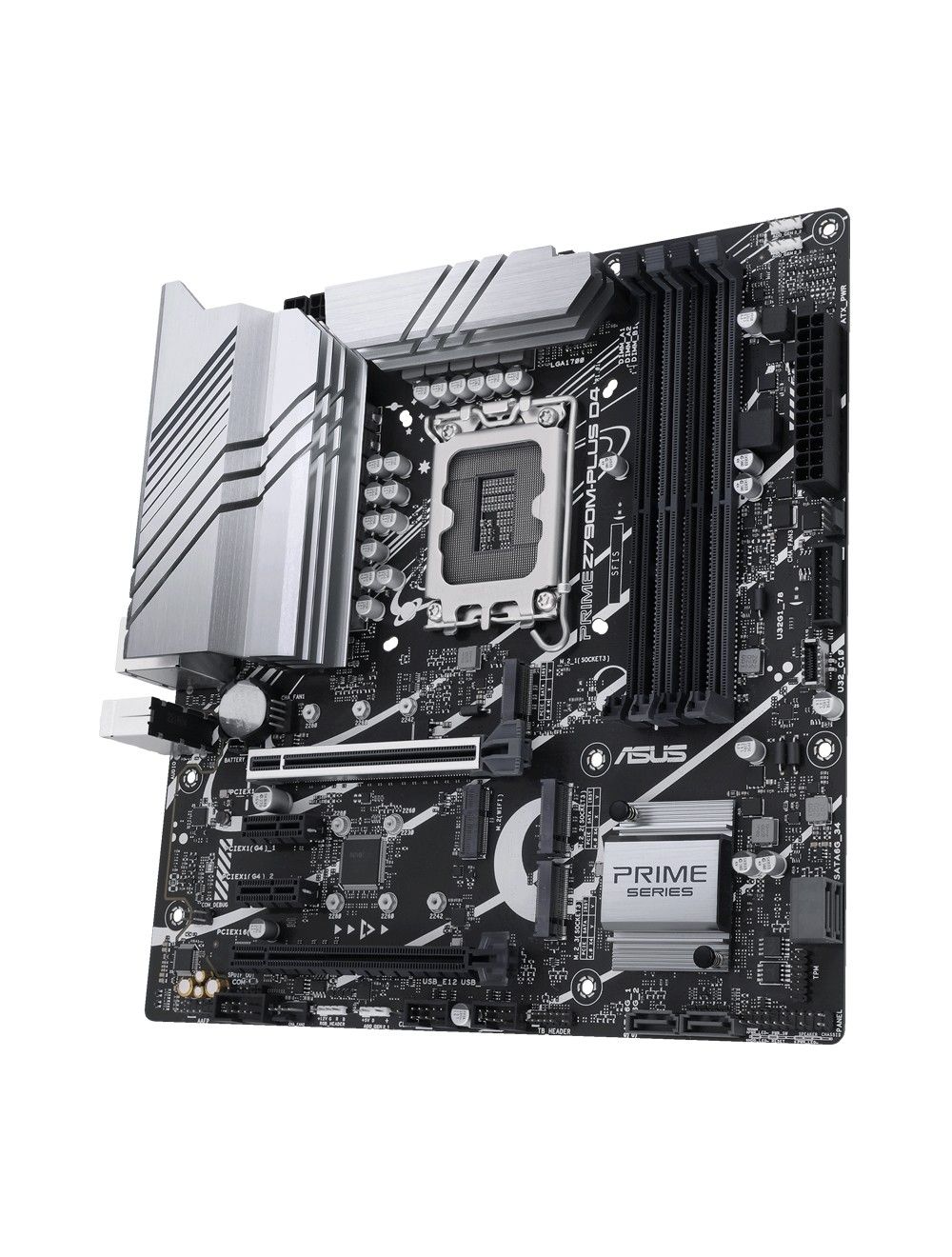

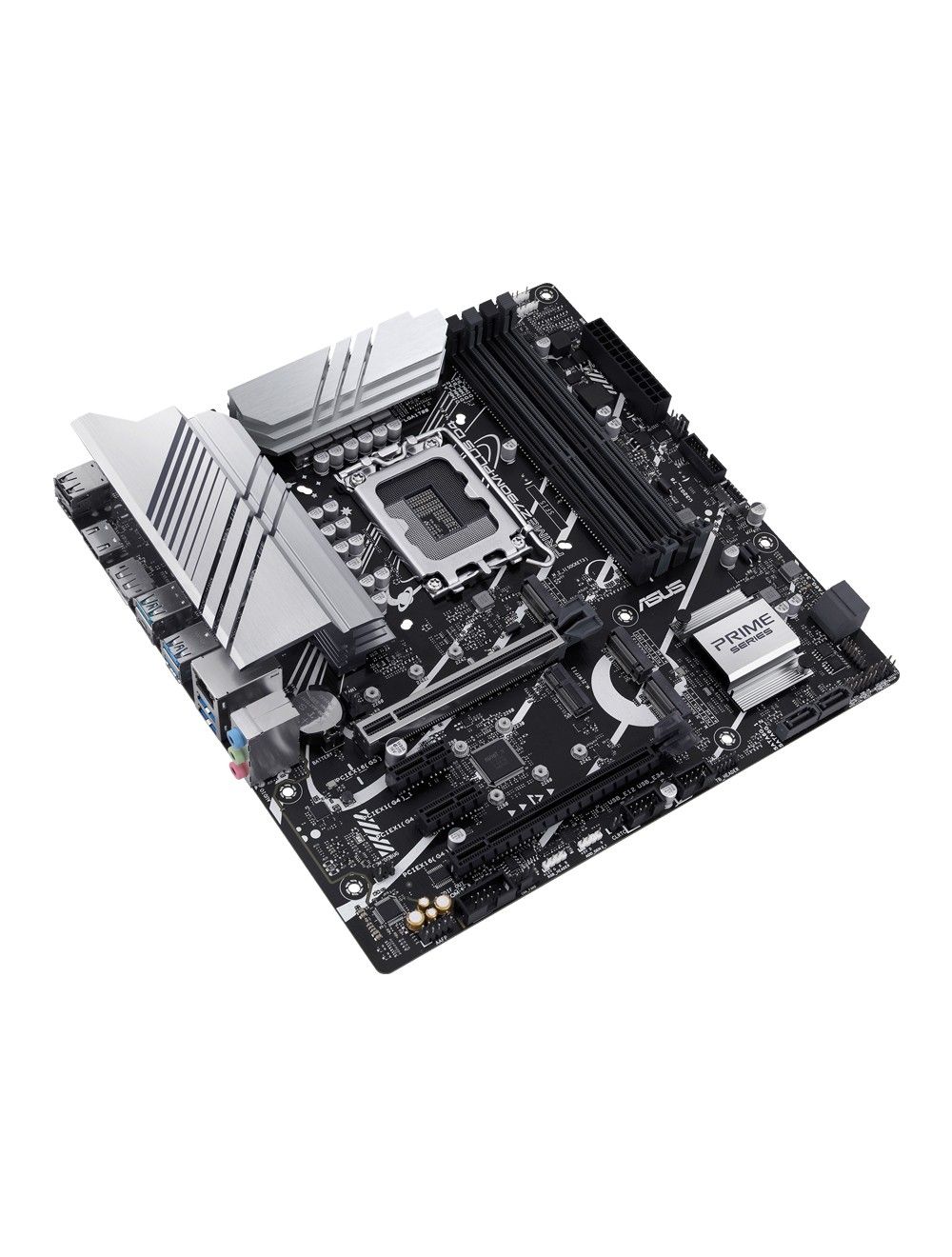

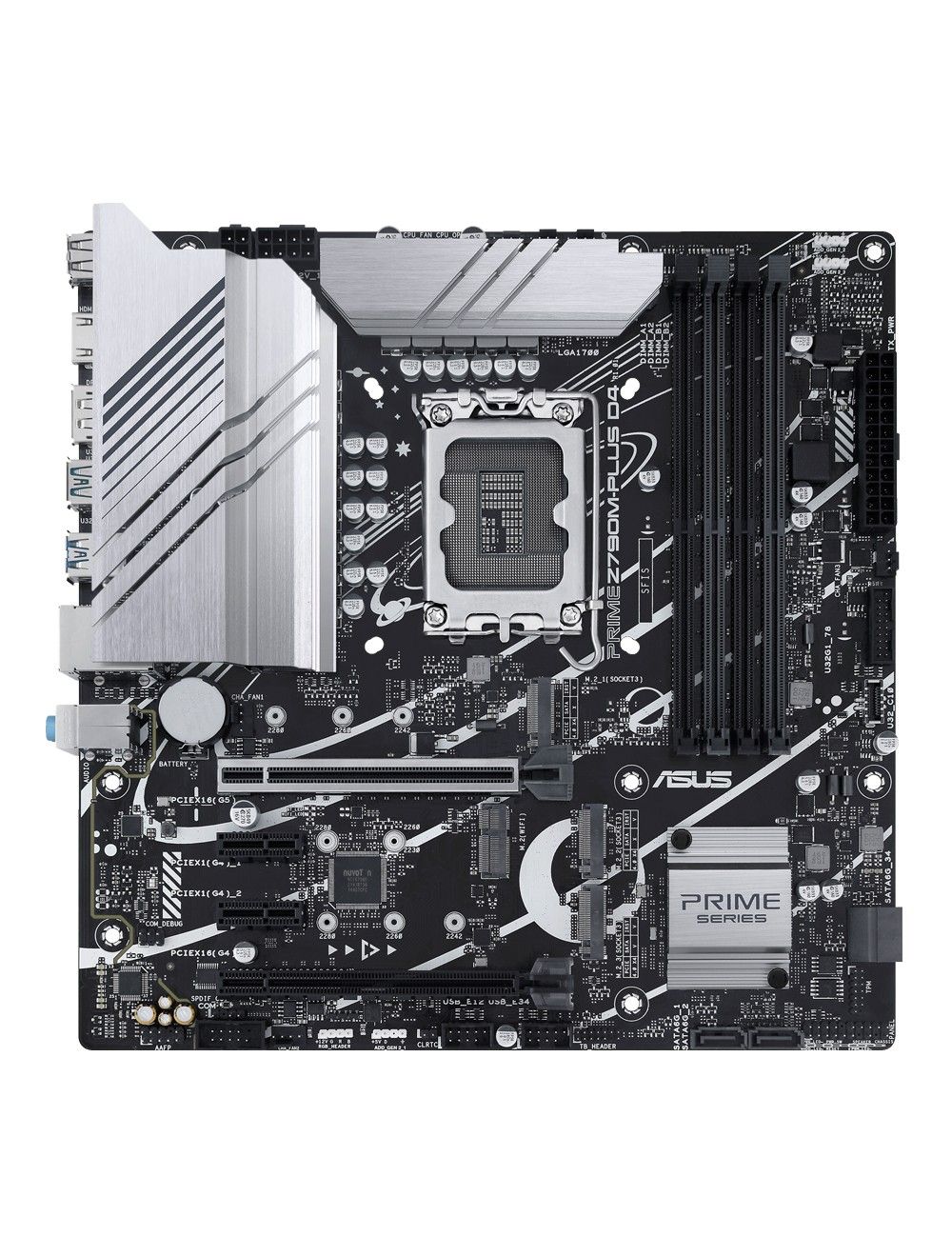

The ASUS PRIME Z790M-PLUS D4 motherboard delivers high-end performance in a micro-ATX form factor, making it an excellent choice for users building compact systems powered by Intel’s 12th, 13th, or 14th Gen Core processors. With support for high-speed DDR4 memory, PCIe 5.0 graphics, and fast M.2 storage, it's designed for productivity, mainstream gaming, and professional use on a future-ready platform.
Intel LGA 1700 Socket with Z790 Chipset
Compatible with Intel’s latest 12th to 14th Gen Core CPUs, this motherboard offers top-tier computing power, making it suitable for demanding applications and multitasking environments.
DDR4 Memory Support up to 5333 MHz (OC)
Supports up to 128GB of overclocked DDR4 memory, combining performance with affordability for users who prefer tried-and-tested memory standards.
PCIe 5.0 and Dual M.2 Slots
Includes a PCIe 5.0 x16 slot for next-generation graphics cards and dual PCIe 4.0 M.2 slots to enable blazing-fast SSD storage—ideal for quicker boot times and seamless data access.
Optimized Power Architecture
Equipped with high-quality power stages and durable capacitors to ensure stable voltage delivery during CPU-intensive tasks and long workloads.
Compact Micro-ATX Design
Fits easily in smaller chassis without sacrificing essential features, perfect for space-conscious builds in offices, studios, or home setups.
HDMI & DisplayPort Outputs
Provides flexible display connectivity right out of the box for systems without dedicated GPUs.
Intel 1Gb Ethernet
Ensures reliable wired networking for everyday use, including browsing, streaming, and remote work.
M.2 Key E Slot for Wi-Fi Expansion
Allows users to add a Wi-Fi module of their choice for flexible wireless connectivity when needed.
Comprehensive Cooling Support
Features multiple fan headers and temperature sensors to maintain system stability even under continuous operation.
ASUS Q-LED Diagnostic and BIOS FlashBack
Troubleshoot and update firmware effortlessly with user-friendly diagnostic tools and BIOS update options.
ASUS Armoury Crate Integration
Gives you intuitive control over fan profiles, system monitoring, and device configuration in one unified software suite.
At Eastern IT, we offer more than just components—we deliver confidence:
A complete eCommerce solution for IT products in Bangladesh.
Build your next-gen Intel system with the ASUS PRIME Z790M-PLUS D4 from Eastern IT and enjoy reliable, compact performance tailored for today’s users.
