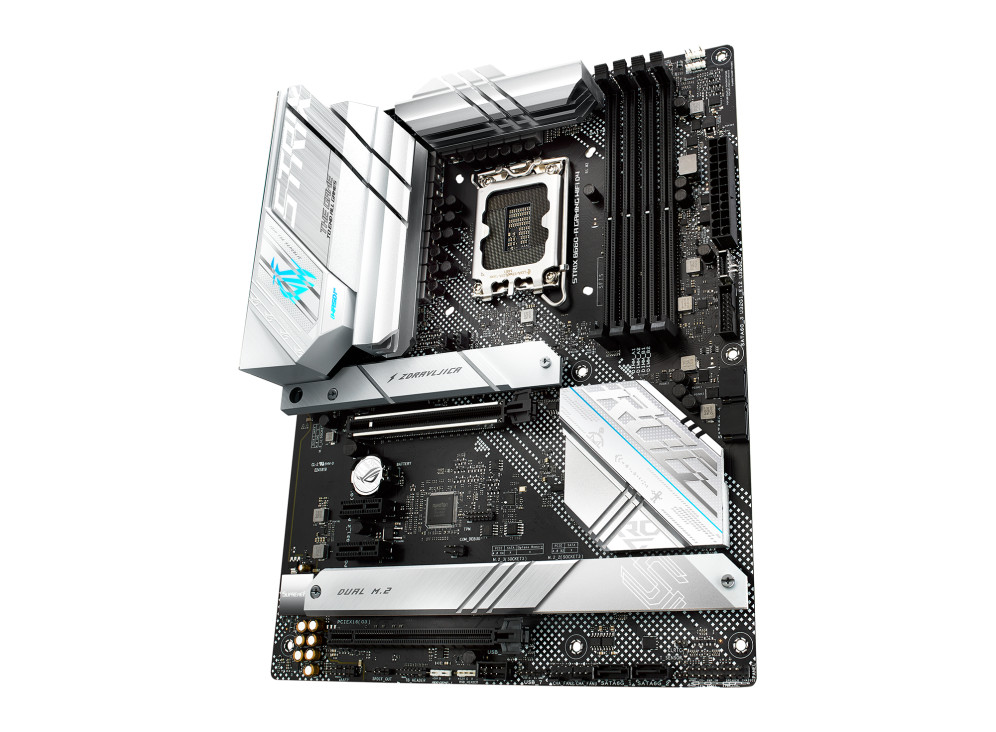

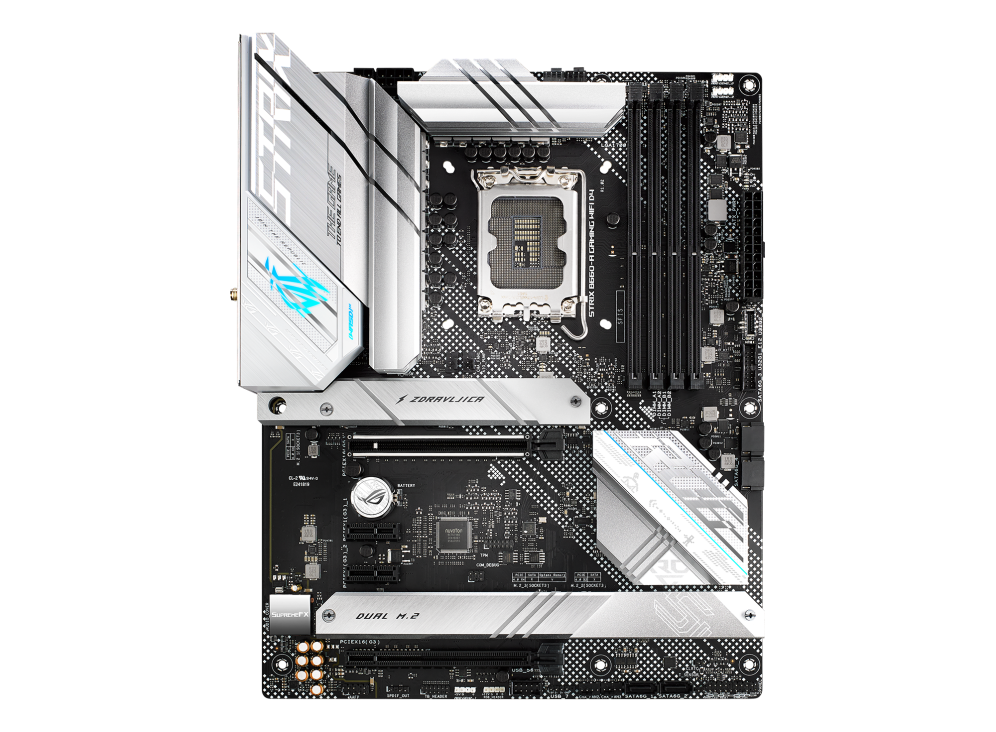

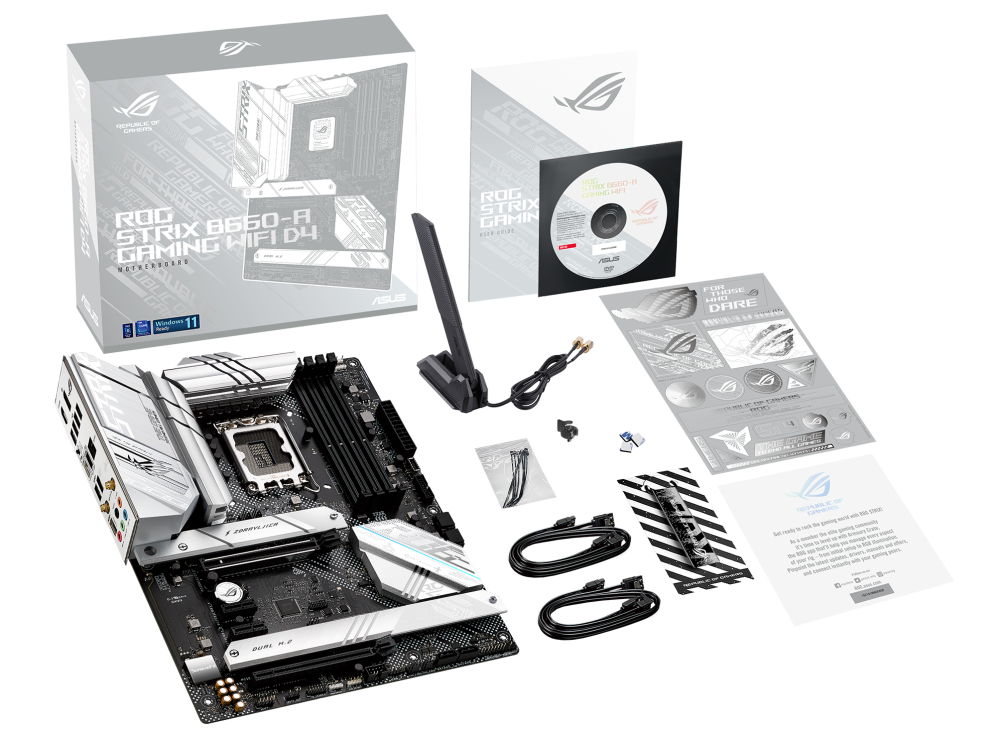

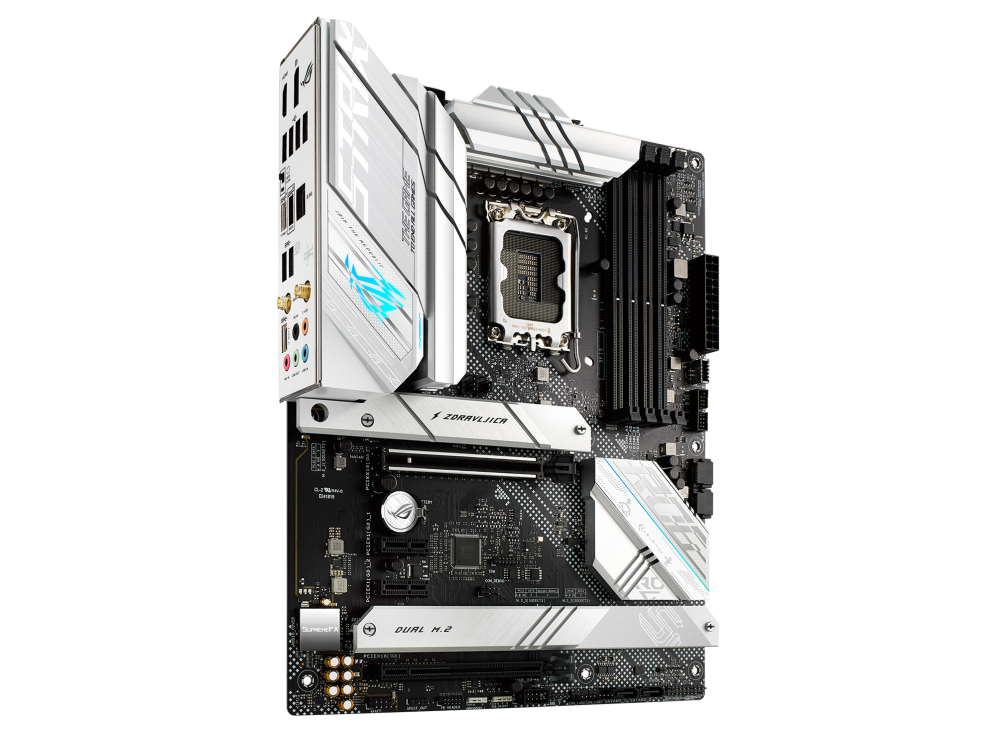

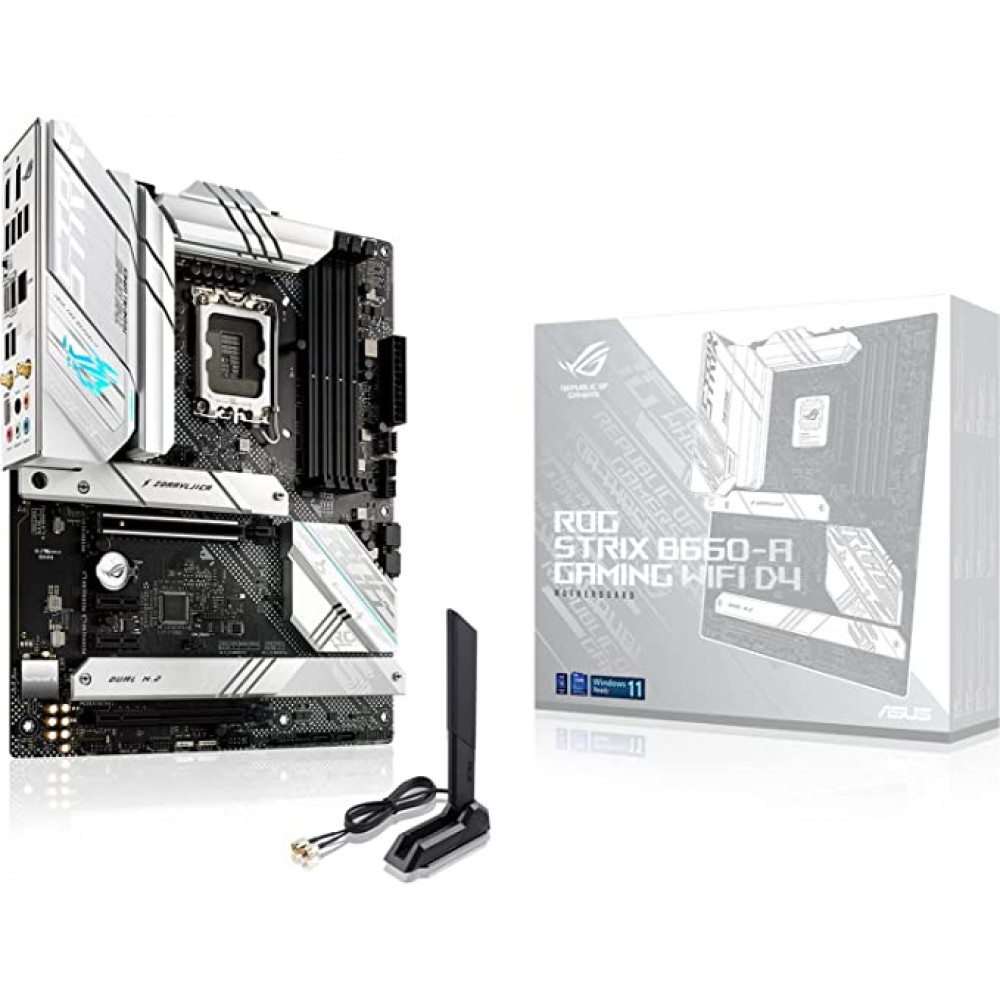

ASUS ROG Strix B660-A Gaming WiFi D4 DDR4 ATX Motherboard

Price: ৳26500

Regular Price: ৳29300

In Stock

Brand: Asus

MPN: 90MB18S0-M1AAY0

Key Features

Chipset - Intel B660

Sockets Supported - LGA1700

Supported CPU - Intel 12th, 13th, and 14th Gen Core processors, Pentium

Gold, and Celeron processors

Memory Slots - 4 × DDR4 DIMM (up to 128 GB, overclocking support up to 5333 MHz)

Graphics Output - 1 × HDMI 2.1 (up to 4K at 60Hz), 1 × DisplayPort 1.4 (up to 8K at 60Hz)

Special Price

৳26500

Regular Price

৳29300

Specification

Basic Information

Supported CPU	Intel 12th, 13th, and 14th Gen Core processors, Pentium Gold, and Celeron processors
Chipset	Intel B660
Form Factor	ATX (30.5 cm x 24.4 cm)
BIOS	256 MB Flash ROM, UEFI AMI BIOS with BIOS FlashBack support

Expansion Slots

PCI	1 x PCIe 5.0 x16 slot (CPU lanes, up to x16), 1 x PCIe 3.0 x16 slot (wired as x4 by chipset), 2 x PCIe 3.0 x1 slots (by chipset)

Memory

Type	DDR4, dual-channel
Slots	4 DIMM
Supported Memory	Up to DDR4-5333 (OC), DDR4-3200, DDR4-2133
Maximum Memory	128 GB

Graphics

1 x DisplayPort 1.4 (up to 8K@60 Hz), 1 x HDMI 2.1 (up to 4K@60 Hz)

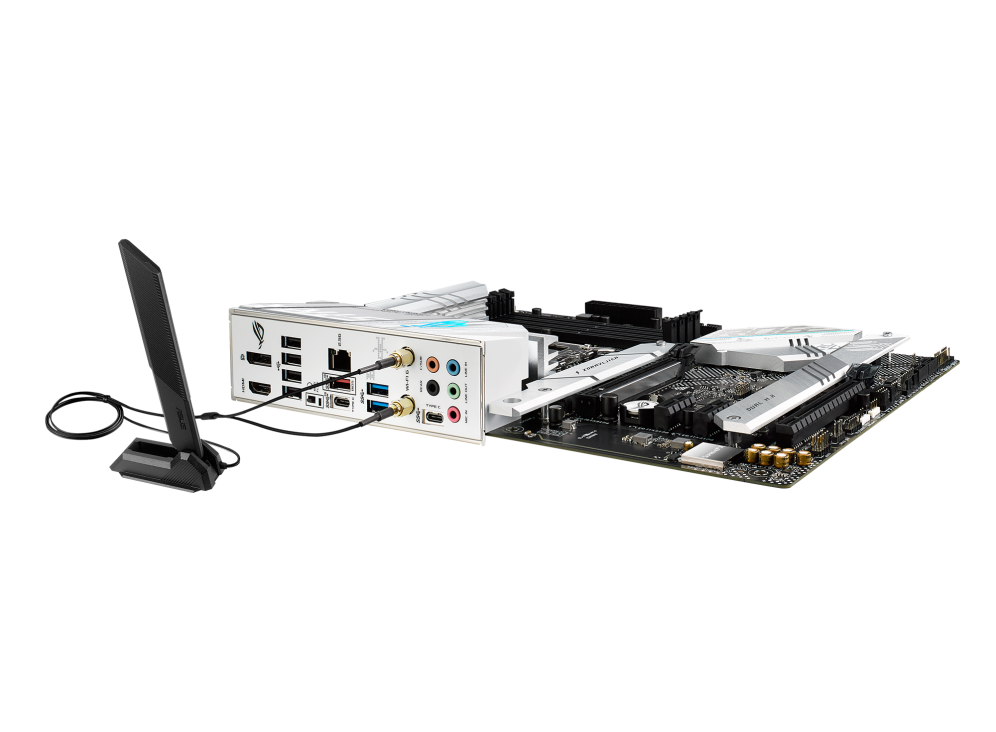

Connector & Ports

HDMI	1 x HDMI 2.1
USB	Rear: 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A; Internal headers: 1 x USB 3.2 Gen 2 header (Type-C capable), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
LAN Port	1 x Realtek 2.5Gb Ethernet
Internal I/O Ports	1 x 24-pin ATX main power, 1 x 8-pin CPU power, 1 x CPU fan header, 1 x CPU_OPT, 3 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 1 header (Type-C capable), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header
Supported Storage	3 x M.2 slots (Key M), 4 x SATA 6 Gb/s ports
Audio	Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC with Savitech SV3H712 Amplifier
Wireless Communication Module	Wi-Fi 6 (802.11ax), Bluetooth v5.2

Others

Special Features

ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), robust VRM heatsink, BIOS FlashBack button & LED, Aura Sync RGB, OptiMem II for improved memory OC, Armory Crate, AI Suite 3, Fan Xpert 2+, BIOS CrashFree, UEFI EZ Flash

Warranty Information

Warranty

3 Years

Basic Information

Supported CPU Intel 12th, 13th, and 14th Gen Core processors, Pentium Gold, and Celeron processors

Chipset Intel B660

Form Factor ATX (30.5 cm x 24.4 cm)

BIOS 256 MB Flash ROM, UEFI AMI BIOS with BIOS FlashBack support

Expansion Slots

PCI 1 x PCIe 5.0 x16 slot (CPU lanes, up to x16), 1 x PCIe 3.0 x16 slot (wired as x4 by chipset), 2 x PCIe 3.0 x1 slots (by chipset)

Memory

Type DDR4, dual-channel

Slots 4 DIMM

Supported Memory Up to DDR4-5333 (OC), DDR4-3200, DDR4-2133

Maximum Memory 128 GB

Graphics

Graphics 1 x DisplayPort 1.4 (up to 8K@60 Hz), 1 x HDMI 2.1 (up to 4K@60 Hz)

Connector & Ports

HDMI 1 x HDMI 2.1

USB Rear: 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A; Internal headers: 1 x USB 3.2 Gen 2 header (Type-C capable), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

LAN Port 1 x Realtek 2.5Gb Ethernet

Internal I/O Ports 1 x 24-pin ATX main power, 1 x 8-pin CPU power, 1 x CPU fan header, 1 x CPU_OPT, 3 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 1 header (Type-C capable), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header

Supported Storage 3 x M.2 slots (Key M), 4 x SATA 6 Gb/s ports

Audio Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC with Savitech SV3H712 Amplifier

Wireless Communication Module Wi-Fi 6 (802.11ax), Bluetooth v5.2

Others

Special Features ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), robust VRM heatsink, BIOS FlashBack button & LED, Aura Sync RGB, OptiMem II for improved memory OC, Armory Crate, AI Suite 3, Fan Xpert 2+, BIOS CrashFree, UEFI EZ Flash

Warranty Information

Warranty 3 Years

Description

ASUS ROG Strix B660-A Gaming WiFi D4 – Stylish DDR4 Power for Intel Gaming Builds

The ASUS ROG Strix B660-A Gaming WiFi D4 blends performance, aesthetics, and affordability for gamers building around Intel’s 12th, 13th, or 14th Gen processors. With DDR4 support, PCIe 5.0 readiness, and next-gen connectivity, it offers a premium experience without the premium price.

Key Features

Intel LGA1700 Socket with B660 Chipset
Supports Intel's 12th to 14th Gen Core, Pentium Gold, and Celeron CPUs—delivering strong, efficient performance for gaming, streaming, and creative workflows.

DDR4 Memory Support up to 5333 MHz (OC)
Offers high-speed memory performance using DDR4 DIMMs, allowing up to 128GB capacity. Perfect for builders who want stability, cost-efficiency, and speed.

PCIe 5.0 x16 Slot & PCIe 4.0 M.2 Support
Includes one PCIe 5.0 slot for future-ready GPUs and dual PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs—ensuring fast boot times and smooth game loads.

Robust Power Design with Thermal Enhancements
Features high-performance power stages, premium chokes, and VRM heatsinks to keep your system cool and stable during extended gaming sessions.

Wi-Fi 6 & Intel 2.5Gb Ethernet
Experience faster, more reliable online performance with built-in Wi-Fi 6 and a 2.5Gb LAN port—ideal for competitive gaming and high-speed streaming.

HDMI & DisplayPort Outputs
Integrated display outputs support 4K visuals and give flexibility for setups without a dedicated GPU.

High-Fidelity SupremeFX Audio
Crystal-clear sound with minimal distortion, backed by premium audio capacitors and software tools like Sonic Studio III—perfect for immersive gameplay and content creation.

DIY-Friendly Features: Q-LED, BIOS FlashBack
Troubleshoot and upgrade with ease using Q-LED indicators and BIOS FlashBack—no CPU needed for firmware updates.

ASUS Armoury Crate with Aura Sync RGB
Control lighting, monitor system status, and adjust performance settings through a unified, intuitive interface with full Aura Sync RGB support.
