| Supported CPU | AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670E |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| BIOS | 256 MB Flash ROM, UEFI AMI BIOS with FlashBack support |
| PCI | 1 x PCIe 5.0 x16 slot (CPU lanes, up to x16), 1 x PCIe 4.0 x16 slot (wired as x4 by chipset), 1 x PCIe 3.0 x1 slot (by chipset) |
| Type | DDR5, dual-channel |
| Slots | 4 DIMM |
| Supported Memory | Up to DDR5-6400+/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, EXPO supported |
| Maximum Memory | 128 GB |
| Graphics | 1 x DisplayPort 1.4 (up to 8K@60 Hz), 1 x HDMI 2.1 (up to 4K@60 Hz) |
| HDMI | 1 x HDMI 2.1 |
| USB | USB (rear): 1 x USB 3.2 Gen 2x2 Type-C, 7 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A; USB (internal headers): 1 x USB 3.2 Gen 2x2 header (Type-C capable), 1 x USB 3.2 Gen 1 front header, 2 x USB 2.0 headers |
| LAN Port | 1 x Intel I225-V 2.5Gb Ethernet |
| Internal I/O Ports | 1 x 24-pin ATX main power, 2 x 8-pin CPU power, 1 x CPU fan header, 1 x CPU_OPT, 5 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 2x2 header (Type-C capable), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header |
| Supported Storage | 2 x M.2 Key-M slots (PCIe 5.0 x4 for Ryzen 7000 Series), 2 x M.2 Key-M slots (PCIe 4.0 x4 via chipset), 4 x SATA 6 Gb/s ports (RAID 0/1/10 support) |
| Audio | Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC with Savitech SV3H712 Amplifier; rear jacks + front panel support |
| Wireless Communication Module | Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Bluetooth v5.2 |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), Robust VRM heatsink, BIOS FlashBack button & LED, Aura Sync RGB, OptiMem II for improved memory OC, Armory Crate, AI Suite 3, Fan Xpert 2+, BIOS CrashFree, UEFI EZ Flash |
| Warranty | 3 Years |

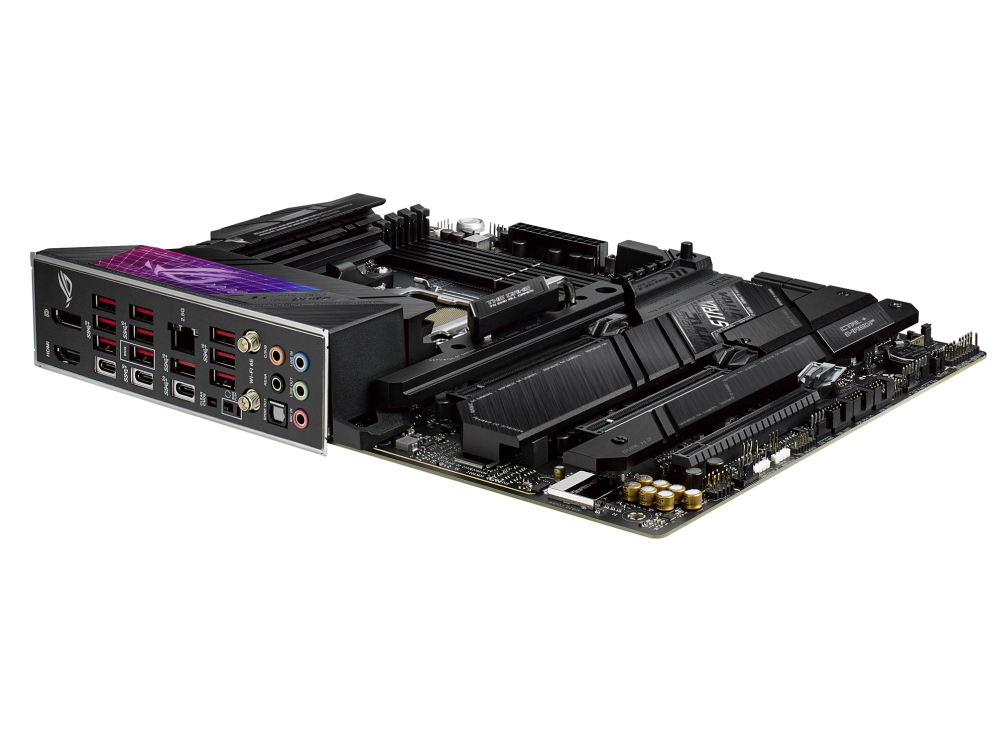

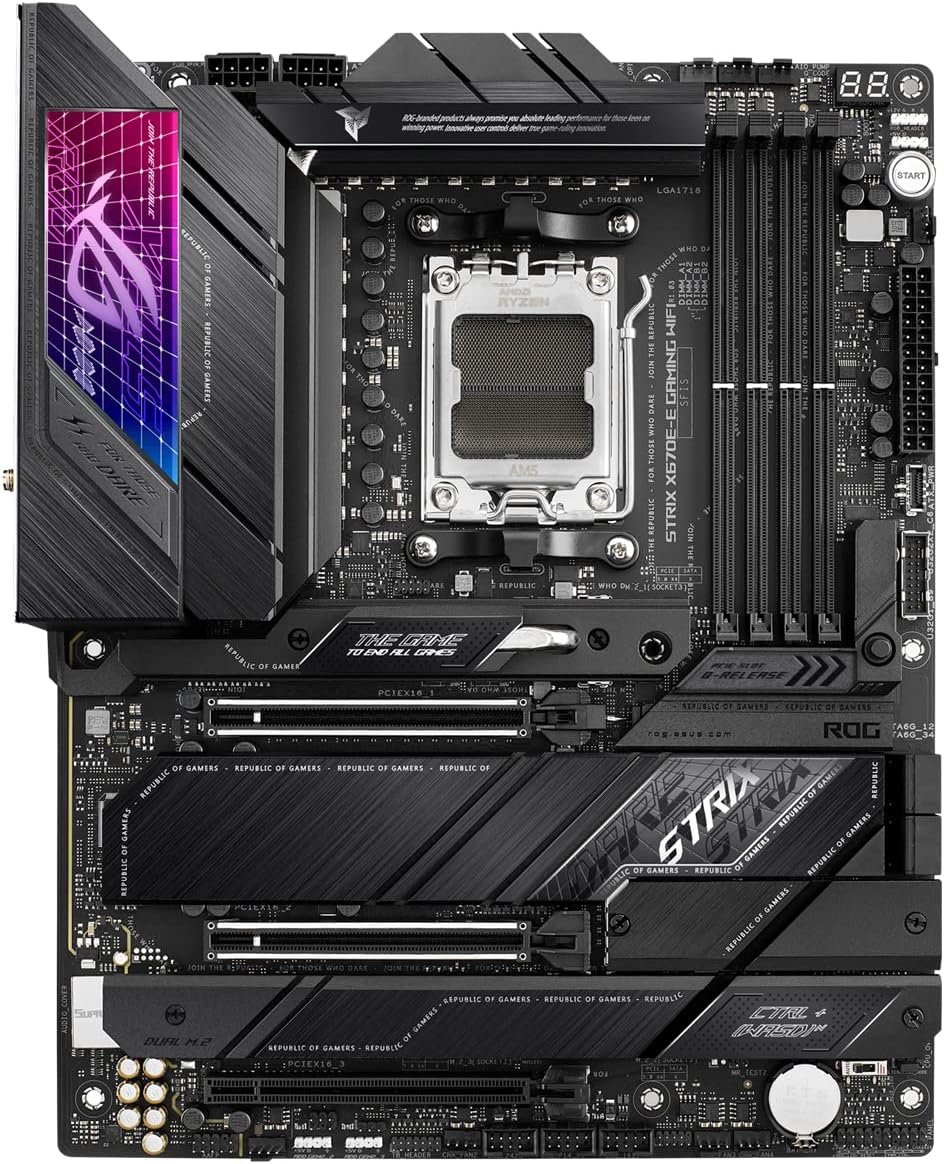

The ASUS ROG Strix X670E-E Gaming WiFi 6E is built for enthusiasts who demand nothing short of excellence from their AMD Ryzen 7000-based rigs. Designed with PCIe 5.0 across GPU and storage, ultra-fast DDR5 memory, and robust cooling and connectivity, this motherboard delivers top-tier performance for competitive gaming and high-end content creation.
AMD AM5 Socket with X670E Chipset
Built for AMD Ryzen 7000 Series desktop processors, this board takes full advantage of the X670E platform with PCIe 5.0 and DDR5 support—perfect for future-proofed builds.
DDR5 Memory Support up to 7600 MHz (OC)
Supports up to 128GB of high-speed DDR5 memory with AMD EXPO profiles for easy tuning. Experience smooth multitasking, faster load times, and high-bandwidth performance.
PCIe 5.0 x16 Slot & Dual PCIe 5.0 M.2 Slots
Offers full PCIe 5.0 bandwidth for next-gen GPUs and SSDs, delivering blazing-fast data transfer and game load speeds-ideal for gaming and intensive workloads.
18+2 Power Stages with Advanced Cooling
Features robust power architecture and oversized heatsinks to deliver stable performance under heavy CPU loads. Integrated thermal pads and M.2 heatsinks ensure long-lasting thermal efficiency.

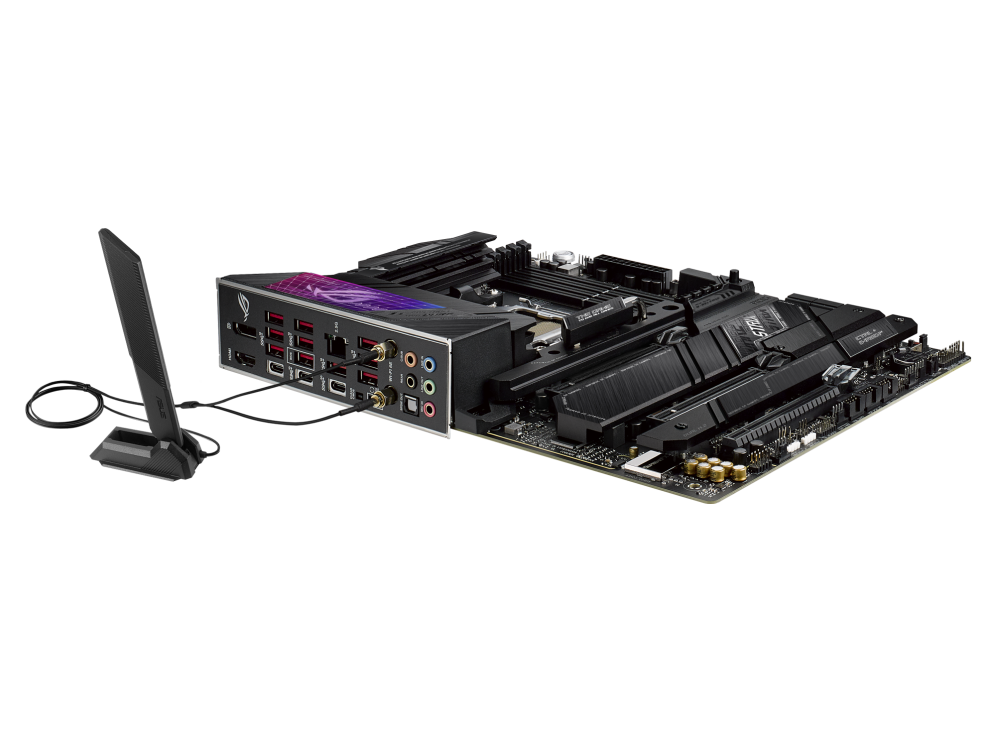

Wi-Fi 6E & Intel 2.5Gb Ethernet
Enjoy ultra-low latency and faster wireless speeds with Wi-Fi 6E, alongside reliable wired networking with Intel’s 2.5Gb Ethernet for seamless online gaming and streaming.
DisplayPort & HDMI Outputs
Provides flexible display options via integrated GPU—ideal for troubleshooting or setups without a discrete graphics card.
SupremeFX Audio with Sonic Studio III
Get immersive, distortion-free sound with premium audio shielding and tuning software, perfect for streamers and gamers alike.
Q-LED, BIOS FlashBack, Pre-mounted I/O
DIY-friendly features simplify the building experience. Update BIOS without CPU and diagnose setup issues quickly with Q-LED indicators.
ASUS Armoury Crate with Aura Sync
Unify RGB lighting, monitor system performance, and control fan curves through the intuitive Armoury Crate interface with full Aura Sync support.
At Eastern IT, we offer more than just components—we deliver confidence:
Build your dream AMD gaming system with the ASUS ROG Strix X670E-E Gaming WiFi 6E from Eastern IT-engineered for dominance.
