| Processor Type | Intel Core i5 |
| Chipset | Intel Z790 |
| Slots | 4 x DIMM |
| Supported Memory | Up to DDR5-7600+/6400/6200/6000/5800/5600/5400/5200/4800, ECC & non-ECC, EXPO supported |
| Maximum Memory | 128 GB |
| RAM Type | DDR5 |
| Graphics Output | 1 x DisplayPort 1.4 (up to 8K at 60 Hz), 1 x HDMI 2.1 (up to 4K at 60 Hz) |
| Supported CPU | Intel 12th, 13th, and 14th Gen Core processors, Pentium Gold, and Celeron processors (LGA1700 socket) |
| PCI | 1 x PCIe 5.0 x16 slot (CPU lanes, up to x16), 2 x PCIe 4.0 x 16 slots (wired as x4 by chipset), 1 x PCIe 3.0 x1 slot (by chipset) |
| USB | Rear: 1 x USB 3.2 Gen 2 x 2 Type-C, 6 x USB 3.2 Gen 2 Type A, 1 x USB 3.2 Gen 1 Type A, 2 x USB 2.0 Type A; Internal: 1 x USB 3.2 Gen 2x2 header (Type C), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Internal I/O Ports | 1 x 24 pin ATX main power, 2 x 8 pin CPU power, 1 x CPU fan header, 1 x CPU OPT, 5 x chassis fan headers, 1 x AIO pump header, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AA |
| Supported Storage | 1 x M.2 Key M slot (PCIe 5.0 x4 for CPU lanes), 4 x M.2 Key M slots (PCIe 4.0 x4 via chipset), 4 x SATA 6 Gb per s ports |
| Wireless Communication module | Wi-Fi 6E (802.11), Bluetooth v5.2 |
| Special Features | ASUS 5X PROTECTION III, Q-Design tools |
| Brand | Asus |
| CPU Sockets | LGA1700 |

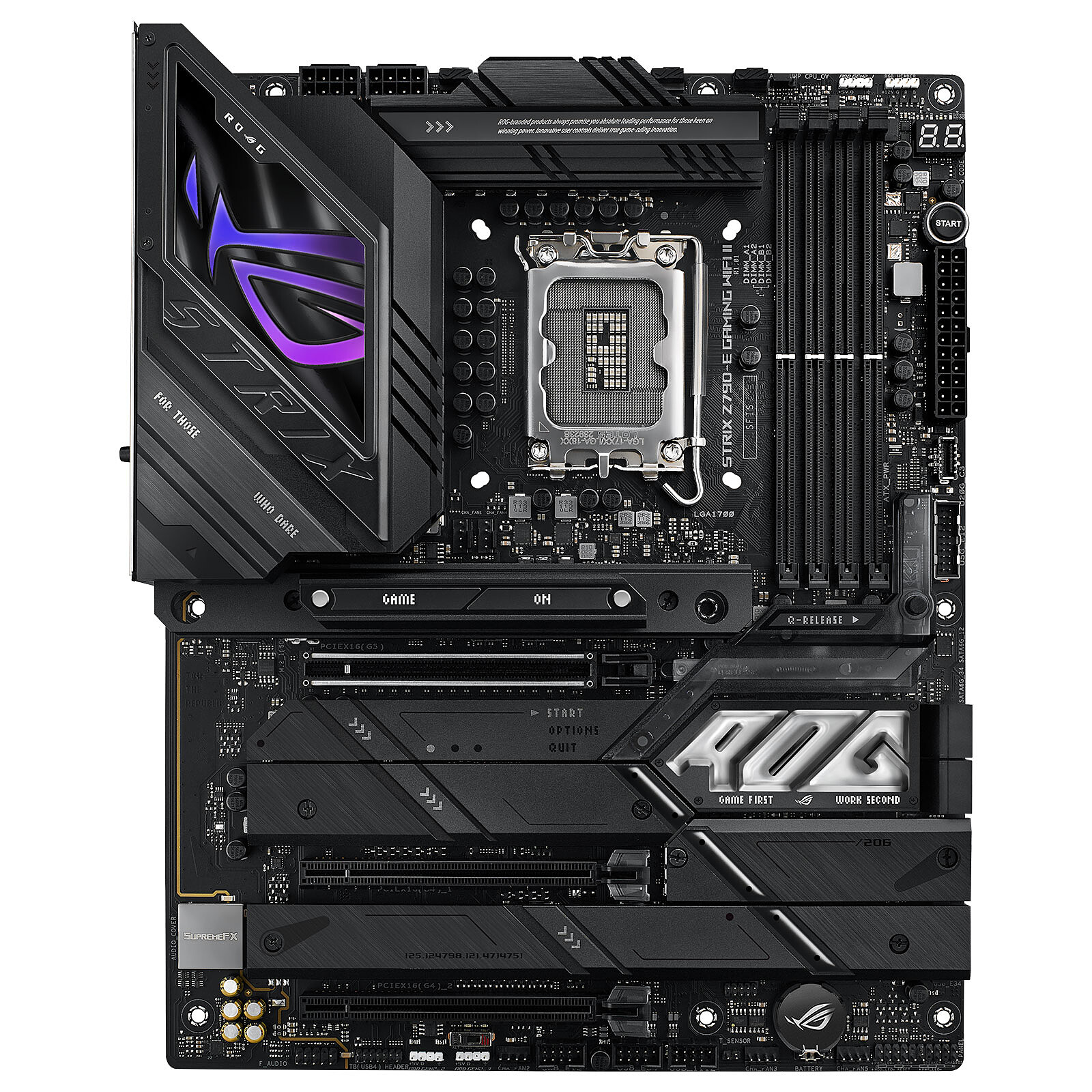

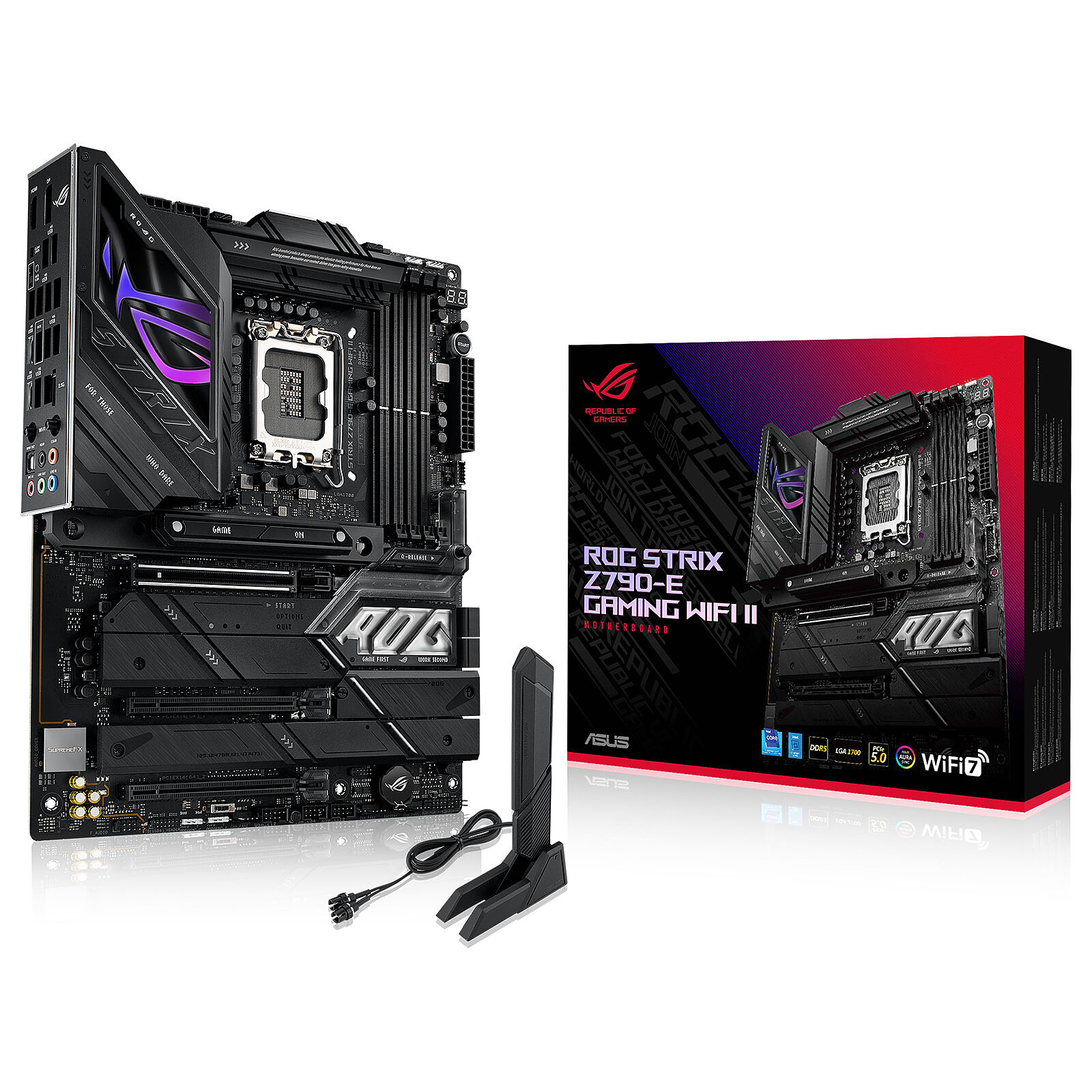

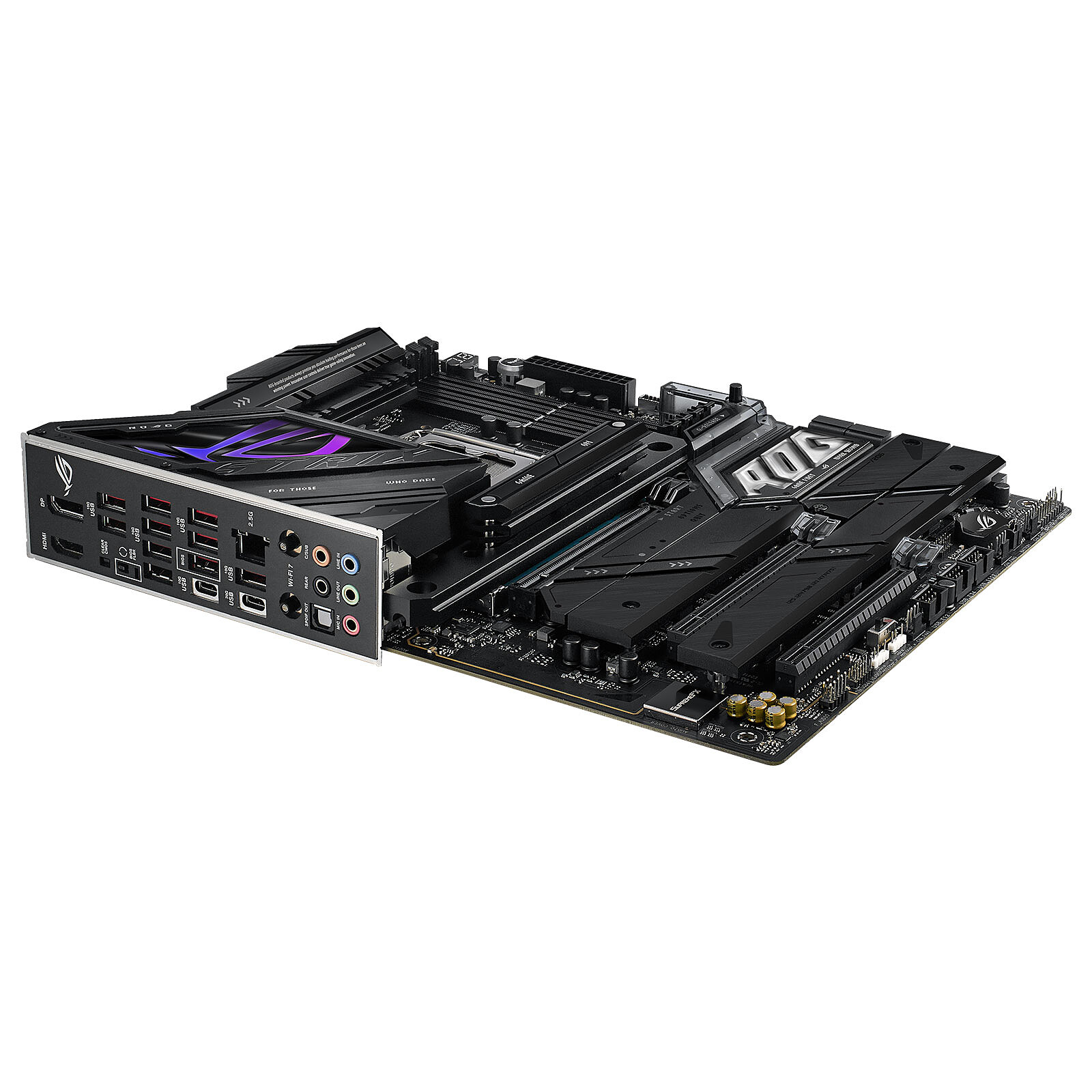

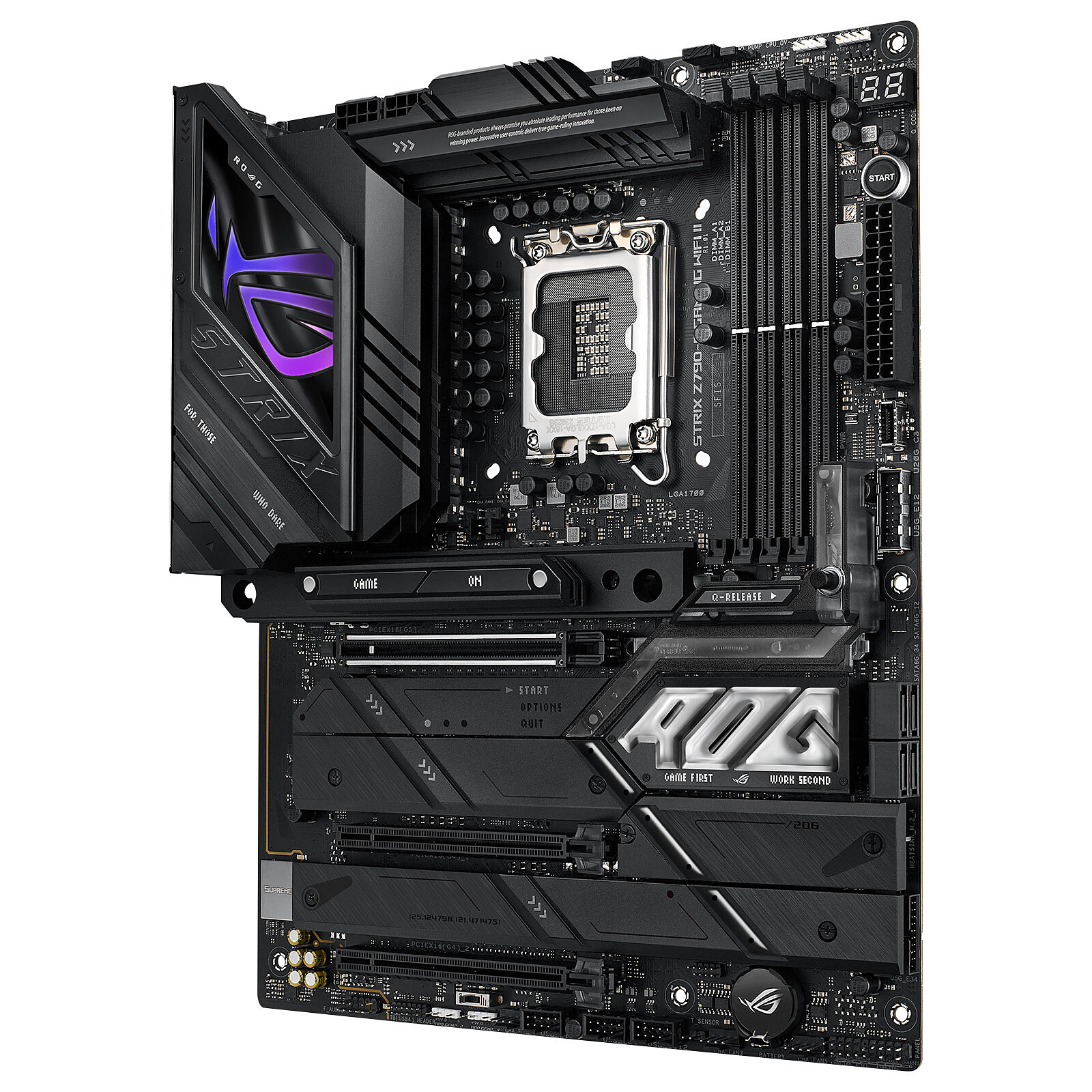

The ASUS ROG Strix Z790-E Gaming WiFi is a high-performance ATX motherboard designed for Intel's 12th, 13th, and 14th Gen Core processors (LGA 1700 socket). Built on the Intel Z790 chipset, it offers advanced features tailored for gamers, content creators, and PC enthusiasts.
Processor Support: Compatible with Intel Core 12th, 13th, and 14th Gen processors (LGA 1700).
Memory Support: Supports up to 128GB of DDR5 memory, with speeds up to 7800MHz (OC).
Expansion Slots:
1 x PCIe 5.0 x16 SafeSlot (CPU)
2 x PCIe 4.0 x16 slots (PCH, at x4 mode)
1 x PCIe 4.0 x1 slot
Storage Options:
1 x M.2 22110 (PCIe 5.0 x4)
3 x M.2 2280 (PCIe 4.0 x4)
1 x M.2 2280 (PCIe 4.0 x4 & SATA)
6 x SATA 6Gb/s ports
Networking:
1 x 2.5Gb Ethernet
Intel Wi-Fi 7 (802.11 a/b/g/n/ac/ax)
Bluetooth v5.3
USB Ports:
1 x USB 3.2 Gen 2x2 Type-C®
2 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x USB 3.2 Gen 2x2 front-panel connector with PD 3.0 up to 60W
Video Outputs:
1 x HDMI® port
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Cooling Solutions:
VRM heatsinks with high-quality thermal pads
M.2 heatsinks
Hybrid fan headers
Fan Xpert 4 utility in Armoury Crate
Lighting: Aura Sync RGB lighting with addressable Gen 2 headers
Form Factor: ATX (12 x 9.6 inches)
The ASUS ROG Strix Z790-E Gaming WiFi motherboard is an excellent choice for users seeking a reliable and feature-rich platform for building high-performance systems.
