Chipset | AMD B650 |
Slots | 4 x DIMM |
Supported Memory | Up to DDR5-7600 + (OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800, ECC & non-ECC, Un-buffered Memory |
Maximum Memory | 192 GB |
RAM Type | DDR5 |
Graphics | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
Supported CPU | AM5 socket, Ryzen 7000, 8000, and 9000 Series |
PCI | 1 x PCIe 5.0 x 16 slot (CPU lanes, up to x16), 1 x PCIe 4.0 x 16 slot (wired as x 4 by chipset), 1 x PCIe 4.0 x 1 slot (by chipset) |
USB | USB (rear): 1 x USB 3.2 Gen 2 x 2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A, USB (internal headers): 1 x USB 3.2 Gen 2 x 2 header (Type-C capable), 1 x USB 3.2 Gen 1 front header, 2 x USB 2.0 headers |
Supported Storage | 1 x M.2 Key-M slot (PCIe 5.0 x4 for Ryzen 7000 Series), 1 x M.2 Key-M slot (PCIe 4.0 x4 via chipset), 4 x SATA 6 Gb/s ports (RAID 0/1/10 support) |
Wireless Communication module | N/A |
Special Features | ASUS 5 x PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O) Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core) Robust VRM heatsink BIOS FlashBack button & LED Aura Sync RGB OptiMem II for improved memory OC Ar |
Processor Type | AMD |
Brand | Asus |
CPU Sockets | AM5 |

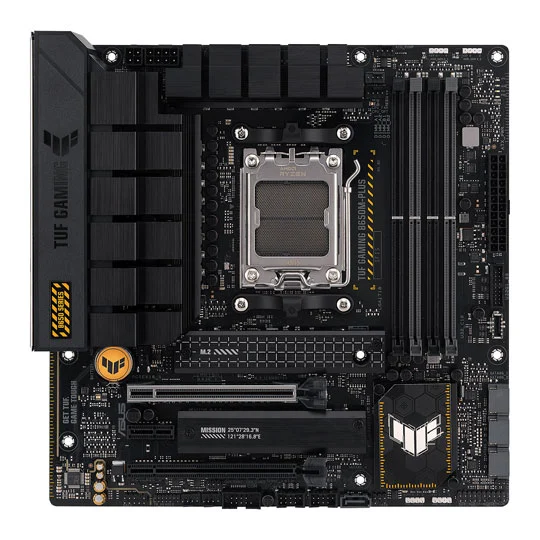

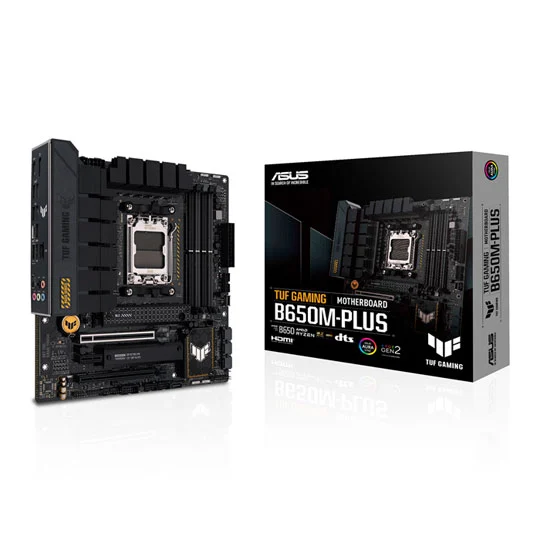

The ASUS TUF GAMING B650M-PLUS is a compact yet powerful Micro ATX motherboard designed for AMD Ryzen™ 7000 Series processors. Built on the AM5 platform with the B650 chipset, it offers a balance of performance, durability, and essential features for high-end gaming and productivity tasks.
Processor Support: Compatible with AMD Ryzen™ 7000 Series processors (AM5 socket).
Memory Support: Supports up to 128GB of DDR5 memory with speeds ranging from 4800MHz to 7600MHz (OC).
Expansion Slots:
1 x PCIe 4.0 x16 slot (CPU)
1 x PCIe 4.0 x16 slot (PCH, at x4 mode)
1 x PCIe 4.0 x1 slot
Storage Options:
1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Networking:
1 x Realtek 2.5Gb Ethernet
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth v5.2

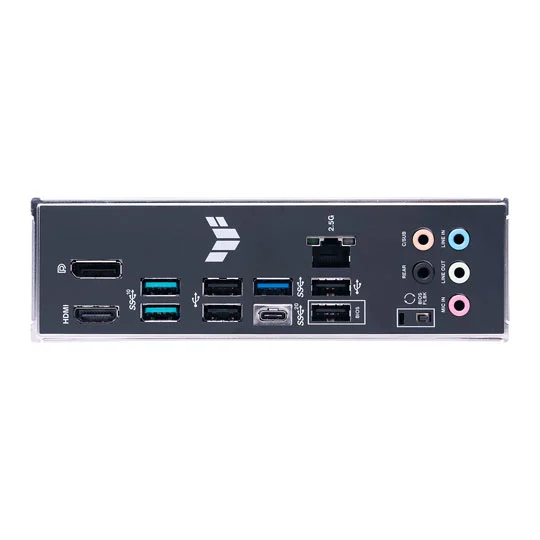

USB Ports:
1 x USB 3.2 Gen 2x2 Type-C®
2 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
Video Outputs:
1 x DisplayPort
1 x HDMI® port
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Cooling Solutions:
VRM heatsinks with high-quality thermal pads
M.2 heatsinks
Hybrid fan headers
Fan Xpert 4 utility in Armoury Crate
Lighting: Aura Sync RGB lighting with addressable Gen 2 headers
Form Factor: Micro ATX (9.6 x 9.6 inches)
The ASUS TUF GAMING B650M-PLUS motherboard is an excellent choice for users seeking a reliable and feature-rich platform for building high-performance systems in a compact form factor.
