Type | GDDR7 |
Size | 16GB |
Resolution | 7680 x 4320 |
Core Clock | Base Mode: 2572 MHz |
Memory Clock | 28 Gb/s |
BUS Type | 128 bit |
Memory Interface | PCI Express 5.0 x 16 |
CUDA Cores | 4608 |
Display Port | DisplayPort 2.1b x 3 |
HDMI | HDMI 2.1b x 1 |
Connectors | 8 pin x 1 |
Recommended PSU | 650W |
Multi Display | 4 |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Dimensions | L=208 W=120 H=40 mm |
Others | PCB Form: ATX |
Manufacturing Warranty | 3 years |

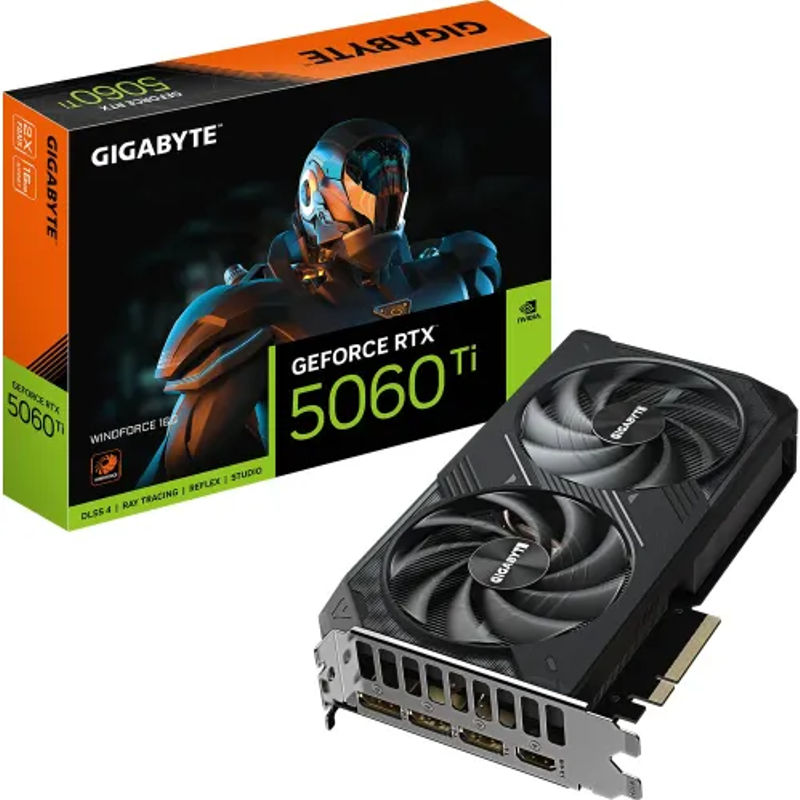

Looking for a compact yet potent GPU that delivers smooth 1440p gameplay and creative performance while fitting cleanly in small-form-factor builds and staying cost-effective? The GIGABYTE GeForce RTX 5060 Ti WINDFORCE 16G offers NVIDIA’s Blackwell architecture, DLSS 4 with MFG, efficient cooling, and solid modern connectivity, all within a sleek, dual-slot design.
At its core is the NVIDIA RTX 5060 Ti GPU, built on Blackwell architecture and equipped with 4th-generation RT Cores and 5th-generation Tensor Cores, harnessing DLSS 4 (including Multi-Frame Generation), NVIDIA Reflex 2, and NVIDIA Studio tools for exceptional AI-accelerated performance and ray tracing. GIGABYTE+1NVIDIA
This WINDFORCE model is factory overclocked, running at a boost clock of 2,587 MHz, offering a slight performance edge over the reference model’s 2,572 MHz. GIGABYTEB&H Photo Video
Memory-wise, it packs a generous 16 GB of GDDR7 on a 128-bit interface, delivering bandwidth around 448 GB/s, optimal for high-resolution textures and future-ready workloads. Tom's HardwareWikipediaB&H Photo Video

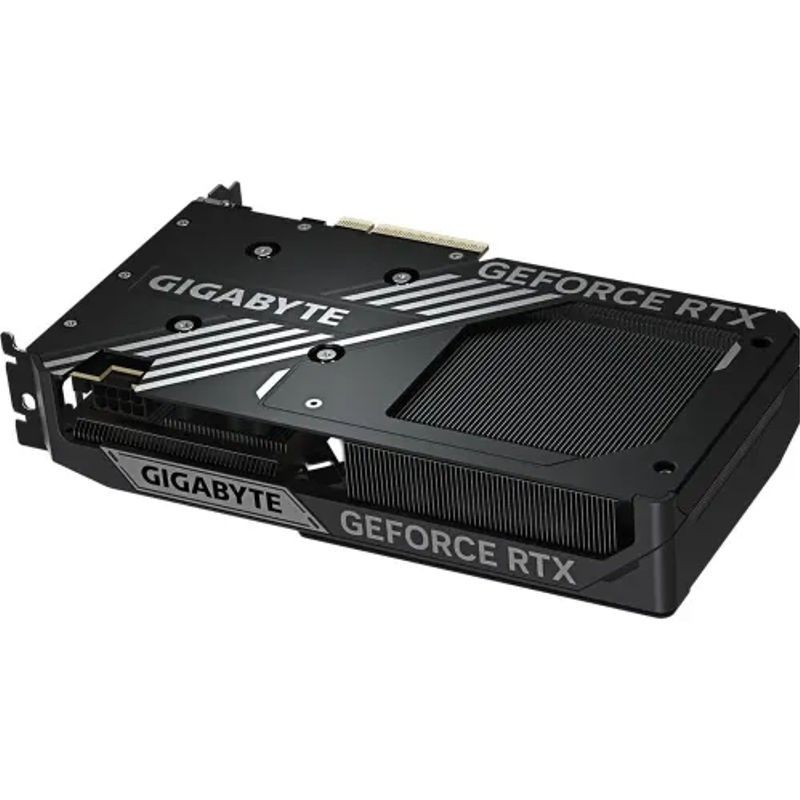

The WINDFORCE cooling system includes dual Hawk fans, server-grade thermal conductive gel, composite heat pipes, and a reinforced structure—ensuring efficient heat dissipation with minimal noise. GIGABYTEB&H Photo Video
Connectivity includes 1× HDMI 2.1b and 3× DisplayPort 2.1b outputs, support for multiple displays, and a PCIe 5.0 x8 interface that ensures broad compatibility with modern platforms. Newegg.comB&H Photo Video
Physically, the card spans 208 mm × 120 mm × 40 mm (~8.2″ long), fitting standard dual-slot configurations, and comes with a 3-year limited warranty. Newegg.comMicro Center
