| Supported CPU | AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors |
| Chipset | AMD X670E |
| Form Factor | ATX (12 Inch x 9.6 Inch / 30.5 x 24.4 cm) |
| BIOS | UEFI AMI BIOS with FlashBack support |
| PCI | 1 x PCIe 5.0 x16 slot (CPU lanes, up to x16), 1 x PCIe 4.0 x16 slot (wired as x4 by chipset), 1 x PCIe 3.0 x1 slot (by chipset) |
| Type | DDR5, dual-channel |
| Slots | 4 x DIMM |
| Supported Memory | Up to DDR5-6400+(OC)/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, Un-buffered Memory |
| Maximum Memory | 128 GB |
| Graphics Output | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| HDMI/DisplayPort | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| USB | Rear: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A; Internal: 1 x USB 3.2 Gen 2x2 header (Type-C capable), 1 x USB 3.2 Gen 1 front header, 2 x USB 2.0 headers |
| LAN Port | 1 x Realtek 2.5Gb Ethernet |
| Internal I/O Ports | 1 x 24-pin ATX, 1 x 8-pin CPU, 1 x CPU fan header, 1 x CPU_OPT, 3 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 1 header (Type-C capable), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 20-3 pin System Panel header |
| Supported Storage | 1 x M.2 Key-M slot (PCIe 5.0 x4 for Ryzen 7000 Series), 1 x M.2 Key-M slot (PCIe 4.0 x4 via chipset), 4 x SATA 6 Gb/s ports (RAID 0/1/10 support) |
| Audio | Realtek S1220A 7.1-channel High Definition Audio CODEC with DTS Audio Processing |
| Wireless Communication Module | Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Bluetooth v5.2 |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), Robust VRM heatsink, BIOS FlashBack button & LED, Aura Sync RGB, OptiMem II, Armory Crate, AI Suite 3, Fan Xpert 2+, BIOS CrashFree, UEFI EZ Flash |
| Warranty | 3 Years |

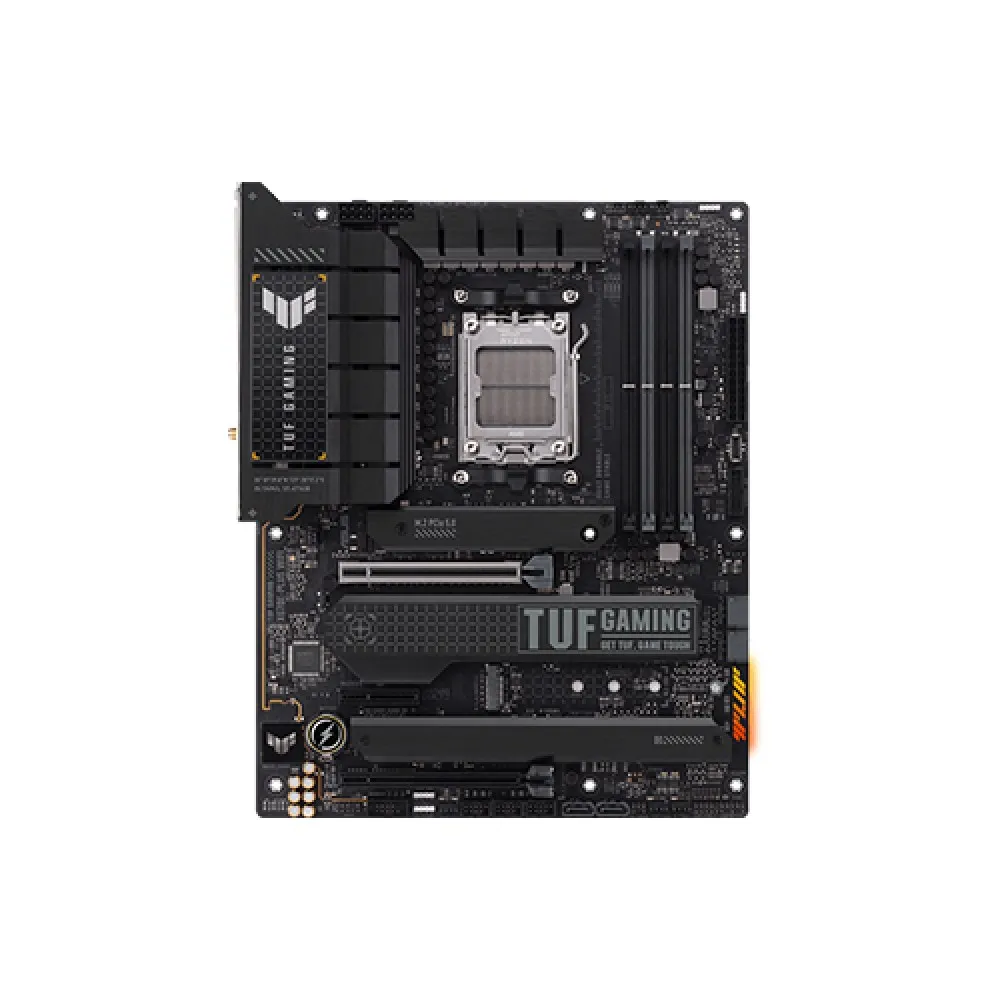

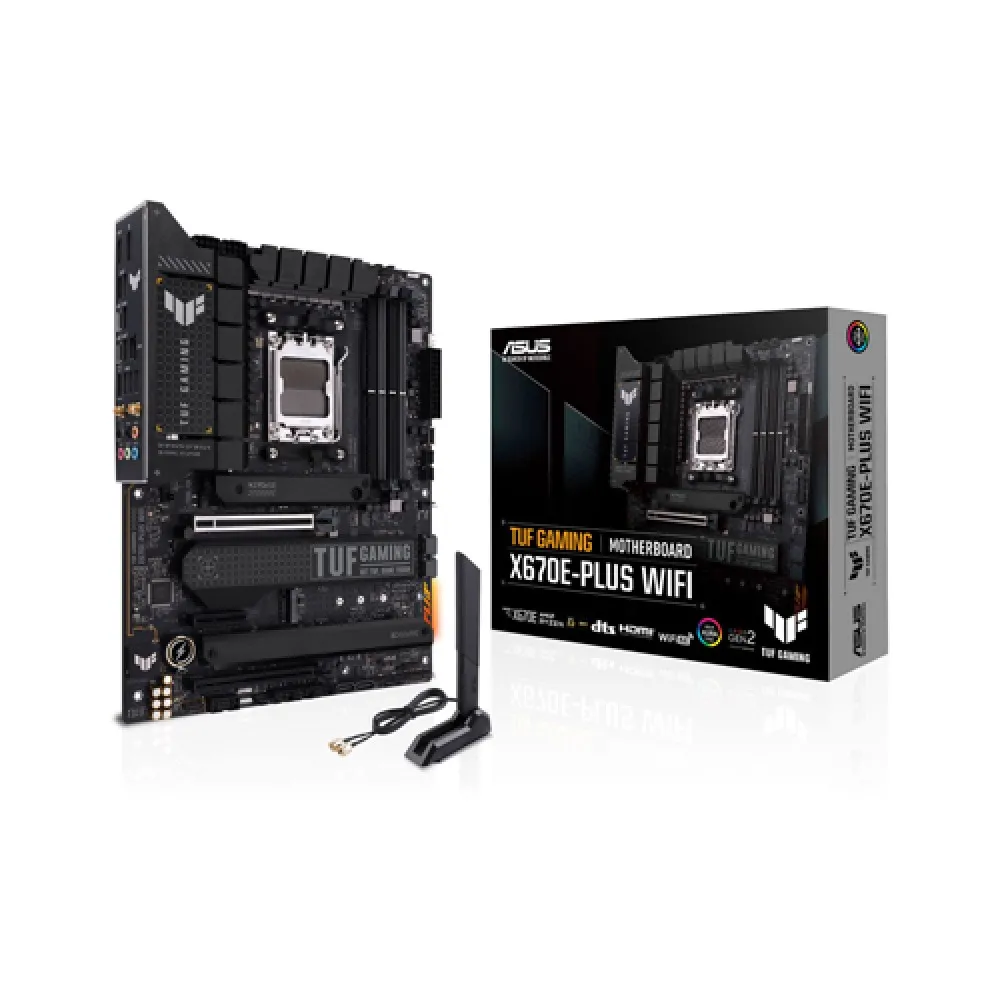

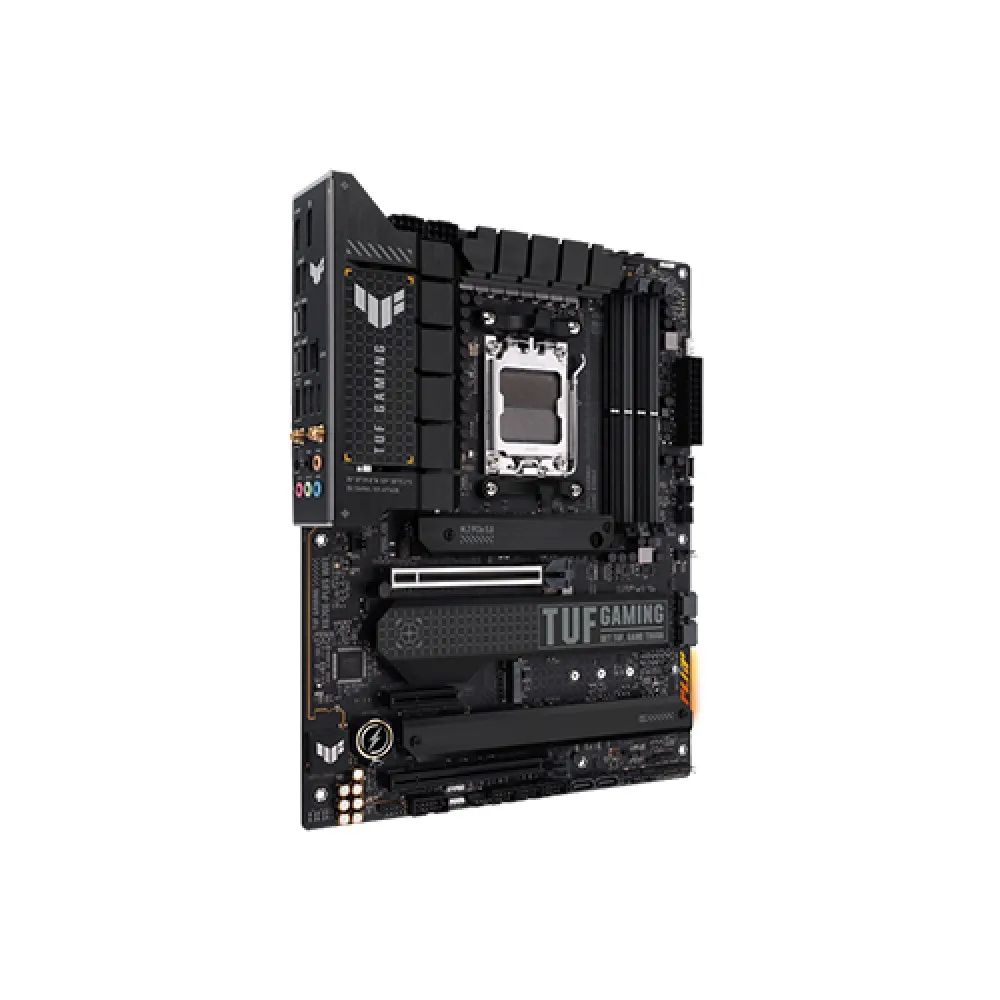

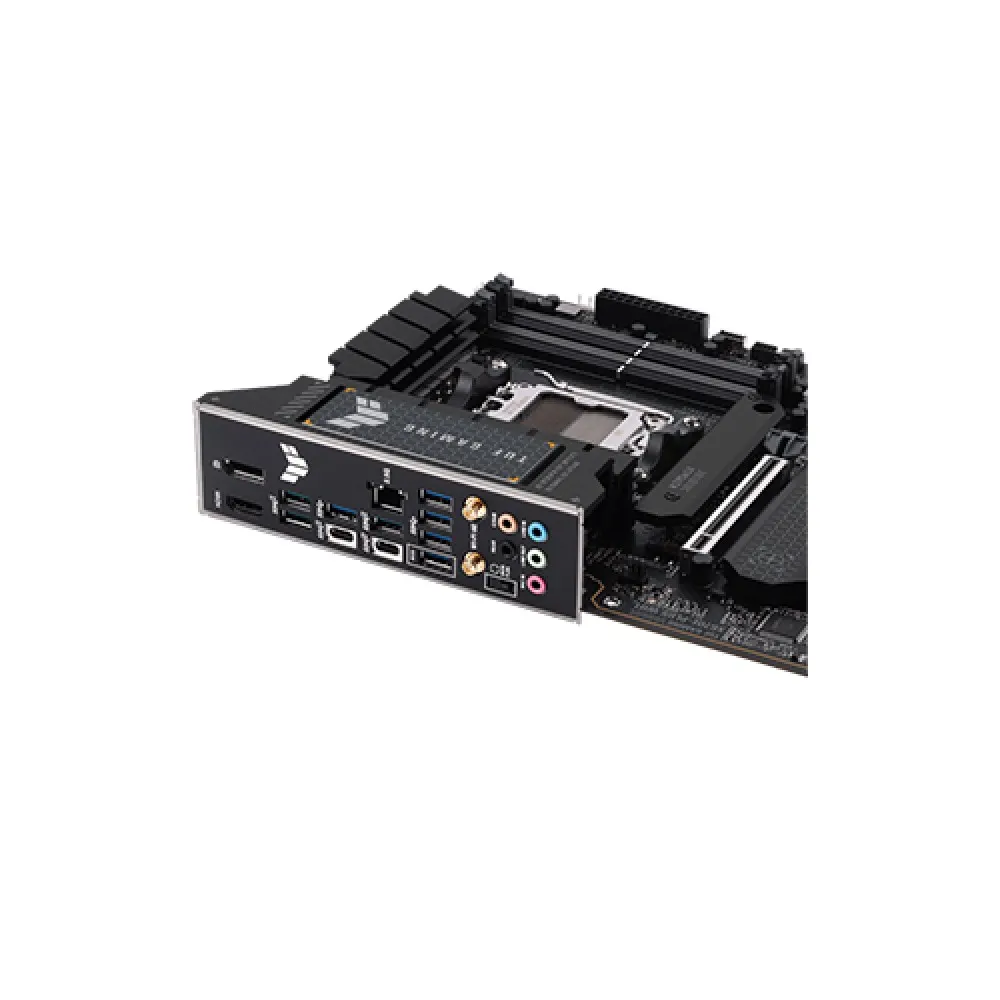

The ASUS TUF GAMING X670E-PLUS WIFI brings military-grade durability, robust power delivery, and next-gen connectivity to your AMD Ryzen 7000, 8000, and 9000 Series desktop builds. With support for DDR5 memory, PCIe 5.0, and Wi-Fi 6E, this ATX motherboard is built to deliver high-performance computing for gamers and creators who value stability and speed.
AM5 Socket with AMD X670E Chipset
Designed for AMD Ryzen 7000, 8000, and 9000 Series processors, the X670E platform ensures future-ready performance with DDR5 and PCIe 5.0 support for ultra-fast gaming and productivity.
DDR5 Memory Support up to 6400 MHz (OC)
Supports up to 128GB of DDR5 RAM with overclocking capabilities—ideal for multitasking, 3D rendering, streaming, and high-speed applications.
PCIe 5.0 Expansion for GPU & Storage
Equipped with a PCIe 5.0 x16 slot and high-speed PCIe 5.0 M.2 support, this board enables blazing-fast graphics performance and NVMe storage for top-tier responsiveness.
14+2 DrMOS Power Stages & Enhanced Cooling
Delivers stable power to high-core-count CPUs using premium components. Large VRM heatsinks, thermal pads, and M.2 heatsinks help manage temperatures during extended workloads or intense gaming.
Wi-Fi 6E & Realtek 2.5Gb Ethernet
Enjoy smooth, uninterrupted connectivity with next-gen Wi-Fi 6E support and fast wired networking via Realtek 2.5Gb LAN perfect for gaming, streaming, and cloud workloads.
HDMI & DisplayPort Outputs
Integrated graphics support via HDMI and DisplayPort allows easy setup and diagnostics without a dedicated GPU.
TUF Gaming Audio with DTS Support
High-quality audio components and shielding reduce noise for immersive gaming and entertainment experiences.
DIY-Friendly Features: BIOS FlashBack & Q-LED
Easily update your BIOS without a CPU and diagnose system issues with onboard Q-LED indicators—perfect for beginners and pros alike.
ASUS Armoury Crate with Aura Sync RGB
Control fan speeds, monitor system stats, and sync RGB lighting across your build through Armoury Crate with full Aura Sync support.
At Eastern IT, we offer more than just components—we deliver confidence:
A complete eCommerce solution for IT products in Bangladesh
Build your next-gen AMD desktop with the ASUS TUF GAMING X670E-PLUS WIFI from Eastern IT—engineered for performance, built to last.
